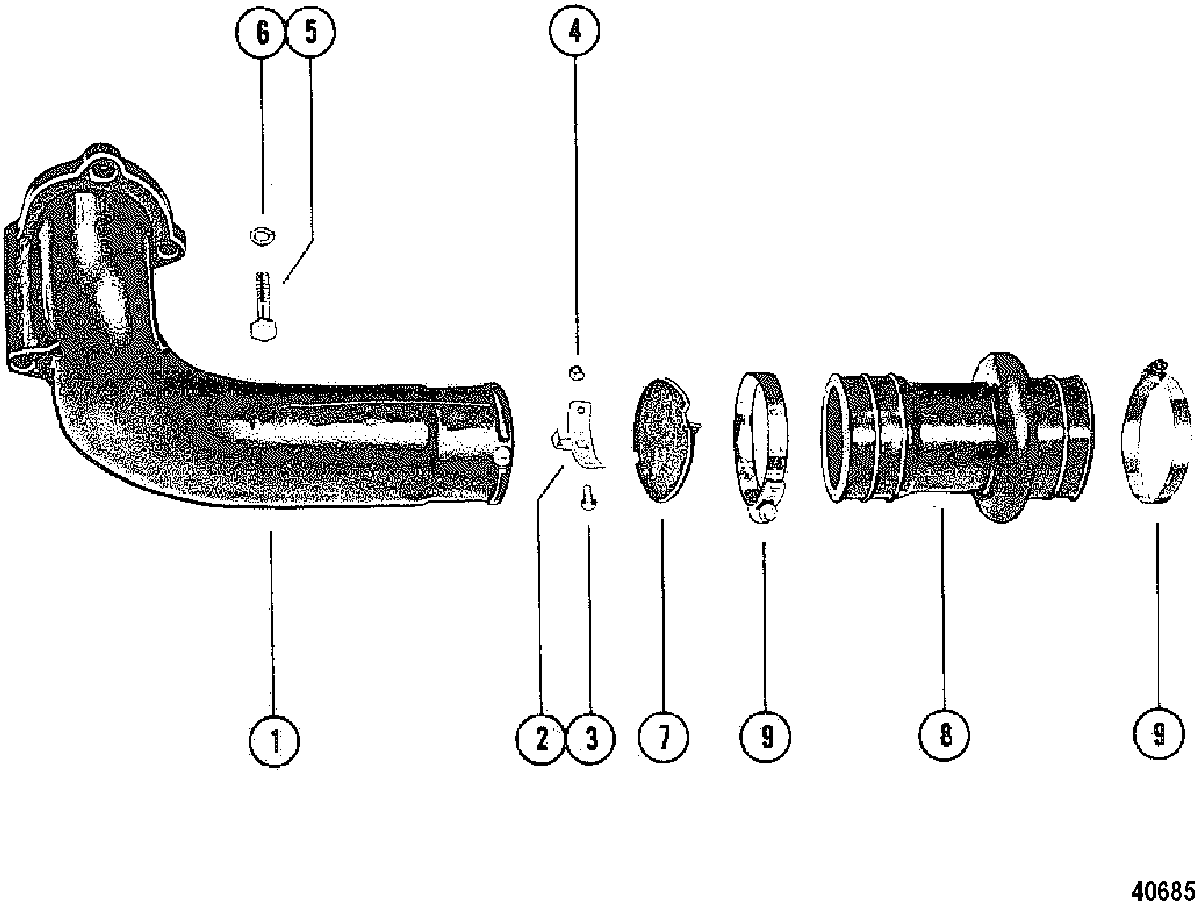

Exhaust Elbow Assembly(MCM) для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1980-1982 5520115 THRU 6218036

  • №
    Артикул
    Название
  • 1
    72082A2 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 2
    72264A1 BRACKET, Support - Water Sealing
    BRACKET, Support - Water Sealing
  • 3
    10-37655 SCREW, (#10-32 x .500), Support Bracket to Exhaust Elbow
    SCREW, (#10-32 x .500), Support Bracket to Exhaust Elbow
  • 4
    11-859124 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 5
    10-35787 SCREW, (.375-16 x 2.250), Exhaust Elbow to Gimbal Housing
    SCREW, (.375-16 x 2.250), Exhaust Elbow to Gimbal Housing
  • 6
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 7
    45586 SHUTTER, Water, Exhaust Elbow
    SHUTTER, Water, Exhaust Elbow
  • 8
    70981A3 BELLOWS, Exhaust Elbow to Engine
    BELLOWS, Exhaust Elbow to Engine
  • 9
    54-815504372 CLAMP, Bellows Attaching (LARGE)
    CLAMP, Bellows Attaching (LARGE)
  • 9
    54-815504456 CLAMP, Bellows Attaching (SMALL)
    CLAMP, Bellows Attaching (SMALL)
