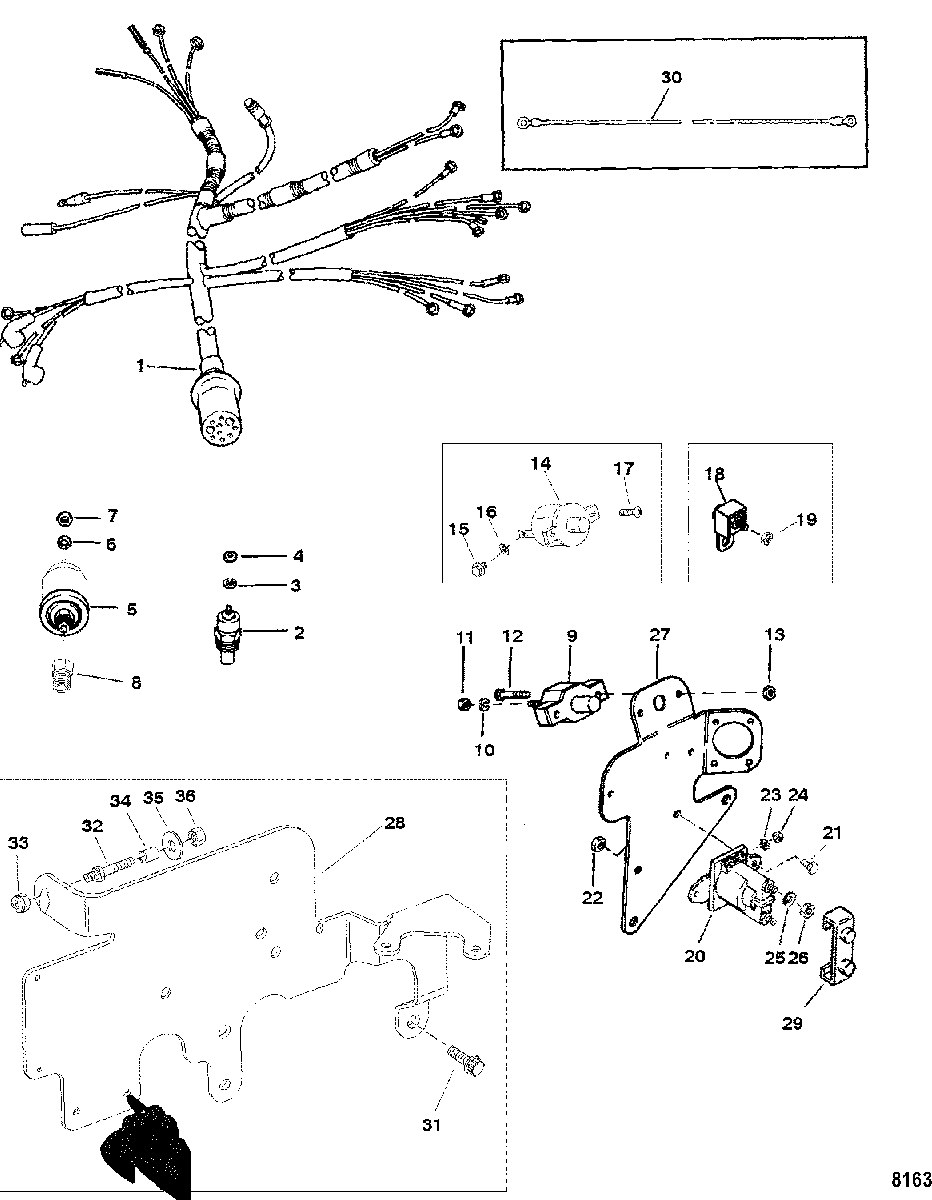

Wiring Harness and Electrical Components для Mercruiser - 3.0LX GM 181 I/L4 1996-1997 0F604000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    84-806217A11 HARNESS ASSEMBLY, Engine Wiring
    SN# 0K999999 & Below
    HARNESS ASSEMBLY, Engine Wiring
    SN# 0K999999 & Below
  • 1
    84-861413A2 HARNESS ASSEMBLY, Engine
    SN# 0L010042 & Up
    HARNESS ASSEMBLY, Engine
    SN# 0L010042 & Up
  • N/S
    84-817374A01 CONNECTOR, Delco EST Distributor (Timing)
    CONNECTOR, Delco EST Distributor (Timing)
  • 2
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 2
    49734 SENDER ASSEMBLY, Water Temperature
    (Dual)
    SENDER ASSEMBLY, Water Temperature
    (Dual)
  • 3
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 4
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 5
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 5
    37293T SENDER ASSEMBLY, Oil Pressure
    (Dual)
    SENDER ASSEMBLY, Oil Pressure
    (Dual)
  • 6
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 7
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 8
    22-32974 FITTING, (.125-27) Adaptor
    FITTING, (.125-27) Adaptor
  • 9
    88-11178A01 BREAKER, Circuit - 50 Ampere (50 Amp)
    (Breaker With Nut Connections) SN# 0K999999 & Below
    BREAKER, Circuit - 50 Ampere (50 Amp)
    (Breaker With Nut Connections) SN# 0K999999 & Below
  • 10
    13-26996 LOCKWASHER, (#10) Stainless Steel
    (Breaker With Nut Connections) SN# 0K999999 & Below
    LOCKWASHER, (#10) Stainless Steel
    (Breaker With Nut Connections) SN# 0K999999 & Below
  • 11
    11-68219 NUT, (#10-32) Stainless Steel
    (Breaker With Nut Connections) SN# 0K999999 & Below
    NUT, (#10-32) Stainless Steel
    (Breaker With Nut Connections) SN# 0K999999 & Below
  • 12
    10-45862 SCREW, (#10-32 x .875)
    (Breaker With Nut Connections) SN# 0K999999 & Below
    SCREW, (#10-32 x .875)
    (Breaker With Nut Connections) SN# 0K999999 & Below
  • 13
    11-61356 NUT, (#10-32) Reduced Hex
    (Breaker With Nut Connections) SN# 0K999999 & Below
    NUT, (#10-32) Reduced Hex
    (Breaker With Nut Connections) SN# 0K999999 & Below
  • 14
    88-11178A01 BREAKER, Circuit - 50 Ampere
    (Breaker With Screw Connections) SN# 0K999999 & Below
    BREAKER, Circuit - 50 Ampere
    (Breaker With Screw Connections) SN# 0K999999 & Below
  • 15
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    (Breaker With Screw Connections) SN# 0K999999 & Below
    SCREW, (#10-32 x .375) Stainless Steel
    (Breaker With Screw Connections) SN# 0K999999 & Below
  • 16
    13-26996 LOCKWASHER, (#10) Stainless Steel
    (Breaker With Screw Connections) SN# 0K999999 & Below
    LOCKWASHER, (#10) Stainless Steel
    (Breaker With Screw Connections) SN# 0K999999 & Below
  • 17
    10-57583T SCREW, (#8-32 x .375)
    (Breaker With Screw Connections) SN# 0K999999 & Below
    SCREW, (#8-32 x .375)
    (Breaker With Screw Connections) SN# 0K999999 & Below
  • 18
    88-79023T56 FUSE ASSEMBLY, 55 Ampere
    SN# 0L010042 & Up
    FUSE ASSEMBLY, 55 Ampere
    SN# 0L010042 & Up
  • 19
    11-21825 NUT, (.250-28)
    SN# 0L010042 & Up
    NUT, (.250-28)
    SN# 0L010042 & Up
  • 20
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 21
    10-98256 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 22
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 23
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 24
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 25
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 26
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 27
    98428T3 BRACKET, Electrical Mounting
    SN# 0K999999 & Below
    BRACKET, Electrical Mounting
    SN# 0K999999 & Below
  • 28
    862080T BRACKET, Shift/Electrical Mounting
    SN# 0L010042 & Up
    BRACKET, Shift/Electrical Mounting
    SN# 0L010042 & Up
  • 29
    85-97861 INSULATOR
    INSULATOR
  • 30
    84-94227A2 RESISTOR WIRE KIT
    RESISTOR WIRE KIT
  • 31
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 32
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 33
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 34
    23-31866 SPACER, (.256 x .313 x .625)
    SPACER, (.256 x .313 x .625)
  • 35
    12-20533 WASHER
    WASHER
  • 36
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
