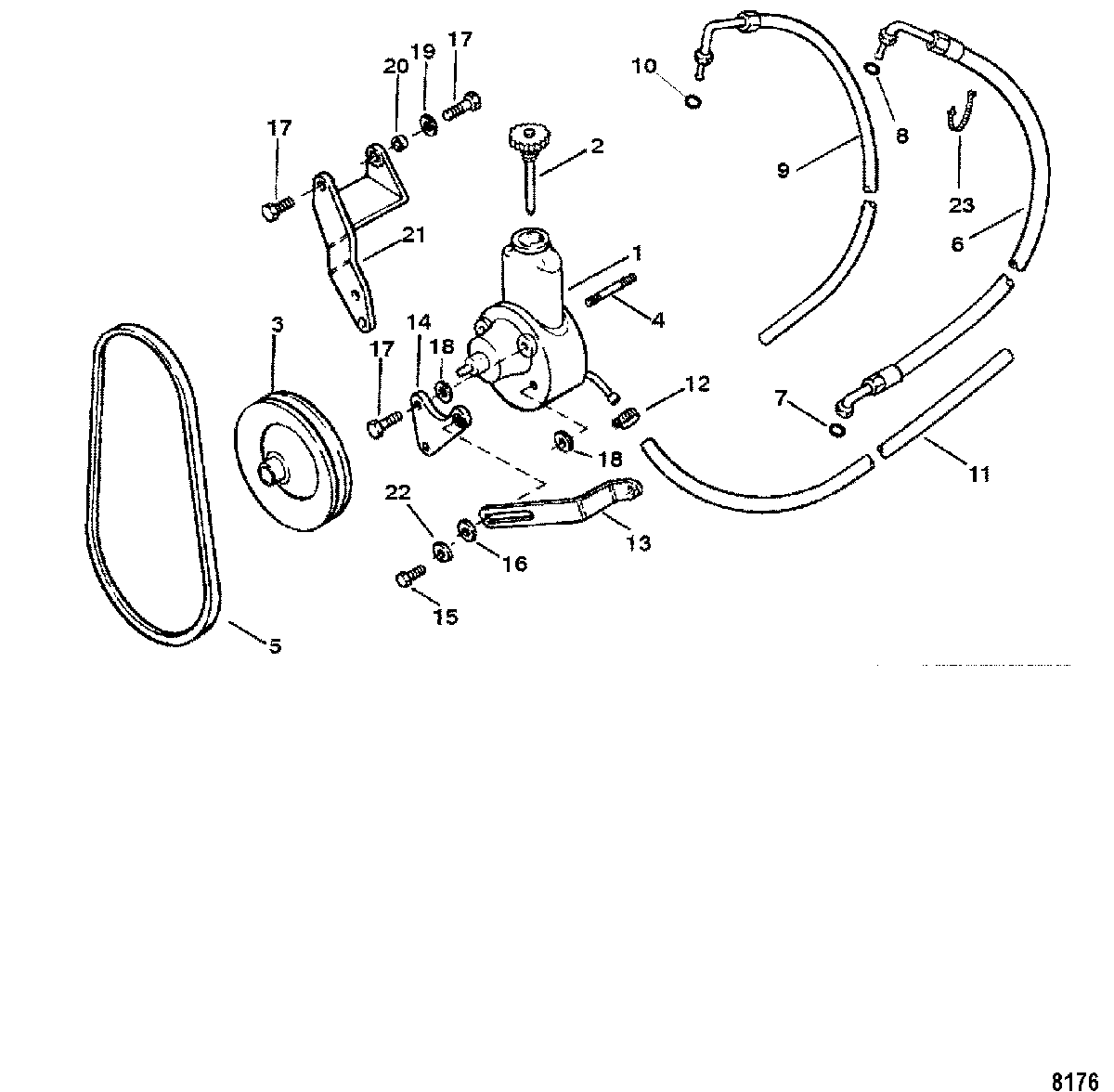

Power Steering Pump Assembly для Mercruiser - 3.0LX GM 181 I/L4 1996-1997 0F604000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    90507A12 PUMP ASSEMBLY, Power-Assisted Steering, Power Steering
    SN# 0K999999 & Below
    PUMP ASSEMBLY, Power-Assisted Steering, Power Steering
    SN# 0K999999 & Below
  • 1
    89-8M0063185 PUMP ASSEMBLY, Power Steering
    SN# 0L010042 & Up
    PUMP ASSEMBLY, Power Steering
    SN# 0L010042 & Up
  • 2
    36-95805 CAP
    CAP
  • 3
    73873A1 PULLEY
    PULLEY
  • 4
    16-41877 STUD, (M10)
    STUD, (M10)
  • 5
    57-65607Q V BELT
    V BELT
  • 6
    32-806684 HOSE, Pressure
    (Fittings on Both Ends)
    HOSE, Pressure
    (Fittings on Both Ends)
  • 7
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 8
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 9
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (Fitting On One End)
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (Fitting On One End)
  • 10
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 11
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
  • 12
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • NS
    19-8M0074363 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • 13
    8M0072245 BRACE, Power Steering Adjusting
    BRACE, Power Steering Adjusting
  • 14
    96872A2 BRACKET
    BRACKET
  • 15
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 16
    12-34714 WASHER
    WASHER
  • 17
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 17
    10-40001195 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 18
    23-905201 SPACER, (.750 x .250)
    SPACER, (.750 x .250)
  • 19
    23-72057 SPACER, (1.00 Outside Diameter x .125 x Thick)
    SPACER, (1.00 Outside Diameter x .125 x Thick)
  • 20
    23-96818 BUSHING
    BUSHING
  • 21
    65606T BRACKET
    BRACKET
  • 22
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 23
    61990 TIE STRAP, (14.00 Inches)
    TIE STRAP, (14.00 Inches)
