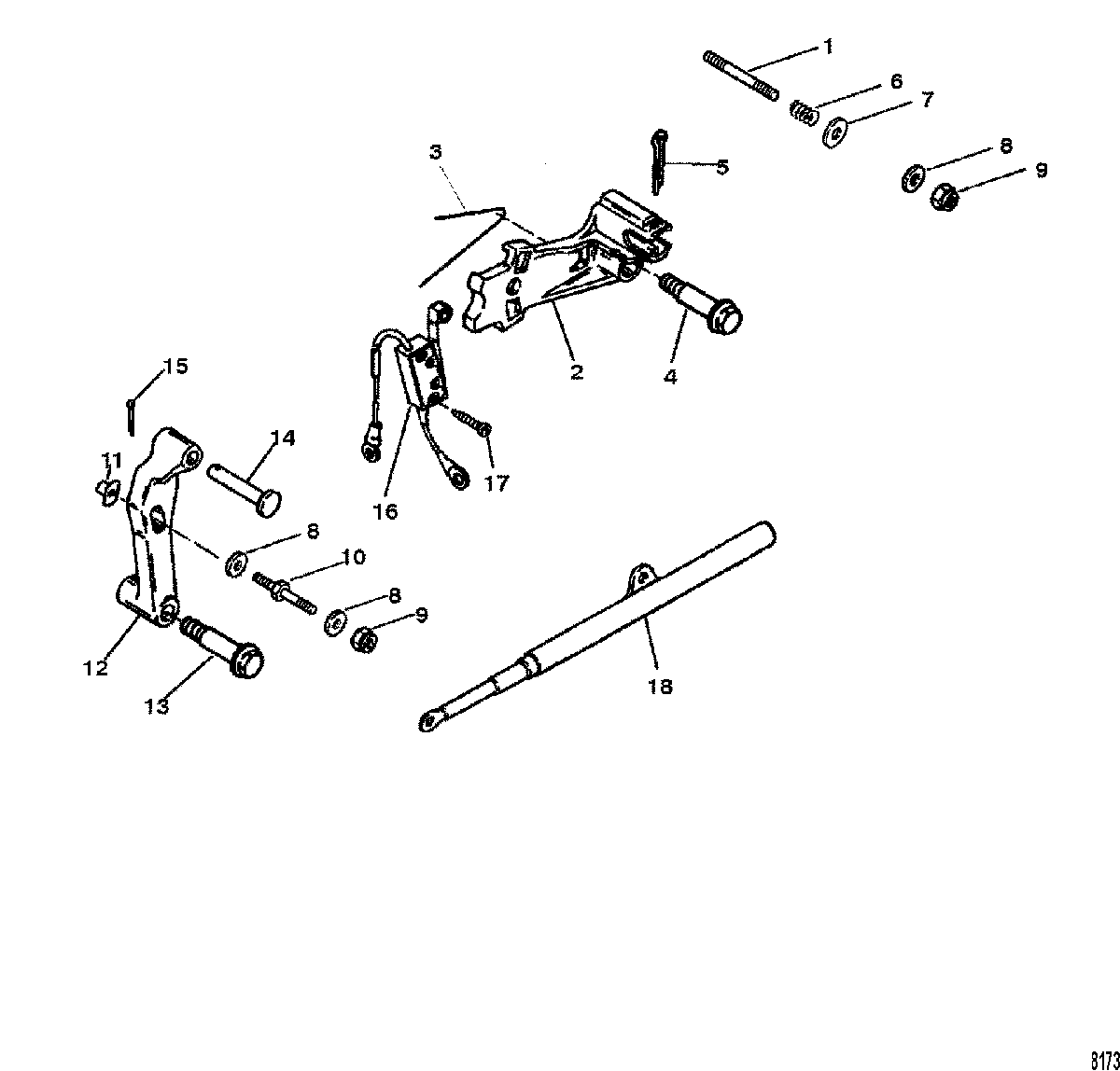

Shift Components(Use With Cast Aluminum Rocker Cover) для Mercruiser - 3.0LX GM 181 I/L4 1996-1997 0F604000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    865149A02 STUD, (.250 x 2.870)
    STUD, (.250 x 2.870)
  • 2
    13051A4 LEVER ASSEMBLY, Actuating
    LEVER ASSEMBLY, Actuating
  • 3
    24-862850 SPRING
    SPRING
  • 4
    10-865148 SCREW, (.312-18 x 1.843), Shoulder
    SCREW, (.312-18 x 1.843), Shoulder
  • 5
    18-328571 COTTER PIN
    COTTER PIN
  • 6
    24-98880 SPRING
    SPRING
  • 7
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 8
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 9
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 10
    16-8M0113178 STUD, (.250-28 x 2.00)
    STUD, (.250-28 x 2.00)
  • 11
    11-63341 TEE NUT
    TEE NUT
  • 12
    13898T06 LEVER ASSEMBLY, Shift
    LEVER ASSEMBLY, Shift
  • 13
    10-865148 SCREW, (.312-18 x 1.843), Shoulder
    SCREW, (.312-18 x 1.843), Shoulder
  • 14
    17-814001 PIN, Clevis
    PIN, Clevis
  • 15
    18-210711 COTTER PIN
    COTTER PIN
  • 16
    87-19752A3 SWITCH, Shift Interrupt
    SWITCH, Shift Interrupt
  • 17
    10-30902 SCREW, (#6-32 x .750)
    SCREW, (#6-32 x .750)
  • 18
    813995A1 GUIDE ASSEMBLY, Spring
    GUIDE ASSEMBLY, Spring
