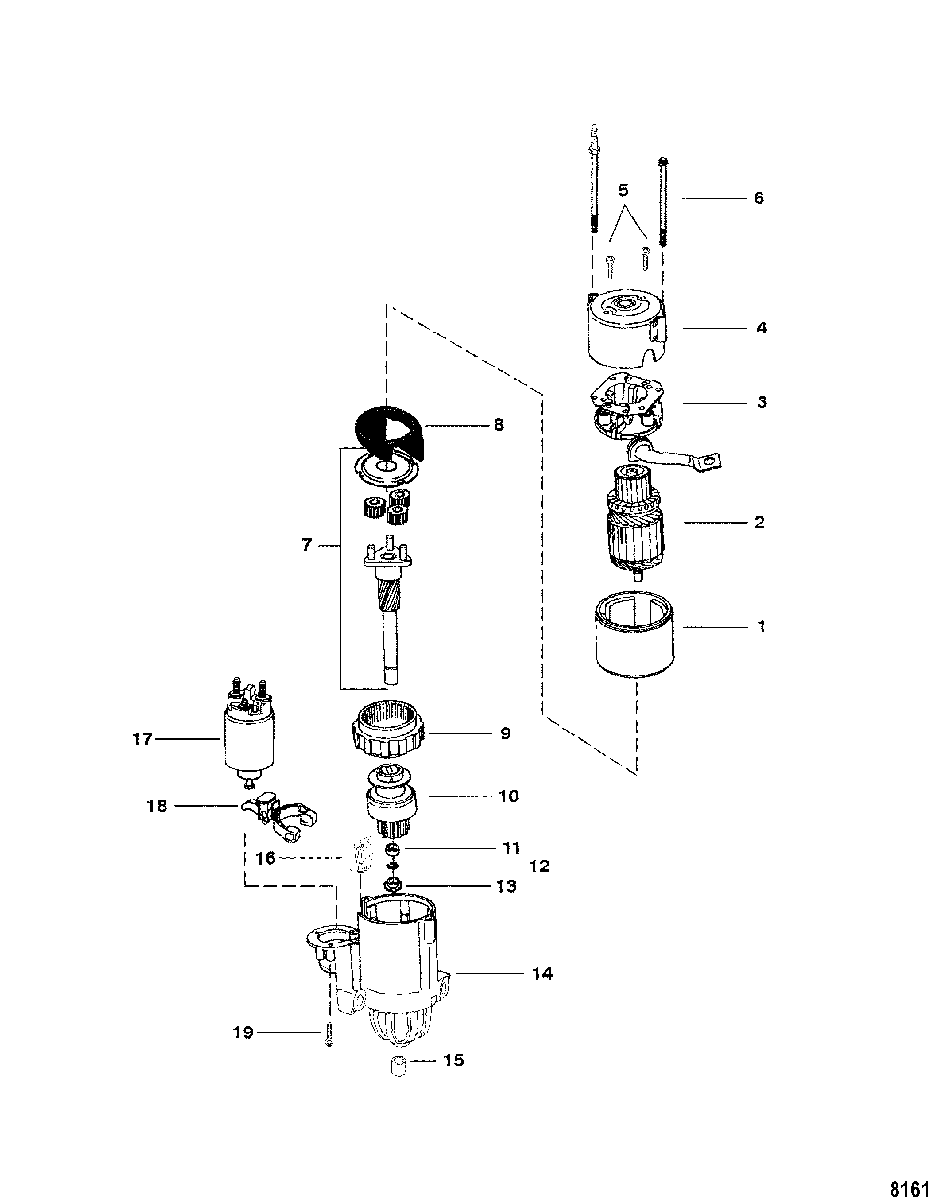

Starter Motor для Mercruiser - 3.0LX GM 181 I/L4 1996-1997 0F604000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY
    SN# 0L096999 & Below
    STARTER MOTOR ASSEMBLY
    SN# 0L096999 & Below
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    SN# 0L097000 & Up
    STARTER MOTOR ASSEMBLY
    SN# 0L097000 & Up
  • 2
    NSS NOT SOLD SEPARATE, Armature
    NOT SOLD SEPARATE, Armature
  • 3
    NSS NOT SOLD SEPARATE, Brush Holder and Spring
    NOT SOLD SEPARATE, Brush Holder and Spring
  • 4
    NSS NOT SOLD SEPARATE, Frame
    NOT SOLD SEPARATE, Frame
  • 5
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 6
    NSS NOT SOLD SEPARATE, Thru Bolt
    NOT SOLD SEPARATE, Thru Bolt
  • 7
    NSS NOT SOLD SEPARATE, Shaft and Gear
    NOT SOLD SEPARATE, Shaft and Gear
  • 8
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 9
    NSS NOT SOLD SEPARATE, Gear
    NOT SOLD SEPARATE, Gear
  • 10
    NSS NOT SOLD SEPARATE, Drive
    NOT SOLD SEPARATE, Drive
  • 11
    33291 COLLAR
    COLLAR
  • 12
    53-33290 RING, Retaining
    RING, Retaining
  • 13
    NSS NOT SOLD SEPARATE, Color-Thrust
    NOT SOLD SEPARATE, Color-Thrust
  • 14
    809458T HOUSING, Drive
    HOUSING, Drive
  • 15
    23-814476 BUSHING
    BUSHING
  • 16
    NSS NOT SOLD SEPARATE, Grommet
    NOT SOLD SEPARATE, Grommet
  • 17
    809463A1 SOLENOID KIT
    SOLENOID KIT
  • 18
    NSS NOT SOLD SEPARATE, Lever
    NOT SOLD SEPARATE, Lever
  • 19
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
