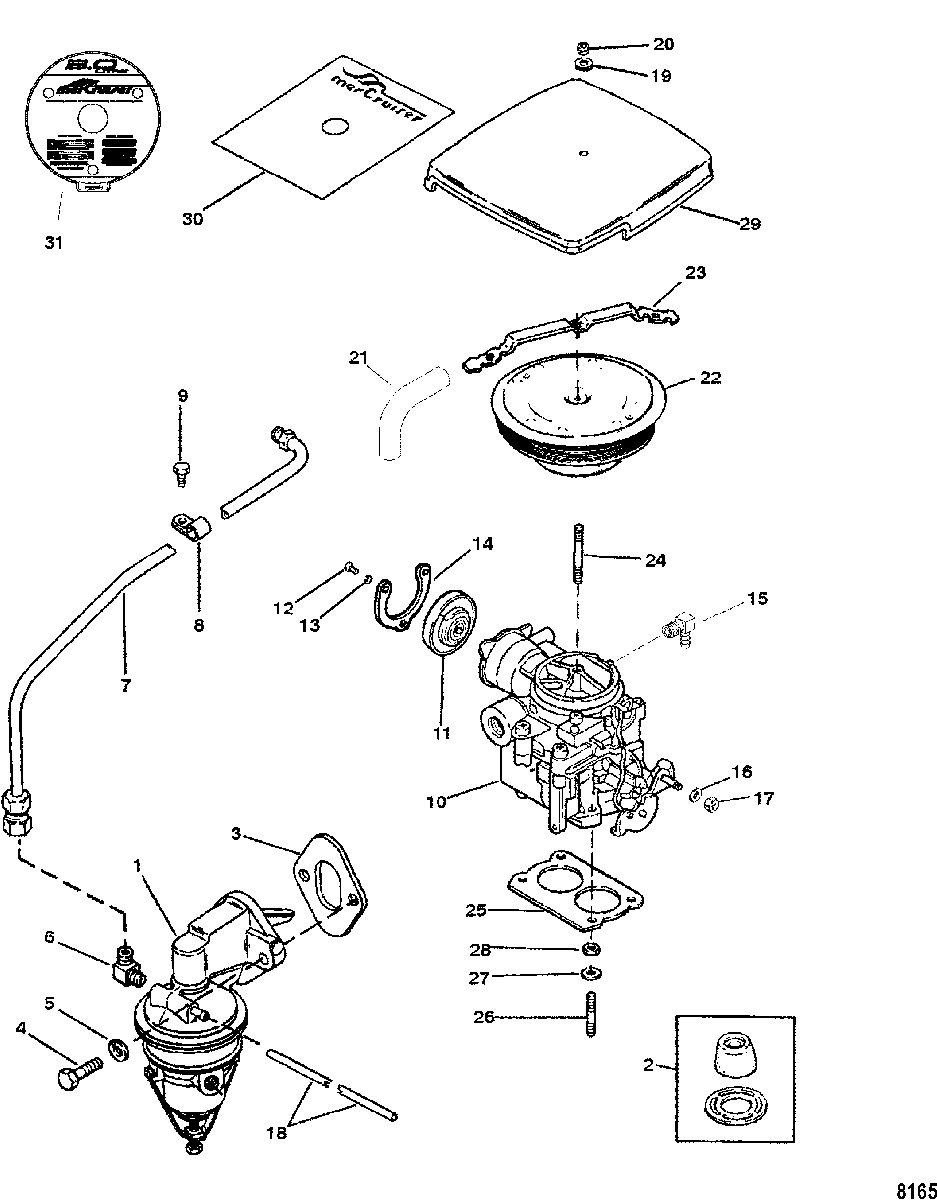

Fuel Pump and Carburetor для Mercruiser - 3.0LX GM 181 I/L4 1996-1997 0F604000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    8M0073435 PUMP ASSEMBLY, Fuel, Fuel
    PUMP ASSEMBLY, Fuel, Fuel
  • 2
    35-8M0046752 FILTER KIT, Fuel
    FILTER KIT, Fuel
  • 3
    27-8M0108647 GASKET
    GASKET
  • 4
    10-31984 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 5
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 6
    22-43276 ELBOW, (90 Degree) (90 Degree)
    ELBOW, (90 Degree) (90 Degree)
  • 7
    32-147971 LINE, Fuel
    SN# 0K999999 & Below
    LINE, Fuel
    SN# 0K999999 & Below
  • 7
    32-8M0045357 LINE, Fuel
    SN# 0L010042 & Up
    LINE, Fuel
    SN# 0L010042 & Up
  • 8
    54-65653 CLIP
    CLIP
  • 9
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 10
    3310-8M0045397 CARBURETOR ASSEMBLY
    (See "Carburetor (Mercarb) for Breakdown
    CARBURETOR ASSEMBLY
    (See "Carburetor (Mercarb) for Breakdown
  • 10
    3310-807505A1 CARBURETOR ASSEMBLY
    (Swiss Emissions) (BSO1 & SAV1) (Breakdown not Available at Time of Printing)
    CARBURETOR ASSEMBLY
    (Swiss Emissions) (BSO1 & SAV1) (Breakdown not Available at Time of Printing)
  • 11
    70125A02 COVER, Choke
    COVER, Choke
  • 12
    10-33047 SCREW
    SCREW
  • 13
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 14
    53-805140 PLATE
    PLATE
  • 15
    22-54090 ELBOW (90 Degree)
    ELBOW (90 Degree)
  • 16
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 17
    11-8267086 NUT, (#10-32)
    NUT, (#10-32)
  • 18
    32-7381567 TUBING, (42.00 Inches Bulk)
    TUBING, (42.00 Inches Bulk)
  • 19
    12-86400 WASHER
    WASHER
  • 20
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 21
    32-807202 HOSE, Breather
    SN# 0K999999 & Below
    HOSE, Breather
    SN# 0K999999 & Below
  • 21
    32-8M0086022 HOSE, Breather
    SN# 0L010042 & Up
    HOSE, Breather
    SN# 0L010042 & Up
  • 22
    805016A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 23
    805313 RETAINER
    RETAINER
  • 24
    16-8M0113181 STUD, (.250-20/.250-28 x Special)
    STUD, (.250-20/.250-28 x Special)
  • 25
    27-8079821 GASKET
    GASKET
  • 26
    16-8M0113177 STUD, (.312 x 1.500)
    STUD, (.312 x 1.500)
  • 27
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 28
    11-862902 NUT, (.9375-24)
    NUT, (.9375-24)
  • 29
    17878A5 COVER, Carburetor
    COVER, Carburetor
  • 30
    37-8189392 DECAL
    SN# 0K999999 & Below
    DECAL
    SN# 0K999999 & Below
  • 30
    37-807667 DECAL
    (Swiss Emissions) (BSO1 And SAV1)
    DECAL
    (Swiss Emissions) (BSO1 And SAV1)
  • 31
    37-8615061 DECAL
    SN# 0L010042 & Up
    DECAL
    SN# 0L010042 & Up
  • -
    27-810846A05 GASKET SET, Overhaul
    GASKET SET, Overhaul
