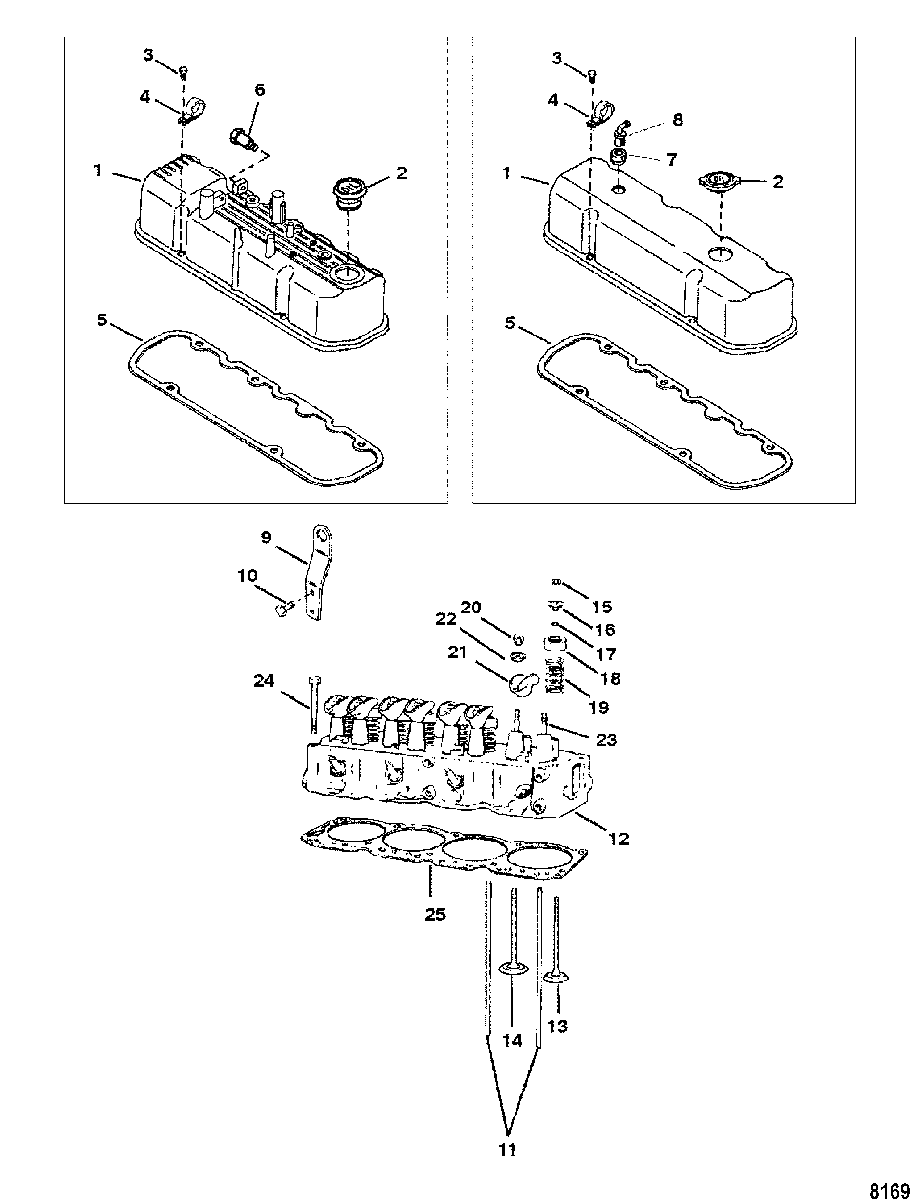

Cylinder Head and Rocker Cover для Mercruiser - 3.0LX GM 181 I/L4 1996-1997 0F604000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    65635A16 COVER, Rocker
    (Cast Aluminum Cover) SN# 0K999999 & Below
    COVER, Rocker
    (Cast Aluminum Cover) SN# 0K999999 & Below
  • 2
    36-807152 CAP, Oil Fill
    (Cast Aluminum Cover) SN# 0K999999 & Below
    CAP, Oil Fill
    (Cast Aluminum Cover) SN# 0K999999 & Below
  • 3
    10-65746 SCREW, (.250-20 x .750)
    (Cast Aluminun Cover) SN# 0K999999 & Below
    SCREW, (.250-20 x .750)
    (Cast Aluminun Cover) SN# 0K999999 & Below
  • 4
    54-97224 J CLIP
    (Cast Aluminum Cover) SN# 0K999999 & Below
    J CLIP
    (Cast Aluminum Cover) SN# 0K999999 & Below
  • 5
    27-851040 GASKET
    (Cast Aluminum Cover) SN# 0K999999 & Below
    GASKET
    (Cast Aluminum Cover) SN# 0K999999 & Below
  • 6
    10-96430 SHOULDER SCREW
    (Cast Aluminum Cover) SN# 0K999999 & Below
    SHOULDER SCREW
    (Cast Aluminum Cover) SN# 0K999999 & Below
  • 1
    8M0122491 COVER, Rocker
    (Stamped Steel Cover) SN# 0L010042 & Up
    COVER, Rocker
    (Stamped Steel Cover) SN# 0L010042 & Up
  • 2
    36-807152 CAP, Oil Fill
    (Stamped Steel Cover) SN# 0L010042 & Up
    CAP, Oil Fill
    (Stamped Steel Cover) SN# 0L010042 & Up
  • 3
    10-8M0040582 SCREW
    (Stamped Steel Cover) SN# 0L010042 & Up
    SCREW
    (Stamped Steel Cover) SN# 0L010042 & Up
  • 4
    54-97224 J CLIP
    (Stamped Steel Cover) SN# 0L010042 & Up
    J CLIP
    (Stamped Steel Cover) SN# 0L010042 & Up
  • 5
    27-851040 GASKET
    (Stamped Steel Cover) SN# 0L010042 & Up
    GASKET
    (Stamped Steel Cover) SN# 0L010042 & Up
  • 7
    23-8M0071559 GROMMET
    (Stamped Steel Cover) SN# 0L010042 & Up
    GROMMET
    (Stamped Steel Cover) SN# 0L010042 & Up
  • 8
    97850T ELBOW, 90 Degree, Breather
    (Stamped Steel Cover) SN# 0L010042 & Up
    ELBOW, 90 Degree, Breather
    (Stamped Steel Cover) SN# 0L010042 & Up
  • 9
    67850 LIFTING EYE
    LIFTING EYE
  • 10
    10-54528 SCREW
    SCREW
  • 11
    34532 PUSH ROD
    PUSH ROD
  • 12
    938-8M0115135 HEAD ASSEMBLY, Cylinder
    (Complete)
    HEAD ASSEMBLY, Cylinder
    (Complete)
  • 13
    52367 VALVE, Exhaust
    (Standard)
    VALVE, Exhaust
    (Standard)
  • 13
    52368 VALVE, Exhaust
    (.015 Over Size)
    VALVE, Exhaust
    (.015 Over Size)
  • 14
    97661 VALVE, Intake
    (Standard)
    VALVE, Intake
    (Standard)
  • 14
    97662 VALVE, Intake
    (.015 Over Size)
    VALVE, Intake
    (.015 Over Size)
  • 15
    28-547971 KEY
    KEY
  • 16
    FI1100604 CAP
    CAP
  • 17
    26-34217 SEAL
    SEAL
  • 18
    34518001 SHIELD
    SHIELD
  • 19
    24-35214 SPRING, Valve
    SPRING, Valve
  • 20
    11-34516 NUT
    NUT
  • 21
    34519 ARM KIT, Rocker
    ARM KIT, Rocker
  • 22
    59340 BALL, Rocker Arm
    BALL, Rocker Arm
  • 23
    16-34522 STUD
    (.003 Over Size)
    STUD
    (.003 Over Size)
  • 23
    16-34521 STUD
    (.013 Over Size)
    STUD
    (.013 Over Size)
  • 24
    10-34510 BOLT
    BOLT
  • 25
    27-52364 GASKET
    GASKET
  • -
    27-810846A05 GASKET SET, Overhaul
    GASKET SET, Overhaul
