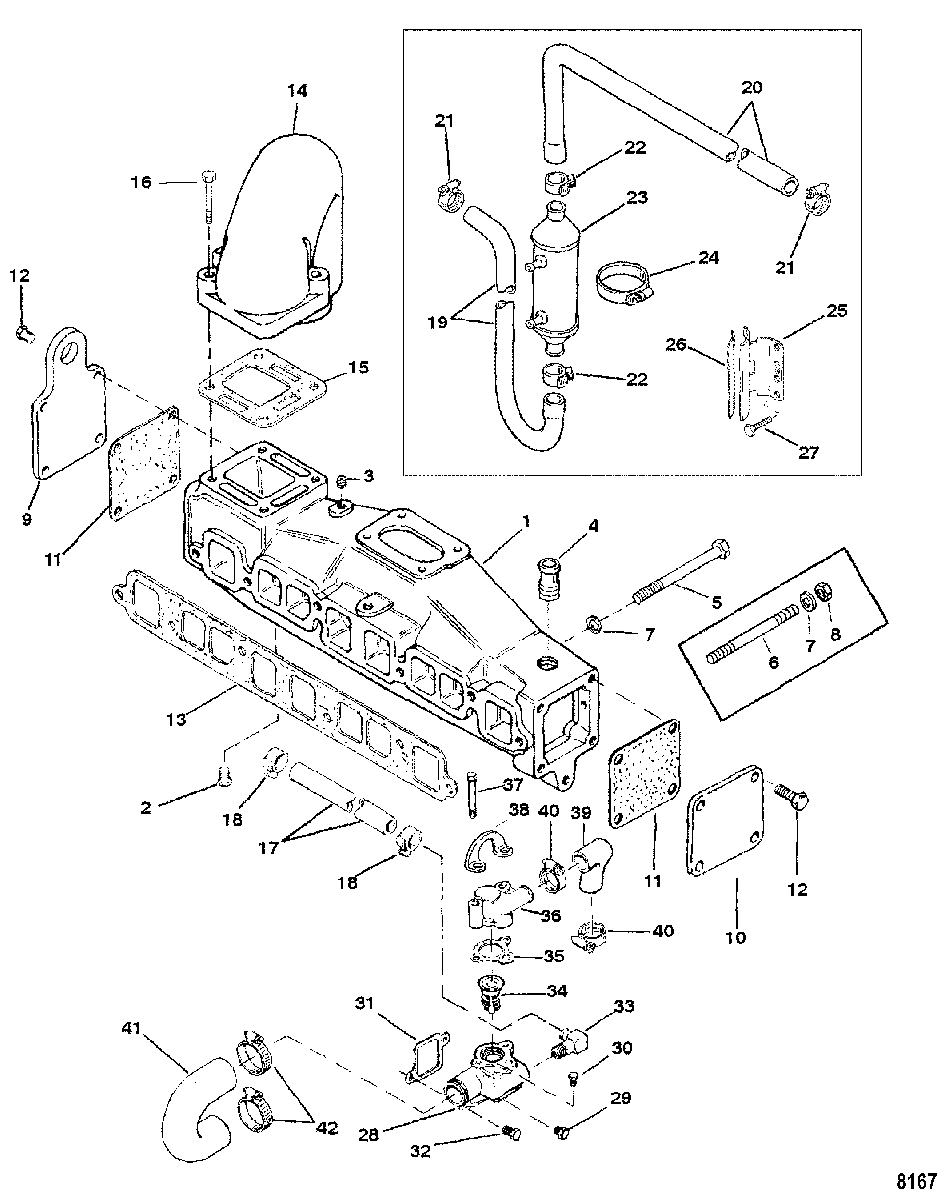

Exhaust Manifold and Water System для Mercruiser - 3.0LX GM 181 I/L4 1996-1997 0F604000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    860235A03 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 3
    22-36382 FITTING, (.250-18 x .62) Brass
    FITTING, (.250-18 x .62) Brass
  • 4
    22-866725 FITTING, Hose
    FITTING, Hose
  • 4
    22-428611 FITTING, Pipe - Brass (.750-14)
    (Closed Cooling)
    FITTING, Pipe - Brass (.750-14)
    (Closed Cooling)
  • 5
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 6
    16-8M2010364 STUD, (.375 x 5.380)
    STUD, (.375 x 5.380)
  • 7
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 8
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 9
    805629A1 END CAP/LIFTING EYE, Rear
    END CAP/LIFTING EYE, Rear
  • 10
    73813A1 END CAP ASSEMBLY, Front
    END CAP ASSEMBLY, Front
  • 11
    27-807218 GASKET
    GASKET
  • 12
    10-824941 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 13
    27-815528 GASKET
    GASKET
  • 14
    12076A2 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 14
    12076A5 ELBOW ASSEMBLY, Exhaust
    Swiss Emissions (BSO1 And SAV1)
    ELBOW ASSEMBLY, Exhaust
    Swiss Emissions (BSO1 And SAV1)
  • 15
    27-997772 GASKET
    GASKET
  • 16
    10-668631 SCREW, (.375-16 x 2.500)
    SCREW, (.375-16 x 2.500)
  • 17
    32-8M0062634 HOSE, Transom Plate To Housing
    (With Out Power Steering)
    HOSE, Transom Plate To Housing
    (With Out Power Steering)
  • 18
    54-815504412 CLAMP, Worm Gear
    (With Out Power Steering)
    CLAMP, Worm Gear
    (With Out Power Steering)
  • 19
    32-815413 HOSE, Transom Plate To Power Steering Cooler
    (With Power Steering)
    HOSE, Transom Plate To Power Steering Cooler
    (With Power Steering)
  • 20
    32-806433 HOSE, Power Steering Cooler To Housing
    (With Power Steering)
    HOSE, Power Steering Cooler To Housing
    (With Power Steering)
  • 21
    54-815504220 CLAMP, Worm Gear
    (With Power Steering)
    CLAMP, Worm Gear
    (With Power Steering)
  • 22
    54-815504412 CLAMP, Worm Gear
    (With Power Steering)
    CLAMP, Worm Gear
    (With Power Steering)
  • 23
    99356A1 COOLER ASSEMBLY, Oil
    (With Power Steering)
    COOLER ASSEMBLY, Oil
    (With Power Steering)
  • 24
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    (With Power Steering)
    CLAMP, Worm Gear (2.50 Diameter)
    (With Power Steering)
  • 25
    805546A2 BRACKET, Oil Cooler
    (With Power Steering)
    BRACKET, Oil Cooler
    (With Power Steering)
  • 26
    772233 PAD
    (With Power Steering)
    PAD
    (With Power Steering)
  • 27
    10-816585 SCREW, (.375-18 x .875)
    (With Power Steering)
    SCREW, (.375-18 x .875)
    (With Power Steering)
  • 28
    861493A07 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 29
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 30
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 31
    27-8146801 GASKET
    GASKET
  • 32
    10-90059 SCREW, (.375-16 x .875)
    (With Out Power Steering)
    SCREW, (.375-16 x .875)
    (With Out Power Steering)
  • 32
    10-90059 SCREW, (.375-16 x .875)
    (With Power Steering)
    SCREW, (.375-16 x .875)
    (With Power Steering)
  • 32
    10-90187 SCREW, (.375-16 x 1.250)
    (With Power Steering)
    SCREW, (.375-16 x 1.250)
    (With Power Steering)
  • 33
    22-807705 ELBOW (90 Degree)
    ELBOW (90 Degree)
  • 34
    59078 THERMOSTAT
    THERMOSTAT
  • 35
    27-475901 GASKET
    GASKET
  • 36
    861493A07 COVER ASSEMBLY, Thermostat Housing
    COVER ASSEMBLY, Thermostat Housing
  • 37
    10-79654 SCREW, (.312-18 x 2.380)
    SCREW, (.312-18 x 2.380)
  • 38
    54-805628T LIFTING EYE
    LIFTING EYE
  • 39
    32-806993 HOSE, Housing Cover To Manifold
    HOSE, Housing Cover To Manifold
  • 40
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 41
    32-8M0071007 HOSE, Housing To Water Pump
    HOSE, Housing To Water Pump
  • 42
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • -
    27-810846A05 GASKET SET, Overhaul
    GASKET SET, Overhaul
