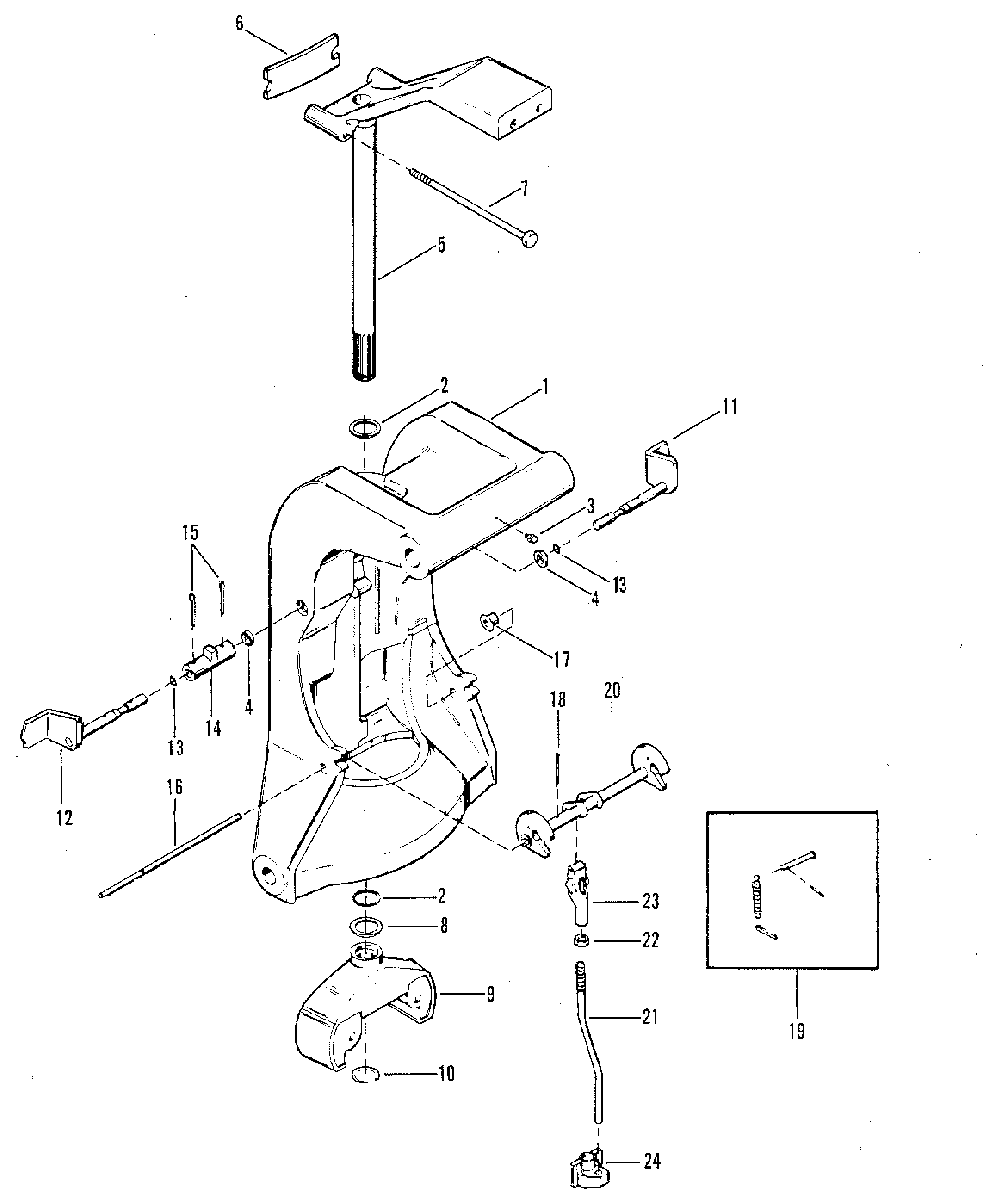

SWIVEL BRACKET AND REVERSE LOCK для Mariner - 70 5702220 THRU 6428680
-
№АртикулНазвание
-
11490-8599A6 SWIVEL BRACKET - WITH SHOCK ABSORBERSWIVEL BRACKET - WITH SHOCK ABSORBER
-
11490-8599A6 SWIVEL BRACKETSWIVEL BRACKET
-
226-32911 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
322-74036 GREASE FITTINGGREASE FITTING
-
426-22734 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
569540A4 SWIVEL PIN ASSEMBLY (LONG SHAFT)SWIVEL PIN ASSEMBLY (LONG SHAFT)
-
630711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
710-66897 BOLT, UPPER MOUNT TO SWIVEL PIN (5-1/4")BOLT, UPPER MOUNT TO SWIVEL PIN (5-1/4")
-
812-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
-
977416T1 BOTTOM YOKEBOTTOM YOKE
-
1053-77415 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
-
1176386 TILT LOCK, STARBOARD
UNITED STATES 6322885 AND BELOWTILT LOCK, STARBOARD
UNITED STATES 6322885 AND BELOW -
1276385T TILT LOCK PORT
UNITED STATES 6322885 AND BELOWTILT LOCK PORT
UNITED STATES 6322885 AND BELOW -
11/1289105 TILT LOCK, STARBOARD/PORT
UNITED STATES 6322886 AND UPTILT LOCK, STARBOARD/PORT
UNITED STATES 6322886 AND UP -
1325-627021 "O" RING, TILT LOCK"O" RING, TILT LOCK
-
1479659 COUPLING, TILT LOCKCOUPLING, TILT LOCK
-
1518-47959 COTTER PIN, TILT LOCK TUBECOTTER PIN, TILT LOCK TUBE
-
1656349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
1723-69132 BUSHING, REVERSE PIVOT SHAFTBUSHING, REVERSE PIVOT SHAFT
-
1818-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
1924-78203A2 SPRING, REVERSE LOCK TENSION
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOWSPRING, REVERSE LOCK TENSION
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOW -
2087432 REVERSE LOCK ASSEMBLY
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOWREVERSE LOCK ASSEMBLY
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOW -
1924-78203A2 SPRING, REVERSE LOCK TENSION
UNITED STATES 5853642 AND UPSPRING, REVERSE LOCK TENSION
UNITED STATES 5853642 AND UP -
2014664A3 REVERSE LOCK ASSEMBLY
UNITED STATES 5853642 AND UPREVERSE LOCK ASSEMBLY
UNITED STATES 5853642 AND UP -
2147836 PUSH ROD, REVERSE LOCK (LONG SHAFT)
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOWPUSH ROD, REVERSE LOCK (LONG SHAFT)
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOW -
2211-28770 JAM NUT, PUSH ROD
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOWJAM NUT, PUSH ROD
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOW -
2347837 ROD END, PUSH ROD
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOWROD END, PUSH ROD
UNITED STATES 5853641 AND BELOW
CANADA 7178999 AND BELOW -
2143416A2 PUSH ROD, REVERSE LOCK (LONG SHAFT)
UNITED STATES 5853642 AND UPPUSH ROD, REVERSE LOCK (LONG SHAFT)
UNITED STATES 5853642 AND UP -
2211-28770 JAM NUT, PUSH ROD
UNITED STATES 5853642 AND UPJAM NUT, PUSH ROD
UNITED STATES 5853642 AND UP -
2389813 ROD END, PUSH ROD
UNITED STATES 5853642 AND UPROD END, PUSH ROD
UNITED STATES 5853642 AND UP -
24933361 GUIDE, PUSH RODGUIDE, PUSH ROD
