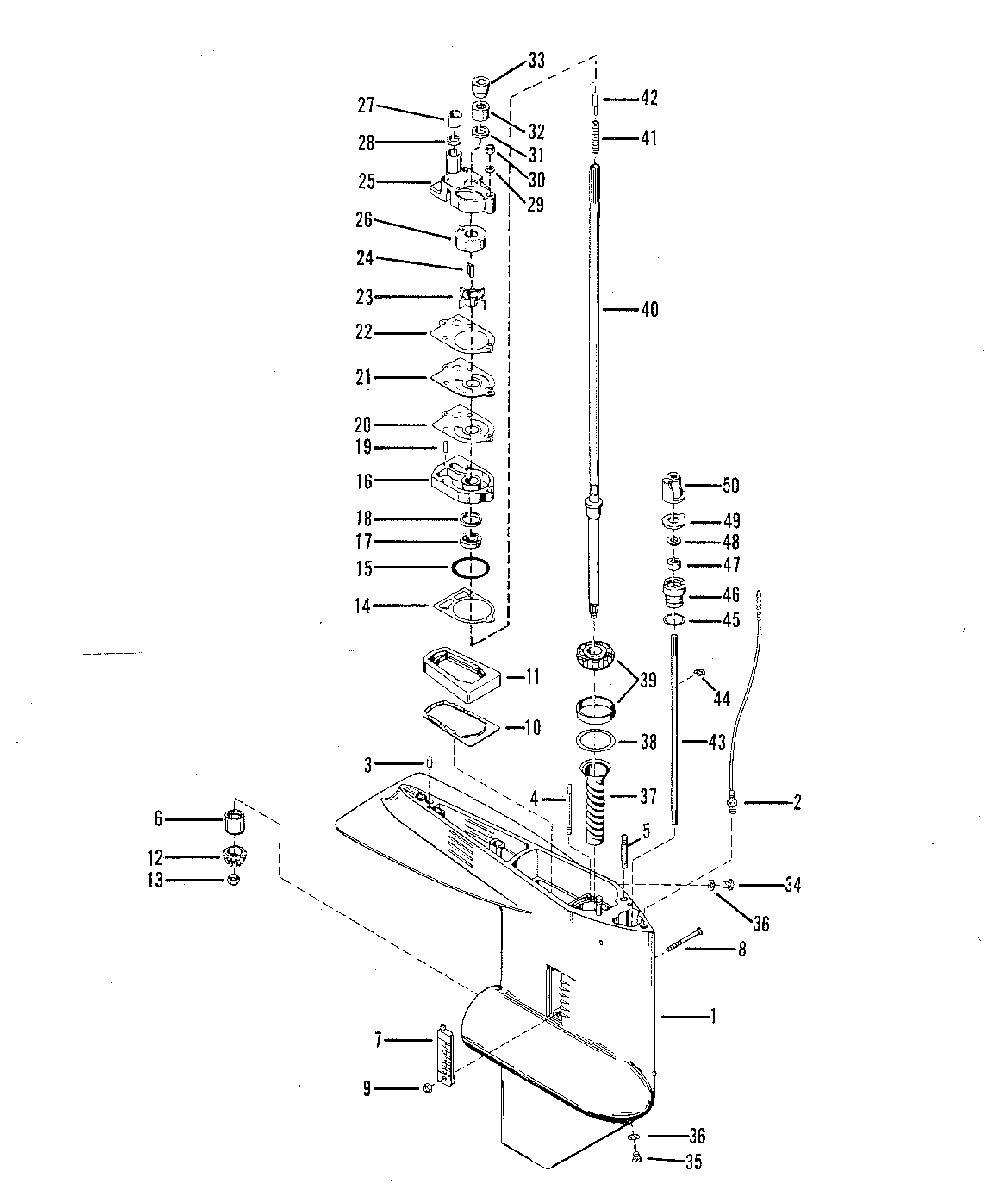

GEAR HOUSING (DRIVE SHAFT) для Mariner - 70 5702220 THRU 6428680

  • №
    Артикул
    Название
  • -
    1643-9539A9 GEAR HOUSING ASSEMBLY (LONG SHAFT)
    GEAR HOUSING ASSEMBLY (LONG SHAFT)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
    CONNECTOR ASSEMBLY, SPEEDOMETER
  • 3
    17-8M0084726 DOWEL PIN - GEAR HOUSING
    DOWEL PIN - GEAR HOUSING
  • 4
    16-33778 STUD, WATER PUMP/BASE (2-5/8")
    STUD, WATER PUMP/BASE (2-5/8")
  • 5
    16-8M0034453 STUD, GEAR HOUSING
    STUD, GEAR HOUSING
  • 6
    31-62091T ROLLER BEARING - DRIVE SHAFT
    ROLLER BEARING - DRIVE SHAFT
  • 7
    72849A1 SCREEN, WATER INTAKE - STARBOARD AND PORT
    SCREEN, WATER INTAKE - STARBOARD AND PORT
  • 8
    10-36070 SCREW, WATER INTAKE SCREEN
    SCREW, WATER INTAKE SCREEN
  • 9
    11-859124 NUT, WATER INTAKE SCREEN SCREW
    NUT, WATER INTAKE SCREEN SCREW
  • 10
    92815 PLATE, SUPPORT - EXHAUST TUBE
    PLATE, SUPPORT - EXHAUST TUBE
  • 11
    37721001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 12
    43-88019T PINION GEAR - DRIVE SHAFT
    PINION GEAR - DRIVE SHAFT
  • 13
    11-55910 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 14
    27-19552 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 15
    25-26722 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 16
    46-77177A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 17
    26-79831 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    26-90562 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 19
    17-8M0084627 DOWEL PIN, WATER PUMP BASE
    DOWEL PIN, WATER PUMP BASE
  • 20
    27-19553 GASKET, LOWER - WATER PUMP
    GASKET, LOWER - WATER PUMP
  • 21
    32768 FACE PLATE - WATER PUMP
    FACE PLATE - WATER PUMP
  • 22
    27-19551 GASKET, UPPER - WATER PUMP
    GASKET, UPPER - WATER PUMP
  • 23
    47-89983T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 24
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 25
    46-77822A1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 26
    48753 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 27
    26-38452 SEAL, RUBBER - WATER PUMP
    SEAL, RUBBER - WATER PUMP
  • 28
    12-38453 WASHER, NYLON - WATER PUMP
    WASHER, NYLON - WATER PUMP
  • 29
    12-29245 WASHER, WATER PUMP STUDS
    WASHER, WATER PUMP STUDS
  • 30
    11-35888 NUT, WATER PUMP STUDS
    NUT, WATER PUMP STUDS
  • 31
    25-20273 RING, RUBBER (DRIVE SHAFT)
    RING, RUBBER (DRIVE SHAFT)
  • 32
    78654A1 SEAT ASSEMBLY, DRIVE SHAFT
    SEAT ASSEMBLY, DRIVE SHAFT
  • 33
    86304 SEAL, SPLINED - DRIVE SHAFT
    SEAL, SPLINED - DRIVE SHAFT
  • 34
    10-79953Q04 SCREW, GREASE FILLER
    SCREW, GREASE FILLER
  • 35
    22-8M0058389 SCREW, DRAIN (MAGNETIC)
    SCREW, DRAIN (MAGNETIC)
  • 36
    12-191833 WASHER, GREASE FILLER AND DRAIN SCREW
    WASHER, GREASE FILLER AND DRAIN SCREW
  • 37
    88181 SLEEVE, LUBRICATION
    SLEEVE, LUBRICATION
  • 38
    15-92881A1 SHIM, ROLLER BEARING (.002-3-5-10-20)
    SHIM, ROLLER BEARING (.002-3-5-10-20)
  • 39
    31-77420A1 ROLLER BEARING ASSEMBLY, TAPERED
    ROLLER BEARING ASSEMBLY, TAPERED
  • 40
    45-98180 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
  • 41
    24-20254 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
  • 42
    17-30545 PIN, DRIVE SHAFT
    PIN, DRIVE SHAFT
  • 43
    76063A1 SHAFT ASSY, SHIFT - LOWER
    SHAFT ASSY, SHIFT - LOWER
  • 44
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
  • 45
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 46
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 47
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 48
    12-77674 WASHER, RUBBER - SHAFT BUSHING
    WASHER, RUBBER - SHAFT BUSHING
  • 49
    78036 BASE, REVERSE LOCKING
    BASE, REVERSE LOCKING
  • 50
    43308T1 CAM, REVERSE LOCKING
    CAM, REVERSE LOCKING
