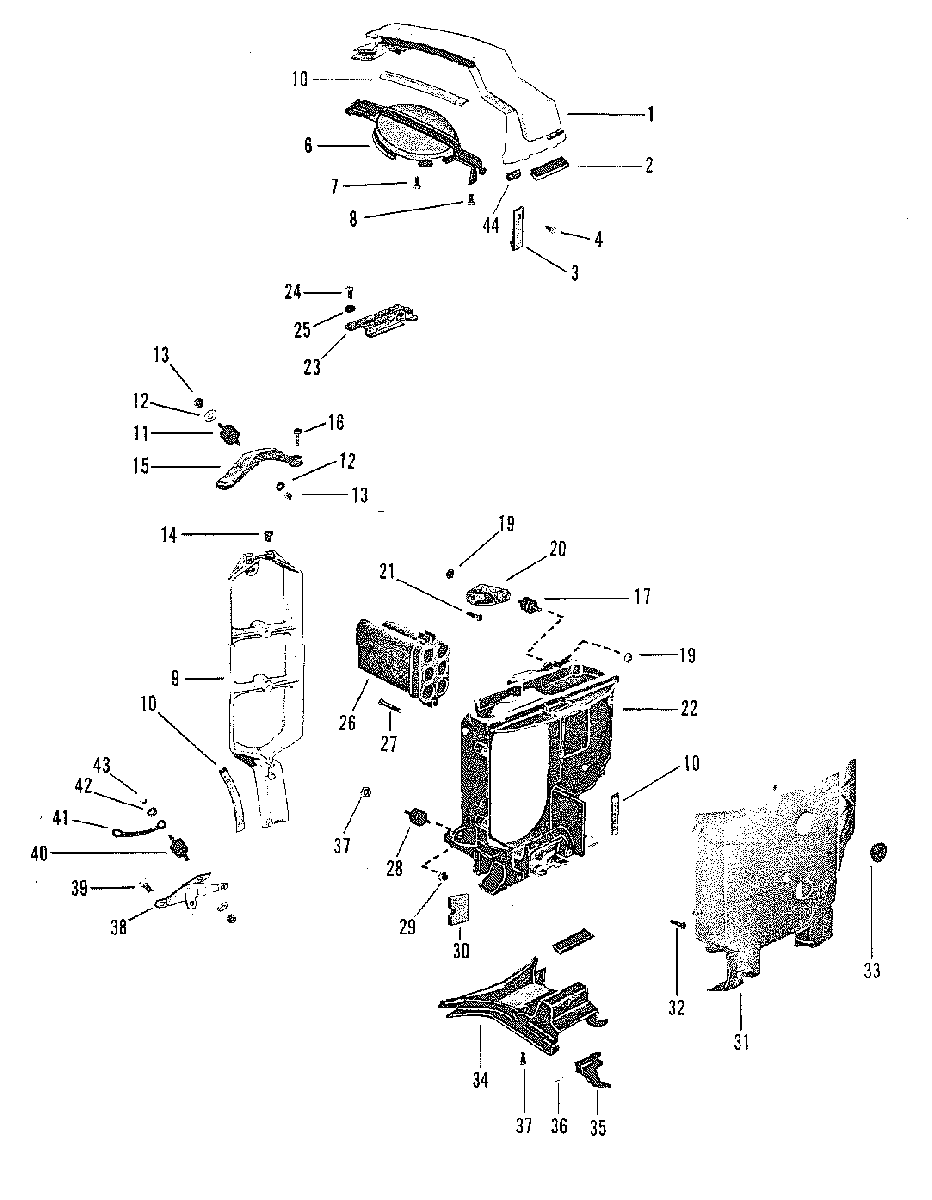

COWL SUPPORT BRACKETS для Mariner - 70 5702220 THRU 6428680
-
№АртикулНазвание
-
173641A2 BRACKET, COWL SUPPORT - TOPBRACKET, COWL SUPPORT - TOP
-
262444 SEAL, RUBBER - TOP BRACKET/MOUNTING PLATESEAL, RUBBER - TOP BRACKET/MOUNTING PLATE
-
379652 CLIP, SUPPORT BRACKETCLIP, SUPPORT BRACKET
-
410-48408 SCREW, CLIP TO SUPPORT (1/2")SCREW, CLIP TO SUPPORT (1/2")
-
679490 SHIELD, FLYWHEELSHIELD, FLYWHEEL
-
710-37656 SCREW, SHIELD TO SUPPORT BRACKET (5/8")SCREW, SHIELD TO SUPPORT BRACKET (5/8")
-
810-48409 SCREW, SHIELD TO SUPPORT BRACKET (1/2")SCREW, SHIELD TO SUPPORT BRACKET (1/2")
-
974510A2 BRACKET, COWL SUPPORT - REARBRACKET, COWL SUPPORT - REAR
-
10698761 SEAL, REAR BRACKET AND TOP BRACKETSEAL, REAR BRACKET AND TOP BRACKET
-
1190435 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
1212-69057 WASHER, RUBBER MOUNTWASHER, RUBBER MOUNT
-
1311-36069 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
14269011 STOP, RUBBER - REAR SUPPORT BRACKETSTOP, RUBBER - REAR SUPPORT BRACKET
-
1560116 BRACE, COWL SUPPORT BRACKET (TOP)BRACE, COWL SUPPORT BRACKET (TOP)
-
1610-76596 SCREW, SUPPORT BRACKET (1-1/4")SCREW, SUPPORT BRACKET (1-1/4")
-
1790435 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
1911-36069 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
2071097 BRACKET, RUBBER MOUNTBRACKET, RUBBER MOUNT
-
2110-824941 SCREW, BRACKET TO CRANKCASE (3/4")SCREW, BRACKET TO CRANKCASE (3/4")
-
22973481 ATTENUATOR, SOUND
UNITED STATES 6104269 AND BELOWATTENUATOR, SOUND
UNITED STATES 6104269 AND BELOW -
22973481 ATTENUATOR, SOUND
UNITED STATES 6104270 AND UPATTENUATOR, SOUND
UNITED STATES 6104270 AND UP -
2388684 COVER, MANUAL CHOKECOVER, MANUAL CHOKE
-
2410-23015 SCREW, COVER TO TOP COVERSCREW, COVER TO TOP COVER
-
2512-814806 WASHER, COVER SCREWWASHER, COVER SCREW
-
2673986 AIR MANIFOLDAIR MANIFOLD
-
2710-69093 SCREW, AIR MANIFOLDSCREW, AIR MANIFOLD
-
2890435 MOUNT, RUBBER - FRONT SUPPORTMOUNT, RUBBER - FRONT SUPPORT
-
2911-36069 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
3076410 SEAL, FUEL CONNECTOR - SOUND ATTENUATORSEAL, FUEL CONNECTOR - SOUND ATTENUATOR
-
3176578 COVER, SOUND ATTENUATOR (FRONT)COVER, SOUND ATTENUATOR (FRONT)
-
3210-37571 SCREW, FRONT COVER (1/2")SCREW, FRONT COVER (1/2")
-
3319-73336 PLUG, FRONT COVERPLUG, FRONT COVER
-
3476251A1 PLATE ASSEMBLY, FRONT COVERPLATE ASSEMBLY, FRONT COVER
-
3576264 LATCH, FRONT COVERLATCH, FRONT COVER
-
3624-60295 SPRING, FRONT COVER LATCHSPRING, FRONT COVER LATCH
-
3710-28635 SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")
-
3887764 BRACKET, REAR - LOWER MOUNTBRACKET, REAR - LOWER MOUNT
-
3910-76596 SCREW, REAR BRACKET ATTACHINGSCREW, REAR BRACKET ATTACHING
-
4090435 MOUNT, RUBBER - REAR COWL SUPPORTMOUNT, RUBBER - REAR COWL SUPPORT
-
4188238A3 GROUND STRAP ASSEMBLYGROUND STRAP ASSEMBLY
-
4212-69057 WASHER, RUBBER MOUNTWASHER, RUBBER MOUNT
-
4311-8267089 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
4491891 WEAR PLATE, SOUND ATTENUATORWEAR PLATE, SOUND ATTENUATOR
