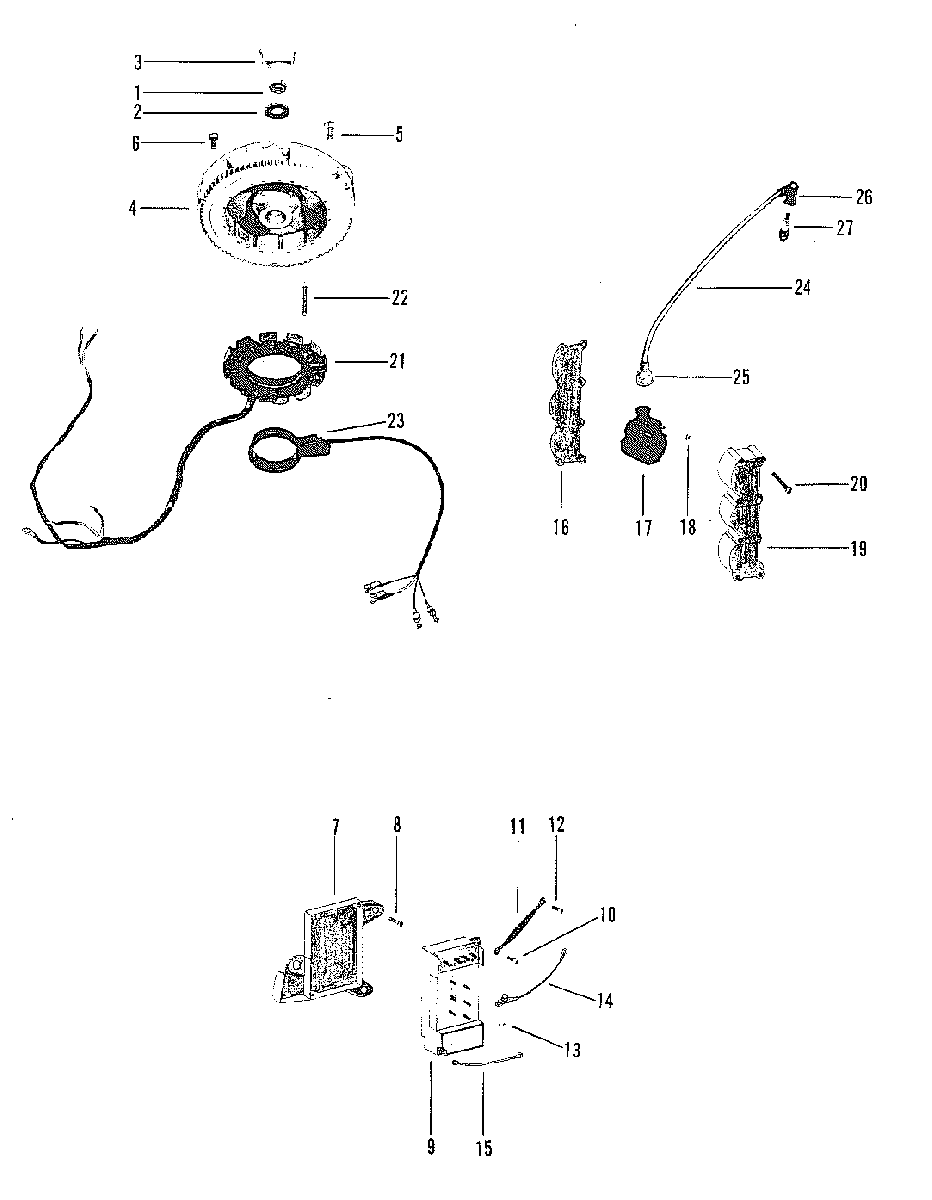

FLYWHEEL, SWITCH BOX, IGNITION COIL, STATOR для Mariner - 70 5702220 THRU 6428680

  • №
    Артикул
    Название
  • 1
    11-52901 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    19-45907 PLUG, FLYWHEEL PULLER THREADS
    PLUG, FLYWHEEL PULLER THREADS
  • 4
    248-8722A5 FLYWHEEL ASSEMBLY
    UNITED STATES 6322885 AND BELOW
    FLYWHEEL ASSEMBLY
    UNITED STATES 6322885 AND BELOW
  • 4
    248-8722A5 FLYWHEEL ASSEMBLY
    UNITED STATES 6322886 AND UP
    FLYWHEEL ASSEMBLY
    UNITED STATES 6322886 AND UP
  • 5
    10-68997 SCREW, PLATE/HUB (3/4")
    SCREW, PLATE/HUB (3/4")
  • 6
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
  • 7
    889351 PLATE, SWITCH BOX
    PLATE, SWITCH BOX
  • 8
    10-824941 SCREW, SWITCH BOX PLATE (3/4")
    SCREW, SWITCH BOX PLATE (3/4")
  • 9
    332-7778A12 SWITCH BOX ASSEMLBY
    SWITCH BOX ASSEMLBY
  • 10
    10-20619 SCREW, SWITCH BOX TO PLATE (1-1/8")
    SCREW, SWITCH BOX TO PLATE (1-1/8")
  • 11
    84-60466A8 WIRE ASSEMBLY, SWITCH BOX SCREW
    WIRE ASSEMBLY, SWITCH BOX SCREW
  • 12
    10-62568 SCREW, WIRE ATTACHING
    SCREW, WIRE ATTACHING
  • 13
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 14
    84-60443A3 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)
    WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)
  • 14
    84-62822A1 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/WHITE)
    WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/WHITE)
  • 14
    84-68896A4 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/RED)
    WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/RED)
  • 15
    84-60466A1 WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK)
    WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK)
  • 16
    73439 PLATE, MOUNTING - IGNITION COIL
    PLATE, MOUNTING - IGNITION COIL
  • 17
    339-832757A4 IGNITION COIL ASSEMBLY
    IGNITION COIL ASSEMBLY
  • 18
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 19
    43542 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 20
    10-92399 SCREW, COVER TO MOUNTING PLAT (2-1/4")
    SCREW, COVER TO MOUNTING PLAT (2-1/4")
  • 21
    398-5704A7 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 22
    10-63136 SCREW, STATOR TO UPPER END CAP (7/8")
    SCREW, STATOR TO UPPER END CAP (7/8")
  • 23
    96455A8 TRIGGER PLATE ASSEMBLY
    TRIGGER PLATE ASSEMBLY
  • 24
    84-813715A1 WIRE ASSEMBLY, SPARK PLUG
    WIRE ASSEMBLY, SPARK PLUG
  • 25
    332-2854T01 BOOT, IGNITION COIL END
    BOOT, IGNITION COIL END
  • 26
    85-63709A1 PROTECTOR ASSEMBLY
    PROTECTOR ASSEMBLY
  • 27
    33-97180Q SPARK PLUG (AC#40FFM)
    SPARK PLUG (AC#40FFM)
  • 27
    33-14103550 SPARK PLUG (CHAMPION#QL-76V)/CANADA AND BELGIUM
    SPARK PLUG (CHAMPION#QL-76V)/CANADA AND BELGIUM
