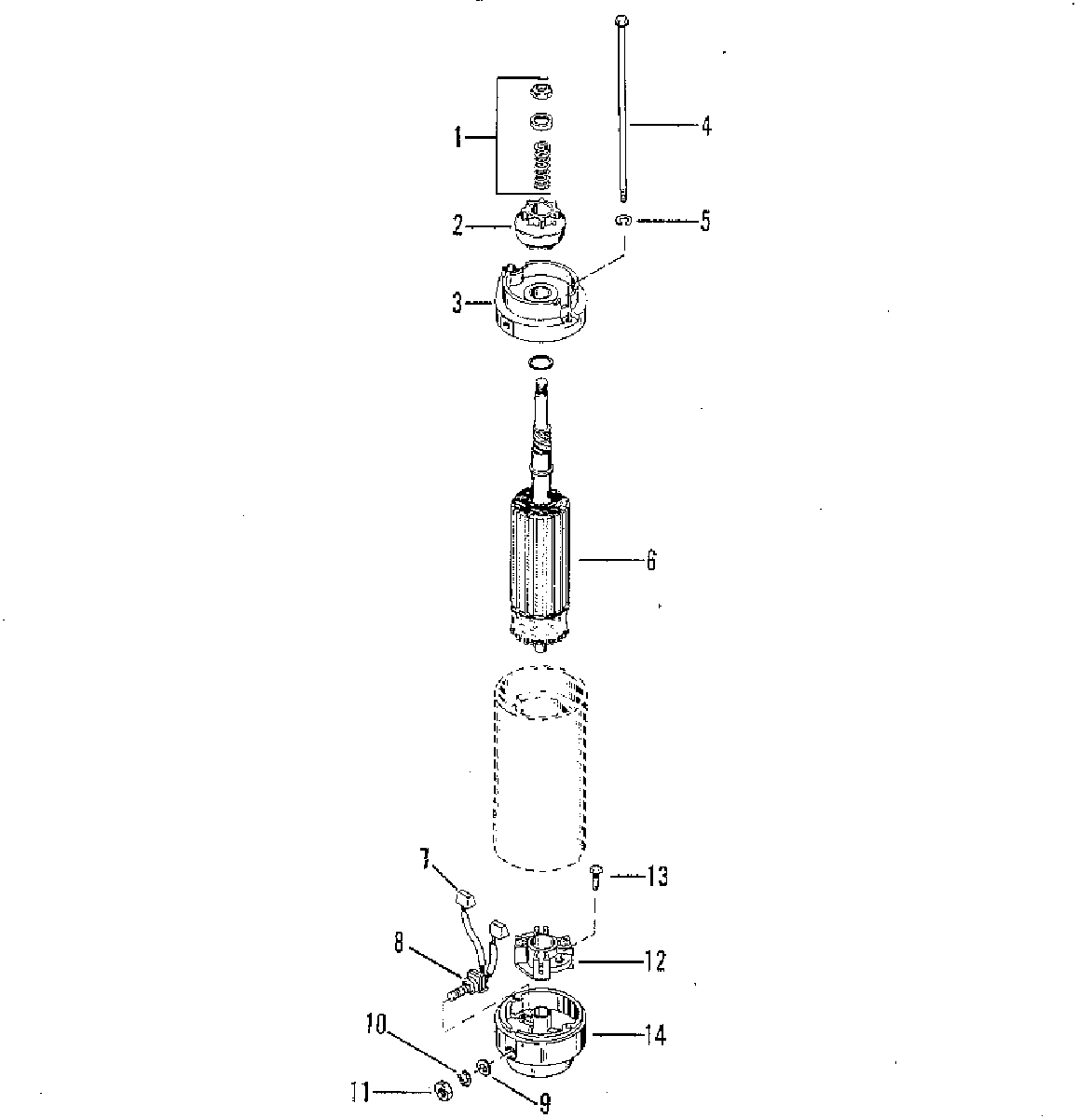

STARTER MOTOR ASSEMBLY (BOSCH) для Mariner - 70 5702220 THRU 6428680
-
№АртикулНазвание
-
-50-44369A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190643 DRIVE KITDRIVE KIT
-
2685753 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
3N.S.S. PLATE, DRIVE ENDPLATE, DRIVE END
-
410-68576 BOLT, THRU - PLATE TO END CAPBOLT, THRU - PLATE TO END CAP
-
513-61789 LOCKWASHER, THRU BOLTLOCKWASHER, THRU BOLT
-
668578 ARMATUREARMATURE
-
7898265016 BRUSH SETBRUSH SET
-
823-57387 BUSHING, INSULATING - INPUT STUDBUSHING, INSULATING - INPUT STUD
-
912-38013 WASHER, INPUT STUDWASHER, INPUT STUD
-
1013-26992 LOCKWASHER, INPUT STUDLOCKWASHER, INPUT STUD
-
1111-20890 NUT, INPUT STUDNUT, INPUT STUD
-
12898265014 HOLDER, BRUSHHOLDER, BRUSH
-
1310-68586 SCREW, BRUSH AND HOLDER TO CAPSCREW, BRUSH AND HOLDER TO CAP
-
1415386001 END CAP, COMMUTATOREND CAP, COMMUTATOR
