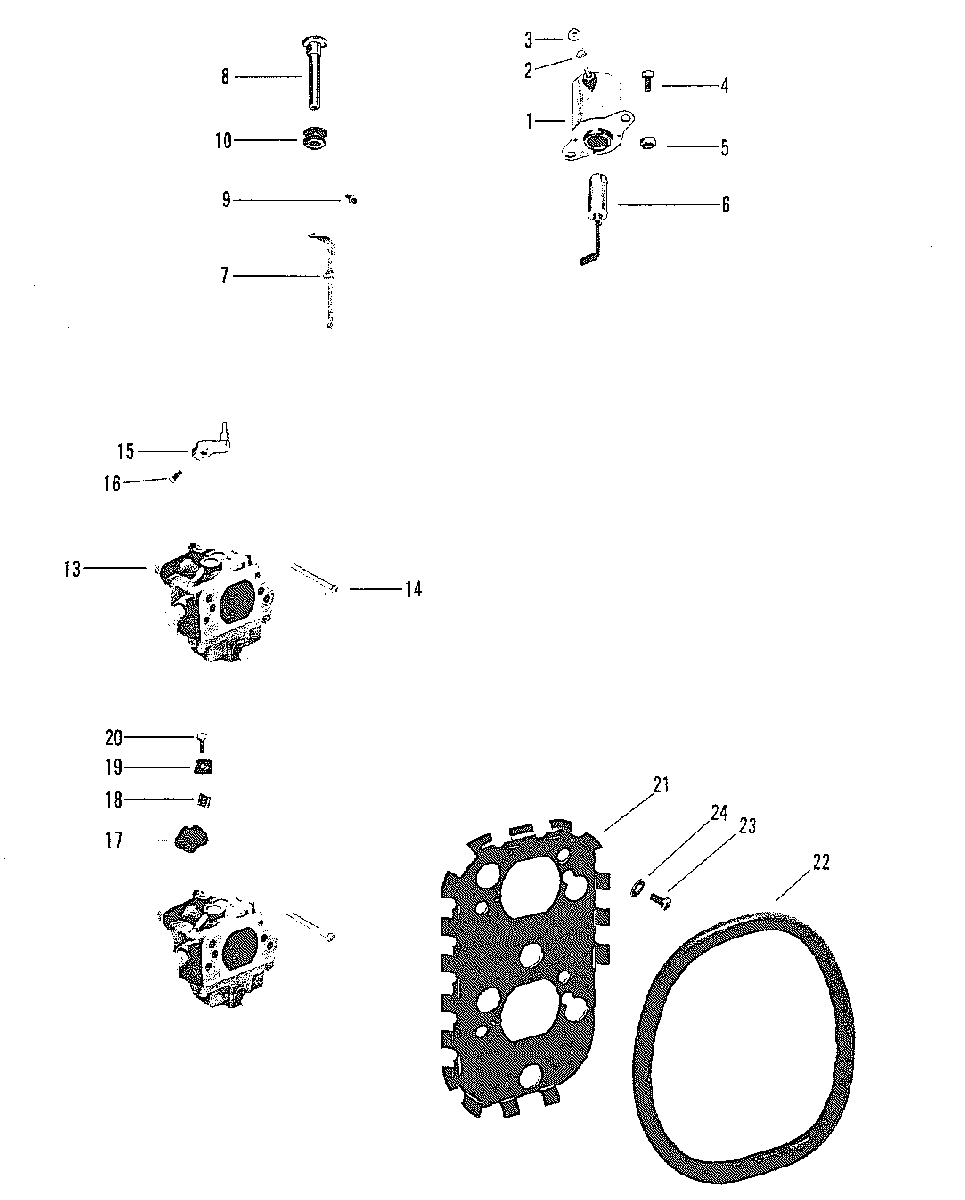

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mariner - 70 5702220 THRU 6428680
-
№АртикулНазвание
-
160549A7 CHOKE SOLENOIDCHOKE SOLENOID
-
213-26996 LOCKWASHER, CHOKE SOLENOID TERMINALLOCKWASHER, CHOKE SOLENOID TERMINAL
-
311-68219 NUT, CHOKE SOLENOID TERMINALNUT, CHOKE SOLENOID TERMINAL
-
410-33524 SCREW, CHOKE SOLENOID (5/8")SCREW, CHOKE SOLENOID (5/8")
-
410-78841 SCREW, CHOKE SOLENOID (1-1/2")SCREW, CHOKE SOLENOID (1-1/2")
-
511-29250 NUT, CHOKE SOLENOID SCREWSNUT, CHOKE SOLENOID SCREWS
-
689008A2 PLUNGER ASSEMBLY, CHOKE SOLENOIDPLUNGER ASSEMBLY, CHOKE SOLENOID
-
776076A1 CHOKE RODCHOKE ROD
-
890242A1 CHOKE KNOB ASSEMBLYCHOKE KNOB ASSEMBLY
-
910-77137 SCREW, WIRE TO CHOKE KNOBSCREW, WIRE TO CHOKE KNOB
-
1025-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
131379-6071A29 CARBURETOR ASSEMBLY (WM-11)CARBURETOR ASSEMBLY (WM-11)
-
131379-6071A39 CARBURETOR ASSEMBLY (WM-13)CARBURETOR ASSEMBLY (WM-13)
-
1410-52743 SCREW, CARBURETOR TO CRANKCASE (3-3/4")SCREW, CARBURETOR TO CRANKCASE (3-3/4")
-
1577583 LEVER, THROTTLELEVER, THROTTLE
-
1610-60293 SCREW, LEVER TO CARBURETORSCREW, LEVER TO CARBURETOR
-
1760292A1 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
1828-89694 KEY, THROTTLE SHAFT COUPLINGKEY, THROTTLE SHAFT COUPLING
-
1911-92500 PUSH NUT, ROLLER - COUPLINGPUSH NUT, ROLLER - COUPLING
-
2010-60293 SCREW, ROLLED WASHER TO COUPLINGSCREW, ROLLED WASHER TO COUPLING
-
2191996A1 PLATE ASSEMBLY, CARBURETORPLATE ASSEMBLY, CARBURETOR
-
2271090 SEAL, CARBURETOR PLATESEAL, CARBURETOR PLATE
-
2310-20367 SCREW, PLATE TO CARBURETOR (7/16")SCREW, PLATE TO CARBURETOR (7/16")
-
2412-29245 WASHER, PLATE SCREWWASHER, PLATE SCREW
