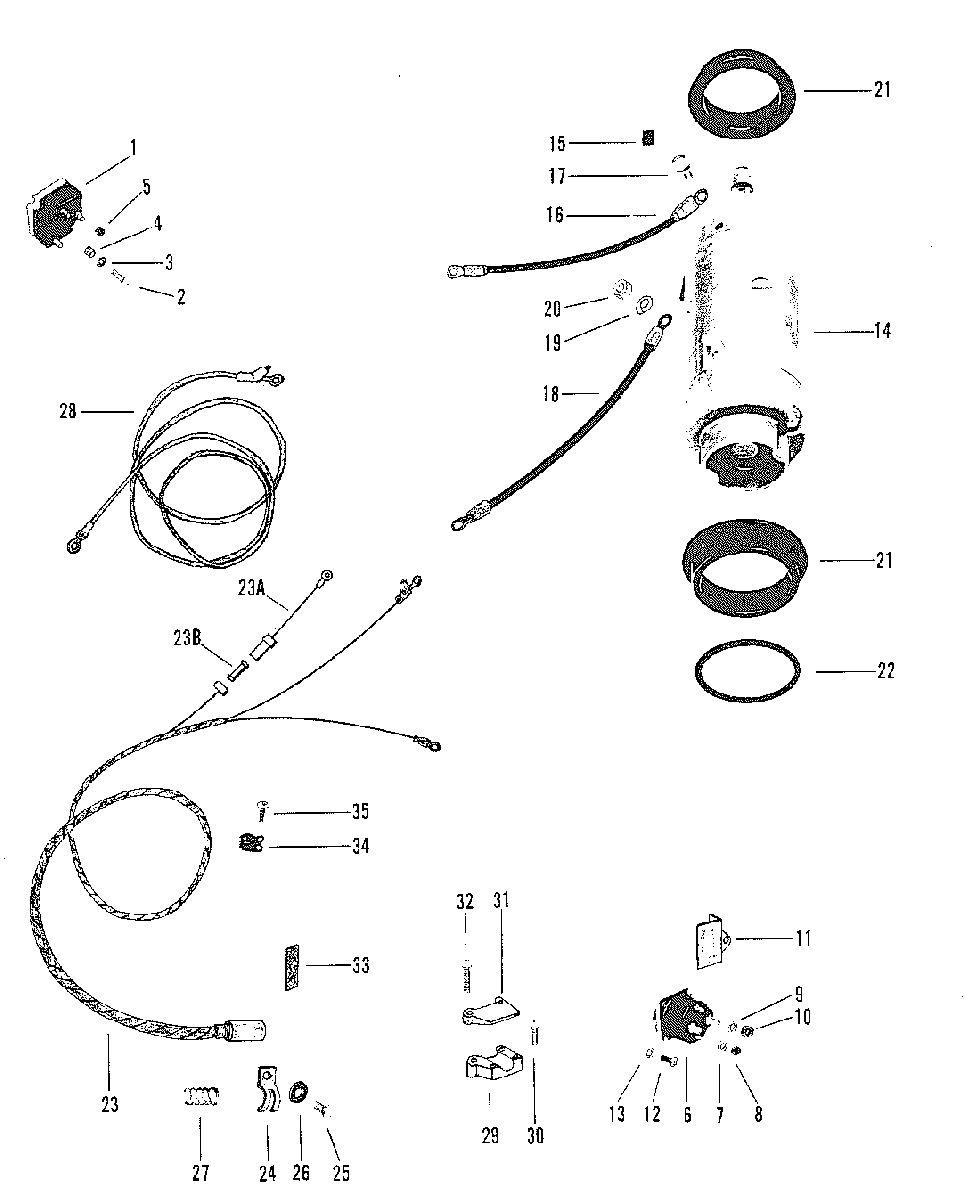

STARTER MOTOR, STARTER SOLENOID, RECTIFIER для Mariner - 70 5702220 THRU 6428680

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER
    RECTIFIER
  • 2
    10-38055 SCREW, RECTIFIER TO PLATE (5/8")
    SCREW, RECTIFIER TO PLATE (5/8")
  • 3
    13-26996 LOCKWASHER, RECTIFIER SCREW
    LOCKWASHER, RECTIFIER SCREW
  • 4
    23-94304 SPACER, RECTIFIER SCREW
    SPACER, RECTIFIER SCREW
  • 5
    11-45076 NUT, RECTIFIER TERMINAL
    NUT, RECTIFIER TERMINAL
  • 6
    89-853654A1 STARTER SOLENOID
    UNITED STATES 6104269 AND BELOW
    STARTER SOLENOID
    UNITED STATES 6104269 AND BELOW
  • 7
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    UNITED STATES 6104269 AND BELOW
    LOCKWASHER, SOLENOID TERMINAL (#10)
    UNITED STATES 6104269 AND BELOW
  • 8
    11-68219 NUT, SOLENOID TERMINAL (#10)
    UNITED STATES 6104269 AND BELOW
    NUT, SOLENOID TERMINAL (#10)
    UNITED STATES 6104269 AND BELOW
  • 9
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")
    UNITED STATES 6104269 AND BELOW
    LOCKWASHER, SOLENOID TERMINAL (5/16")
    UNITED STATES 6104269 AND BELOW
  • 10
    11-68292 NUT, SOLENOID TERMINAL (5/16")
    UNITED STATES 6104269 AND BELOW
    NUT, SOLENOID TERMINAL (5/16")
    UNITED STATES 6104269 AND BELOW
  • 6
    89-96054T STARTER SOLENOID
    UNITED STATES 6104270 AND UP
    STARTER SOLENOID
    UNITED STATES 6104270 AND UP
  • 7
    13-26995 LOCKWASHER, SOLENOID TERMINAL (#8)
    UNITED STATES 6104270 AND UP
    LOCKWASHER, SOLENOID TERMINAL (#8)
    UNITED STATES 6104270 AND UP
  • 8
    11-26419 NUT, SOLENOID TERMINAL (#8-32)
    UNITED STATES 6104270 AND UP
    NUT, SOLENOID TERMINAL (#8-32)
    UNITED STATES 6104270 AND UP
  • 9
    13-26992 LOCKWASHER, SOLENOID TERMINAL (#1/4)
    UNITED STATES 6104270 AND UP
    LOCKWASHER, SOLENOID TERMINAL (#1/4)
    UNITED STATES 6104270 AND UP
  • 10
    11-94330 NUT, SOLENOID TERMINAL (1/2-20)
    UNITED STATES 6104270 AND UP
    NUT, SOLENOID TERMINAL (1/2-20)
    UNITED STATES 6104270 AND UP
  • 11
    85-78866 INSULATOR, STARTER SOLENOID
    INSULATOR, STARTER SOLENOID
  • 11
    85-97861 INSULATOR, STARTER SOLENOID
    INSULATOR, STARTER SOLENOID
  • 12
    10-69054 SCREW, SOLENOID TO ATTENUATOR (5/8")
    SCREW, SOLENOID TO ATTENUATOR (5/8")
  • 13
    13-26992 LOCKWASHER, SOLENOID SCREW
    LOCKWASHER, SOLENOID SCREW
  • 14
    50-44369A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 15
    8M0043376 STOP, RUBBER - STARTER MOTOR
    STOP, RUBBER - STARTER MOTOR
  • 16
    84-93388A1 CABLE, STARTER TO SOUND ATTENUATOR - BLACK
    CABLE, STARTER TO SOUND ATTENUATOR - BLACK
  • 17
    10-69035 SCREW, CABLE TO STARTER MOTOR (5/8")
    SCREW, CABLE TO STARTER MOTOR (5/8")
  • 18
    84-93389A6 CABLE, SOLENOID TO STARTER MOTOR (YELLOW) - 9-1/2"
    CABLE, SOLENOID TO STARTER MOTOR (YELLOW) - 9-1/2"
  • 19
    13-26992 LOCKWASHER, STARTER MOTOR TERMINAL
    LOCKWASHER, STARTER MOTOR TERMINAL
  • 20
    11-20890 NUT, STARTER MOTOR TERMINAL
    NUT, STARTER MOTOR TERMINAL
  • 21
    23-8M0034918 COLLAR, RUBBER - STARTER MOUNT
    COLLAR, RUBBER - STARTER MOUNT
  • 22
    23-56774 SPACER, COLLAR TO MOUNTING BRACKETS
    SPACER, COLLAR TO MOUNTING BRACKETS
  • 23
    84-96271A2 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 23A
    84-95084A2 WIRE ASSEMBLY, FUSE
    WIRE ASSEMBLY, FUSE
  • 23B
    88-79091 FUSE
    FUSE
  • 24
    54-88167 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 25
    10-23702 SCREW, WIRING HARNESS CLAMP
    SCREW, WIRING HARNESS CLAMP
  • 26
    12-72761 WASHER, WIRING HARNESS CLAMP SCREW
    WASHER, WIRING HARNESS CLAMP SCREW
  • 27
    24-28357 SPRING, WIRING HARNESS
    SPRING, WIRING HARNESS
  • 28
    84-88439A7 BATTERY CABLE (POSITIVE)
    BATTERY CABLE (POSITIVE)
  • 28
    84-88439A4 BATTERY CABLE (NEGATIVE)
    BATTERY CABLE (NEGATIVE)
  • 29
    88683 BRACKET, WIRING HARNESS SUPPORT
    BRACKET, WIRING HARNESS SUPPORT
  • 30
    10-23015 SCREW, BRACKET ATTACHING
    SCREW, BRACKET ATTACHING
  • 31
    88682 COVER, HARNESS SUPPORT BRACKET
    COVER, HARNESS SUPPORT BRACKET
  • 32
    10-25158 SCREW, COVER TO BRACKET (1-3/4")
    SCREW, COVER TO BRACKET (1-3/4")
  • 33
    26-60925 SEAL, WIRING HARNESS BRACKET
    SEAL, WIRING HARNESS BRACKET
  • 34
    54-28700 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 35
    10-73286 SCREW, WIRING HARNESS CLAMP
    SCREW, WIRING HARNESS CLAMP
