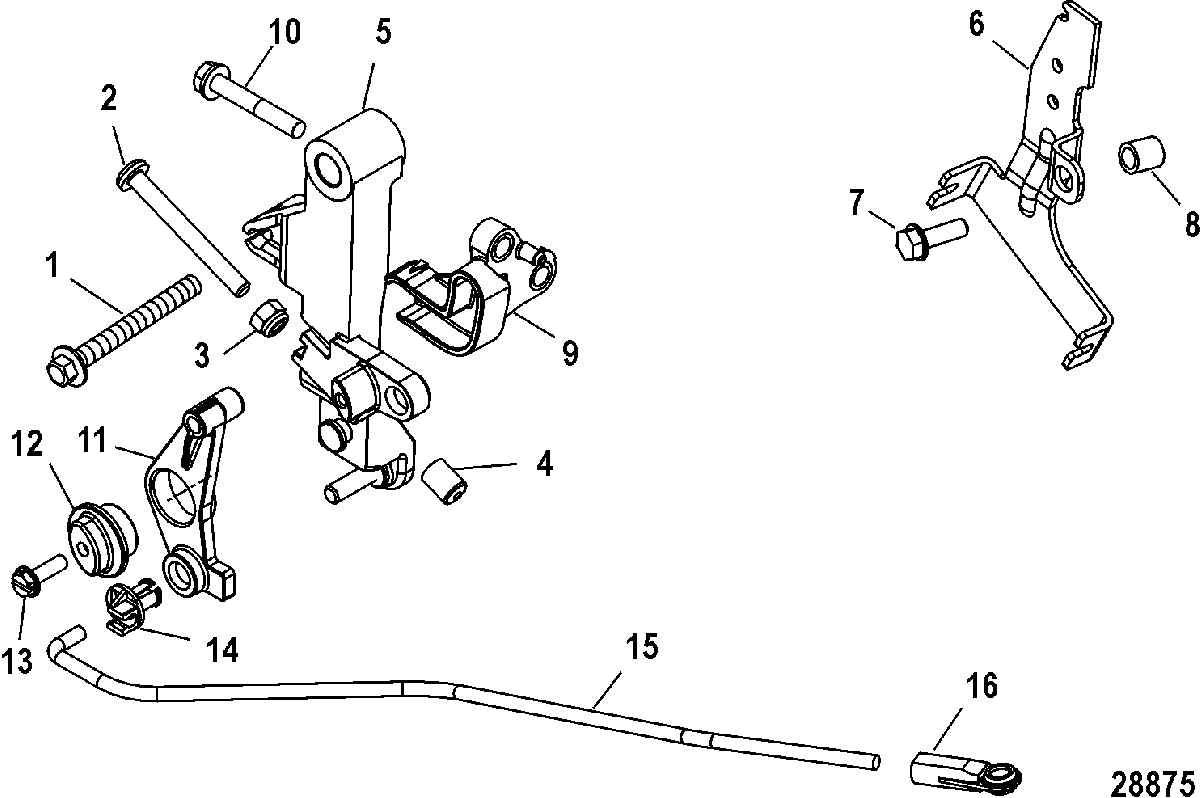

Throttle Linkage, Tiller для Mariner - 60 EFI (4 CYL.)(4-STROKE) 1C050252 & Up

  • №
    Артикул
    Название
  • 1
    10-4010770 SCREW, (M8 x 70)
    SCREW, (M8 x 70)
  • 2
    10-8147763 SCREW, (M6 x 60)
    SCREW, (M6 x 60)
  • 3
    11-401196 NUT, (M6)
    NUT, (M6)
  • 4
    42942 CAP
    CAP
  • 5
    822682A4 LEVER ASSEMBLY, Throttle
    LEVER ASSEMBLY, Throttle
  • 6
    830294T3 BRACKET
    BRACKET
  • 7
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 8
    23-825078 BUSHING
    BUSHING
  • 9
    879865 CAM, Throttle
    CAM, Throttle
  • 10
    10-8248329 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 11
    883006A1 ARM ASSEMBLY, Throttle
    ARM ASSEMBLY, Throttle
  • 12
    23-883005 BUSHING
    BUSHING
  • 13
    10-8214281 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 14
    23-932481 BUSHING
    BUSHING
  • 15
    893775A01 LINK ASSEMBLY, Throttle
    LINK ASSEMBLY, Throttle
  • 16
    8M0084742 SOCKET
    SOCKET
  • -
    880093A03 TILLER HANDLE KIT, Remote Control to Tiller Handle
    TILLER HANDLE KIT, Remote Control to Tiller Handle
