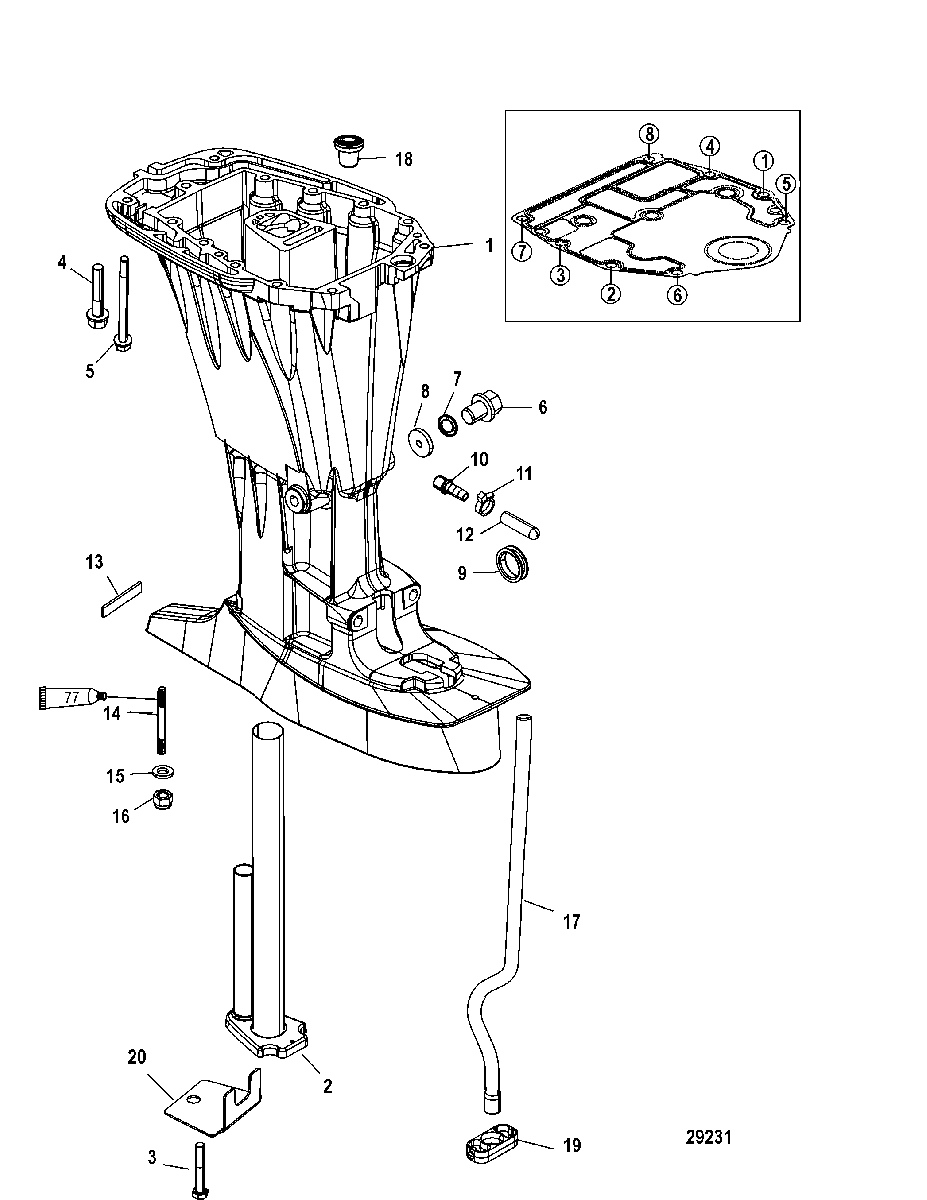

Driveshaft Housing для Mariner - 60 EFI (4 CYL.)(4-STROKE) 1C050252 & Up

  • №
    Артикул
    Название
  • 1
    1500-8M0118178 HOUSING, Driveshaft - Long
    HOUSING, Driveshaft - Long
  • 1
    1503-852421T09 HOUSING, Driveshaft
    Jet
    HOUSING, Driveshaft
    Jet
  • 2
    825220T06 PIPE, Exhaust
    Long
    PIPE, Exhaust
    Long
  • 2
    NSS NOT SOLD SEPARATE, Retainer Assembly
    Jet
    NOT SOLD SEPARATE, Retainer Assembly
    Jet
  • 3
    10-1993325 SCREW, (M10 x 25 MM)
    Long
    SCREW, (M10 x 25 MM)
    Long
  • 3
    10-1993325 SCREW, (M10 x 25)
    Jet
    SCREW, (M10 x 25)
    Jet
  • 4
    10-88960845 SCREW, (M8 x 45)
    SCREW, (M8 x 45)
  • 5
    10-824459110 SCREW, (M8 x 110) Stainless Steel
    SCREW, (M8 x 110) Stainless Steel
  • 6
    8288181 PLUG, Drain
    PLUG, Drain
  • 7
    26-8M0007119 SEAL
    SEAL
  • 8
    826276 BUMPER
    BUMPER
  • 9
    25-8M4504002 GROMMET
    Non-Jet
    GROMMET
    Non-Jet
  • 10
    22-13035002 FITTING
    Non-Jet
    FITTING
    Non-Jet
  • 11
    54-816311T TIE STRAP, (8.00 Inches)
    Non-Jet
    TIE STRAP, (8.00 Inches)
    Non-Jet
  • 12
    19-892286 CAP
    Non-Jet
    CAP
    Non-Jet
  • 13
    8M0043364 BUMPER
    Non-Jet
    BUMPER
    Non-Jet
  • 14
    16-823984 STUD, (M10 x 50)
    Non-Bigfoot/Non-Jet
    STUD, (M10 x 50)
    Non-Bigfoot/Non-Jet
  • 14
    16-903501 STUD, (M10 x 100)
    Bigfoot/Non-Jet
    STUD, (M10 x 100)
    Bigfoot/Non-Jet
  • 15
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 16
    11-40140 NUT, (M10)
    Non-Jet
    NUT, (M10)
    Non-Jet
  • 17
    32-897971A01 TUBE/SEAL KIT, Water - Long
    TUBE/SEAL KIT, Water - Long
  • 17
    32-897970A01 TUBE/SEAL KIT, Water - Short
    Jet
    TUBE/SEAL KIT, Water - Short
    Jet
  • 18
    26-8M0109684 SEAL, Water
    SEAL, Water
  • 19
    54-828529 GUIDE
    GUIDE
  • 20
    8M4503628 PLATE, Driveshaft Housing
    PLATE, Driveshaft Housing
