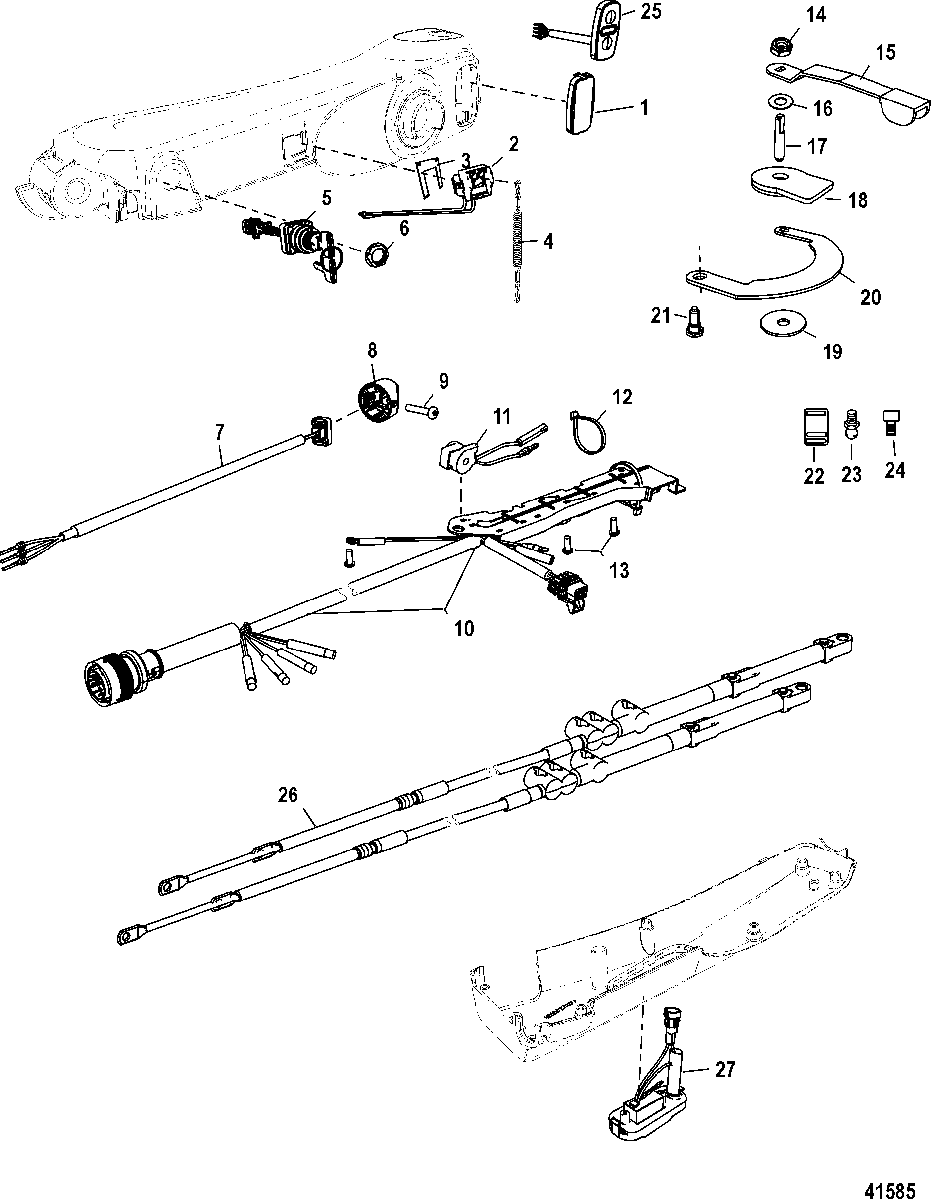

Big Tiller Handle Kit Components, 40-60 EFI 4-Stroke, Manual для Mariner - 60 EFI (4 CYL.)(4-STROKE) 1C050252 & Up

  • №
    Артикул
    Название
  • -
    879291A04 TILLER HANDLE ASSEMBLY, Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering
    40-50-60 EFI FourStroke
    TILLER HANDLE ASSEMBLY, Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering
    40-50-60 EFI FourStroke
  • 1
    879346T20 COVER
    COVER
  • 2
    879347A01 EMERGENCY STOP SWITCH
    EMERGENCY STOP SWITCH
  • 3
    8M0032846 RETAINER, Brass
    RETAINER, Brass
  • 4
    8M0092851 LANYARD ASSEMBLY, Stop Switch - 70 inch
    LANYARD ASSEMBLY, Stop Switch - 70 inch
  • 5
    87-897716K01 SWITCH KIT, Ignition (3 Position) With Keys
    See Switch Kit parts breakdown for replacement keys.
    SWITCH KIT, Ignition (3 Position) With Keys
    See Switch Kit parts breakdown for replacement keys.
  • 6
    11-897716001 NUT, Plastic-Key Switch
    NUT, Plastic-Key Switch
  • 7
    8M0125238 TRIM SWITCH ASSEMBLY
    TRIM SWITCH ASSEMBLY
  • 8
    8M0030401 CAP, Handle Trim Switch
    CAP, Handle Trim Switch
  • 9
    10-4005685 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 10
    879347A03 HARNESS AND PLATE ASSEMBLY
    HARNESS AND PLATE ASSEMBLY
  • 11
    84-8M3001068 ALARM ASSEMBLY, Audio Warning
    ALARM ASSEMBLY, Audio Warning
  • 12
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 13
    10-4005685 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 14
    11-8M0042636 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 15
    823792 LEVER
    LEVER
  • 16
    12-29330 WASHER
    WASHER
  • 17
    821961 ROD
    ROD
  • 18
    8M0006845 PLATE/DISC ASSEMBLY, Brake
    PLATE/DISC ASSEMBLY, Brake
  • 19
    8165621 DISC
    DISC
  • 20
    8M0007471 PLATE, Swivel Head
    PLATE, Swivel Head
  • 21
    10-768042 SHOULDER SCREW, Hex
    SHOULDER SCREW, Hex
  • 22
    37-8237011 DECAL, Co-Pilot
    DECAL, Co-Pilot
  • 23
    22-74036 FITTING, Grease
    FITTING, Grease
  • 24
    10-4008910 SCREW, (M8 x 10) Stainless Steel
    SCREW, (M8 x 10) Stainless Steel
  • 25
    87-8M0083437 CONTROL KIT, Trolling
    CONTROL KIT, Trolling
  • 26
    8M0082354 THROTTLE AND SHIFT KIT, 40-60 EFI FourStroke (32.5 In. Shift, 36 In. Throttle)
    Order Separate-Mechanical Application
    THROTTLE AND SHIFT KIT, 40-60 EFI FourStroke (32.5 In. Shift, 36 In. Throttle)
    Order Separate-Mechanical Application
  • 27
    87-897978T02 LED LIGHT AND SWITCH KIT
    Optional - Order Separate
    LED LIGHT AND SWITCH KIT
    Optional - Order Separate
