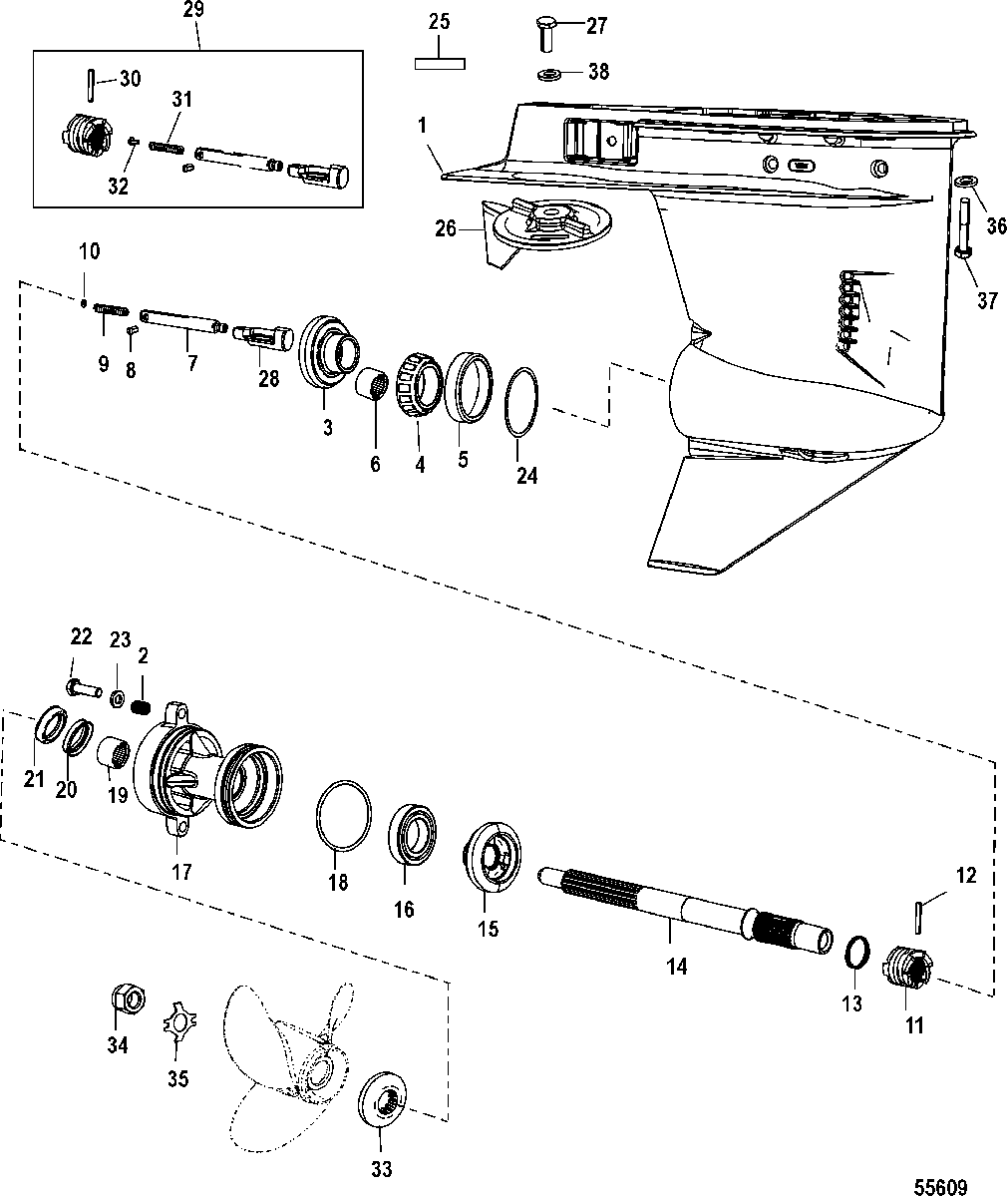

Gear Housing, Propeller Shaft - 1.83:1 Gear Ratio для Mariner - 60 EFI (4 CYL.)(4-STROKE) 1C050252 & Up

  • №
    Артикул
    Название
  • -
    8M0086325 GEAR HOUSING ASSEMBLY, Complete
    SN# 1C267558 & Below
    GEAR HOUSING ASSEMBLY, Complete
    SN# 1C267558 & Below
  • -
    8M0086325 GEAR HOUSING ASSEMBLY, Complete
    SN# 1C267559 & Up
    GEAR HOUSING ASSEMBLY, Complete
    SN# 1C267559 & Up
  • 1
    893680T06 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    8227731 INSERT, Threaded
    INSERT, Threaded
  • 3
    43-859101T03 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 4
    31-889246A95 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 5
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 6
    31-21700 BEARING, Needle
    BEARING, Needle
  • 7
    8M0005743 ROD ACTUATOR
    ROD ACTUATOR
  • 8
    17-8M0084682 PIN, Spring
    PIN, Spring
  • 9
    24-79910 SPRING
    Design I SN# 1C267558 & Below
    SPRING
    Design I SN# 1C267558 & Below
  • 10
    12-78910 WASHER
    WASHER
  • 11
    52-821314T01 CLUTCH
    CLUTCH
  • 12
    17-8M0091340 PIN, Cross
    Design I SN# 1C267558 & Below
    PIN, Cross
    Design I SN# 1C267558 & Below
  • 13
    24-38114 SPRING
    SPRING
  • 14
    44-826193T03 PROPELLER SHAFT
    PROPELLER SHAFT
  • 15
    43-859104T01 GEAR, Reverse
    GEAR, Reverse
  • 16
    30-20839T BEARING, Ball
    BEARING, Ball
  • 17
    19291A3 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 18
    25-815460 O-RING
    O-RING
  • 19
    31-21700 BEARING, Needle
    BEARING, Needle
  • 20
    26-69188 SEAL, Oil
    SEAL, Oil
  • 21
    26-69189 SEAL, Oil
    SEAL, Oil
  • 22
    10-85594030 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 23
    12-855941 WASHER, (.323 x .590 x .112) Stainless Steel
    WASHER, (.323 x .590 x .112) Stainless Steel
  • 24
    15-8M0063264 SHIM SET
    SHIM SET
  • 25
    NSS NOT SOLD SEPARATE, Decal-Gear Ratio
    NOT SOLD SEPARATE, Decal-Gear Ratio
  • 26
    822157T03 TRIM TAB, Aluminum
    TRIM TAB, Aluminum
  • 26
    17264T2 TRIM TAB, Zinc
    TRIM TAB, Zinc
  • 27
    10-1996230 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 28
    842071A01 CAM, Follower
    CAM, Follower
  • 29
    17-8M0091340 SPRING / PIN KIT
    Design II SN# 1C267559 & Up
    SPRING / PIN KIT
    Design II SN# 1C267559 & Up
  • 30
    NSS NOT SOLD SEPARATE, PIN
    Design II SN# 1C267559 & Up
    NOT SOLD SEPARATE, PIN
    Design II SN# 1C267559 & Up
  • 31
    NSS NOT SOLD SEPARATE, SPRING
    Design II SN# 1C267559 & Up
    NOT SOLD SEPARATE, SPRING
    Design II SN# 1C267559 & Up
  • 32
    NSS NOT SOLD SEPARATE, GUIDE,Spring
    Design II SN# 1C267559 & Up
    NOT SOLD SEPARATE, GUIDE,Spring
    Design II SN# 1C267559 & Up
  • 33
    73345A1 THRUST HUB
    THRUST HUB
  • 34
    11-69578Q1 PROP NUT KIT
    PROP NUT KIT
  • 35
    14-76281 TAB WASHER
    TAB WASHER
  • 36
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 37
    10-4000380 SCREW, (M10 x 45)
    SCREW, (M10 x 45)
  • 38
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • -
    26-814669A2 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
