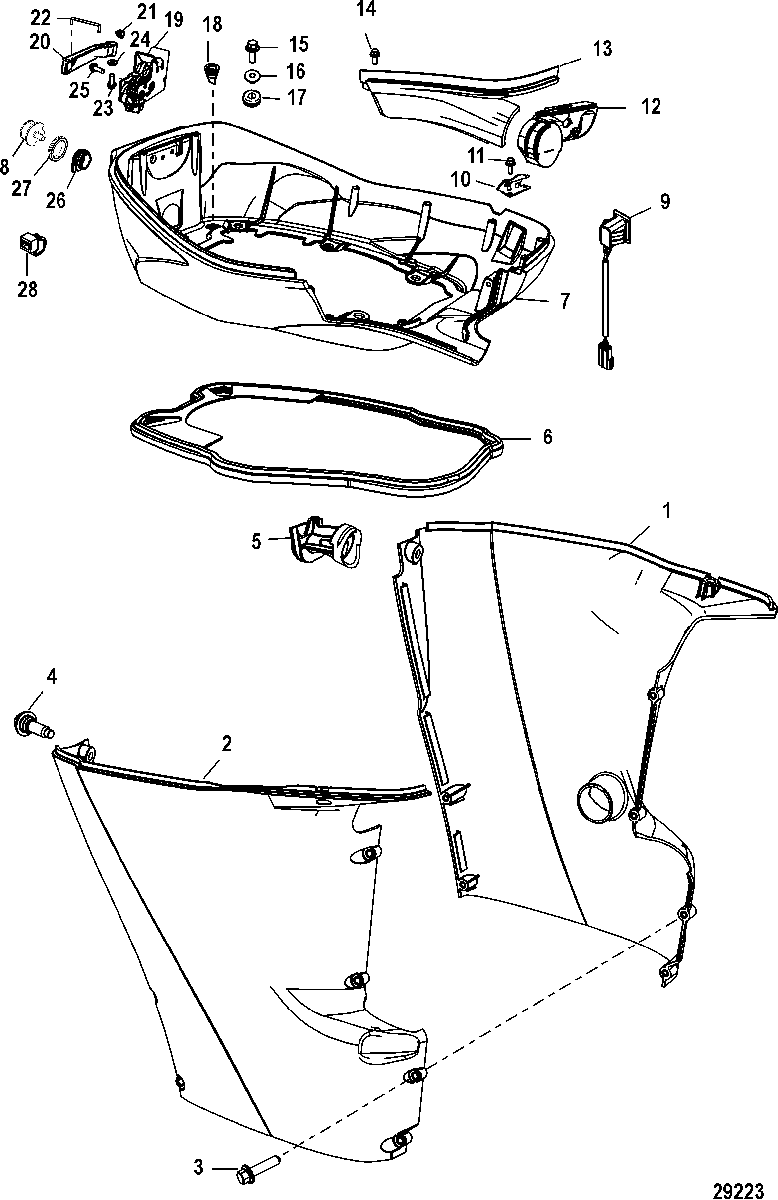

Bottom Cowl для Mariner - 60 EFI (4 CYL.)(4-STROKE) 1C050252 & Up

  • №
    Артикул
    Название
  • 1
    4020-826277T04 CHAP, Long - Port
    CHAP, Long - Port
  • 1
    4020-826277T05 CHAP, Long - Port - Camouflage
    CHAP, Long - Port - Camouflage
  • 1
    4020-852554T03 CHAP, Short - Port
    Jet
    CHAP, Short - Port
    Jet
  • 2
    4020-826278T08 CHAP, Long - Starboard
    CHAP, Long - Starboard
  • 2
    4020-826278T09 CHAP, Long - Starboard - Camouflage
    CHAP, Long - Starboard - Camouflage
  • 2
    4020-852555T06 CHAP, Short - Starboard
    Jet
    CHAP, Short - Starboard
    Jet
  • 3
    10-8M0022324 SCREW, (M6 x 25 MM)
    Quantity of 4 on Jet
    SCREW, (M6 x 25 MM)
    Quantity of 4 on Jet
  • 4
    10-892073002 SHOULDER SCREW, (M6)
    SHOULDER SCREW, (M6)
  • 5
    8M0109713 BOOT
    BOOT
  • 6
    8M0026035 SEAL
    SEAL
  • 7
    889246T99 PAN
    PAN
  • 8
    22-827948 FITTING
    FITTING
  • 9
    87-8M0042300 SWITCH, Trim
    SWITCH, Trim
  • 10
    8M4501716 HOOK
    HOOK
  • 11
    10-8M0103806 SCREW, (M6 x 20 MM) Stainless Steel
    SCREW, (M6 x 20 MM) Stainless Steel
  • 12
    8M4502035 GROMMET
    GROMMET
  • 13
    879147T24 CAP
    CAP
  • 13
    879147T24 CAP, Camouflage
    CAP, Camouflage
  • 14
    10-8M0103806 SCREW, (M6 x 20 MM) Stainless Steel
    SCREW, (M6 x 20 MM) Stainless Steel
  • 15
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 16
    23-856954 BUSHING
    BUSHING
  • 17
    25-8M0025696 GROMMET
    GROMMET
  • 18
    888819002 DRAIN, Cowl
    DRAIN, Cowl
  • 19
    822426T03 LATCH ASSEMBLY, Rear
    SN# 1C081902 & Below
    LATCH ASSEMBLY, Rear
    SN# 1C081902 & Below
  • 19
    822426T03 LATCH ASSEMBLY, Rear
    SN# 1C081903 & Up
    LATCH ASSEMBLY, Rear
    SN# 1C081903 & Up
  • 20
    822426T03 HANDLE, Rear Latch
    SN# 1C081902 & Below
    HANDLE, Rear Latch
    SN# 1C081902 & Below
  • 20
    NSS NOT SOLD SEPARATE, Handle-Rear Latch
    SN# 1C081903 & Up
    NOT SOLD SEPARATE, Handle-Rear Latch
    SN# 1C081903 & Up
  • 21
    8M0006060 SEAL
    SEAL
  • 22
    822426T03 LINK
    LINK
  • 23
    10-88552514 SCREW, (M6 x 14 MM) Stainless Steel
    SCREW, (M6 x 14 MM) Stainless Steel
  • 24
    12-897936 WASHER
    WASHER
  • 25
    10-8M0103806 SCREW, (M6 x 20 MM) Stainless Steel
    SCREW, (M6 x 20 MM) Stainless Steel
  • 26
    25-8M4503674 GROMMET
    GROMMET
  • 27
    12-855576 WASHER
    NLA - No Longer Required
    WASHER
    NLA - No Longer Required
  • 28
    54-850181 TIE STRAP, (11.750 Inches)
    TIE STRAP, (11.750 Inches)
  • -
    880093A03 TILLER HANDLE KIT, Remote Control to Tiller Handle
    TILLER HANDLE KIT, Remote Control to Tiller Handle
