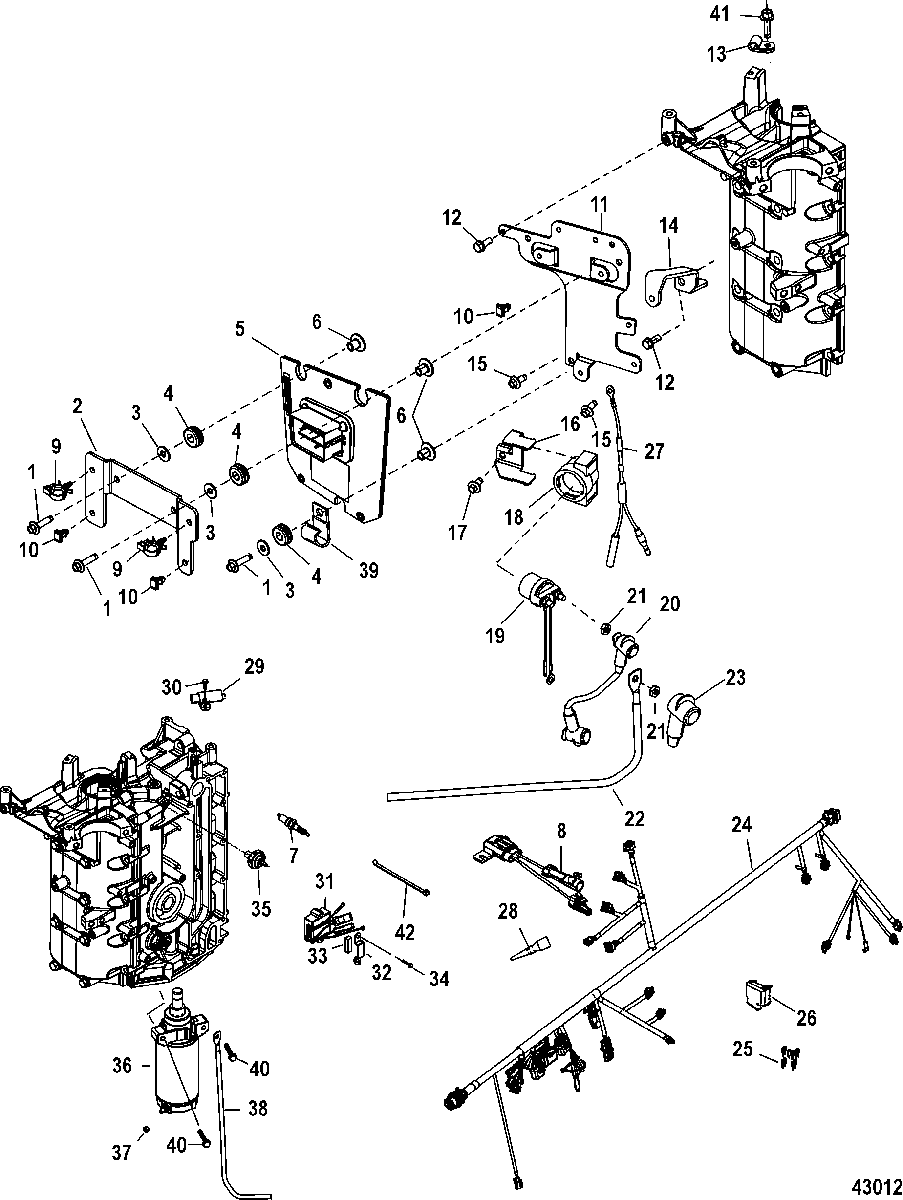

Electrical Components, 1C104424/0P560350 and Up для Mariner - 60 EFI (4 CYL.)(4-STROKE) 1C050252 & Up

  • №
    Артикул
    Название
  • 1
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 2
    893774002 BRACKET
    BRACKET
  • 3
    12-4002316 WASHER
    WASHER
  • 4
    25-834985 GROMMET
    GROMMET
  • 5
    8M0059784 ECM, Engine Control Module - 40 BF
    ECM, Engine Control Module - 40 BF
  • 5
    8M0059786 ECM, Engine Control Module - 40 Jet
    ECM, Engine Control Module - 40 Jet
  • 5
    8M0059785 ECM, Engine Control Module - 40 BF/ EU
    ECM, Engine Control Module - 40 BF/ EU
  • 5
    8M0059787 ECM, Engine Control Module - 50
    ECM, Engine Control Module - 50
  • 5
    8M0059788 ECM, Engine Control Module - 50 EU
    ECM, Engine Control Module - 50 EU
  • 5
    8M0059789 ECM, Engine Control Module - 60
    ECM, Engine Control Module - 60
  • 5
    8M0059790 ECM, Engine Control Module - 60 EU
    ECM, Engine Control Module - 60 EU
  • 6
    23-856954 BUSHING
    BUSHING
  • 7
    33-883323001 SPARK PLUG
    SPARK PLUG
  • 8
    84-897940T01 HARNESS ASSEMBLY, Fuse
    HARNESS ASSEMBLY, Fuse
  • 9
    54-858954 CLIP, (.625)
    CLIP, (.625)
  • 10
    54-879962 CLIP, Part of Electrical Harness
    CLIP, Part of Electrical Harness
  • 11
    8M0022449 PLATE
    PLATE
  • 12
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 13
    54-24836 CLIP
    CLIP
  • 14
    8M0007734 BRACE
    BRACE
  • 15
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 16
    893768 PLATE, Solenoid
    PLATE, Solenoid
  • 17
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 18
    8M0010250 BRACKET
    BRACKET
  • 19
    89-8M0098898 RELAY
    RELAY
  • 20
    84-93388A16 CABLE ASSEMBLY, (8.50 Inches)
    CABLE ASSEMBLY, (8.50 Inches)
  • 21
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 22
    84-88439A9 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 23
    85-880786 BOOT, Insulator - Red
    BOOT, Insulator - Red
  • 24
    84-8M0044999 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 25
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 25
    88-832969T25 FUSE, Mini - Clear - 25 Ampere
    FUSE, Mini - Clear - 25 Ampere
  • 25
    88-832969T05 FUSE, Mini - Tan - 5 Ampere
    FUSE, Mini - Tan - 5 Ampere
  • 25
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • 25
    88-8329692 FUSE, Mini - Gray - 2 Ampere
    FUSE, Mini - Gray - 2 Ampere
  • 26
    8M0045270 COVER
    COVER
  • 27
    84-883834T01 CABLE ASSEMBLY, Diode
    CABLE ASSEMBLY, Diode
  • 28
    13541 PLUG, Male
    PLUG, Male
  • 29
    8M0082988 SENSOR, Crank Position
    SENSOR, Crank Position
  • 30
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 31
    893640T01 REGULATOR, Voltage
    REGULATOR, Voltage
  • 32
    893771 BRACKET, Connector
    BRACKET, Connector
  • 33
    8308971 FOAM PAD
    FOAM PAD
  • 34
    10-8248329 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 35
    87-8M0098207 PRESSURE SWITCH
    PRESSURE SWITCH
  • 36
    50-893888T STARTER MOTOR ASSEMBLY, Complete
    STARTER MOTOR ASSEMBLY, Complete
  • 37
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 38
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 39
    54-65292 J CLIP
    J CLIP
  • 40
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    SCREW, (M8 x 45) Stainless Steel
  • 41
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 42
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • -
    37-8272822 DECAL, Warning, High Voltage
    DECAL, Warning, High Voltage
  • -
    61-893678T03 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
