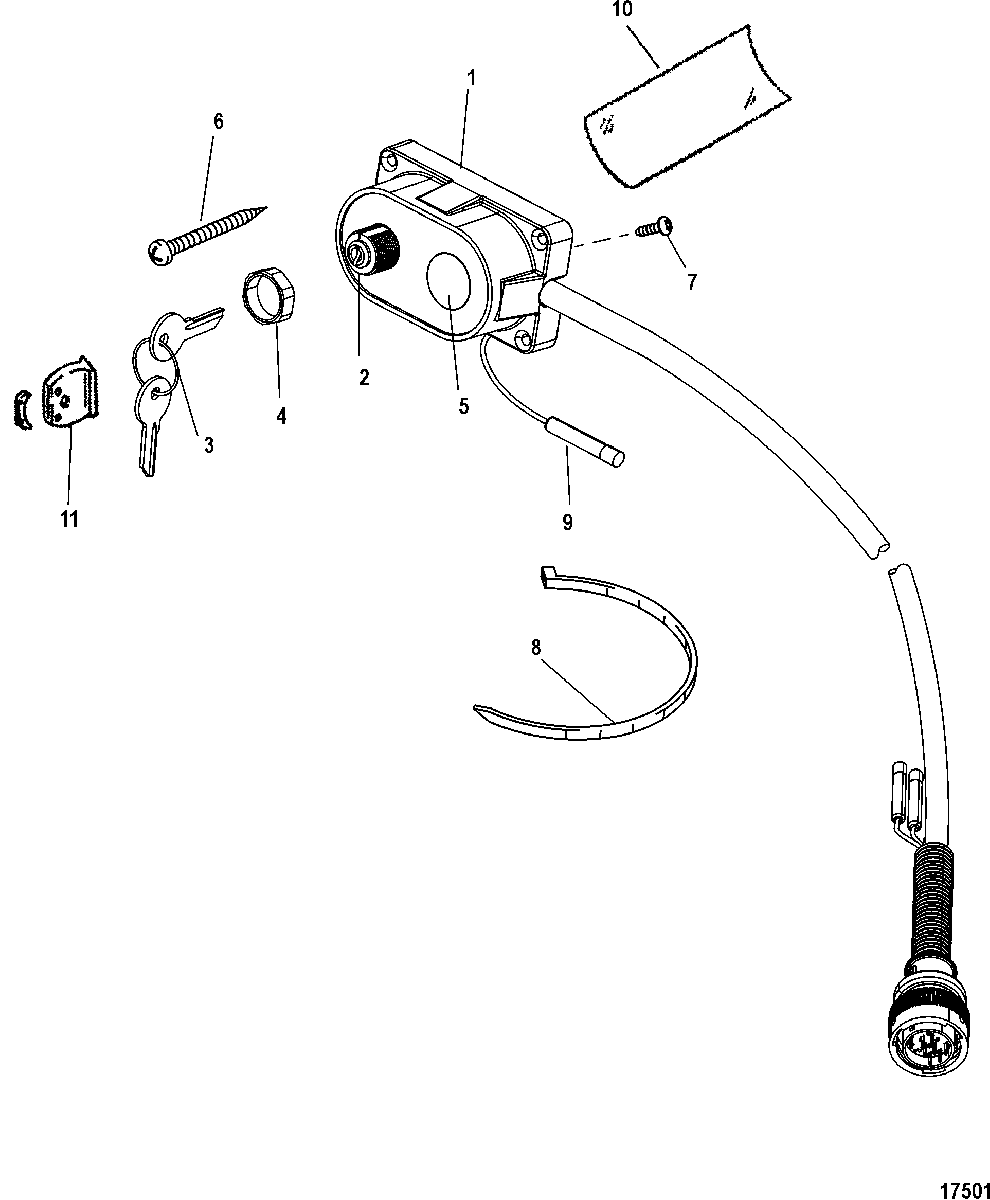

Key, Choke and Horn Kit, 15000A14 для Mariner - 60 EFI (4 CYL.)(4-STROKE) 1C050252 & Up

  • №
    Артикул
    Название
  • -
    15000A14 KEY SWITCH KIT, Remote Ignition
    KEY SWITCH KIT, Remote Ignition
  • 1
    NSS NOT SOLD SEPARATE, Housing
    NOT SOLD SEPARATE, Housing
  • 2
    NSS NOT SOLD SEPARATE, Key Switch Kit
    Uses 89491 Series Keys
    NOT SOLD SEPARATE, Key Switch Kit
    Uses 89491 Series Keys
  • NS
    86-830865 CONNECTOR
    CONNECTOR
  • 3
    89491_ KEY, Switch Ignition (1A thru 2F Series)
    See Key Chart 89491 Series
    KEY, Switch Ignition (1A thru 2F Series)
    See Key Chart 89491 Series
  • 4
    11-879755 NUT, Special - Black Nylon
    NUT, Special - Black Nylon
  • 5
    16564A1 HORN ASSEMBLY, Warning
    HORN ASSEMBLY, Warning
  • 6
    10-47994 SCREW, (#10 x 1.50), Top
    SCREW, (#10 x 1.50), Top
  • 7
    10-62568 SCREW, (#10-16 x .375), Housing
    SCREW, (#10-16 x .375), Housing
  • 8
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 9
    13541 PLUG, Male
    PLUG, Male
  • 10
    15097 SHEET, Neoprene
    SHEET, Neoprene
  • 11
    90468A1 COVER ASSEMBLY, Key
    COVER ASSEMBLY, Key
