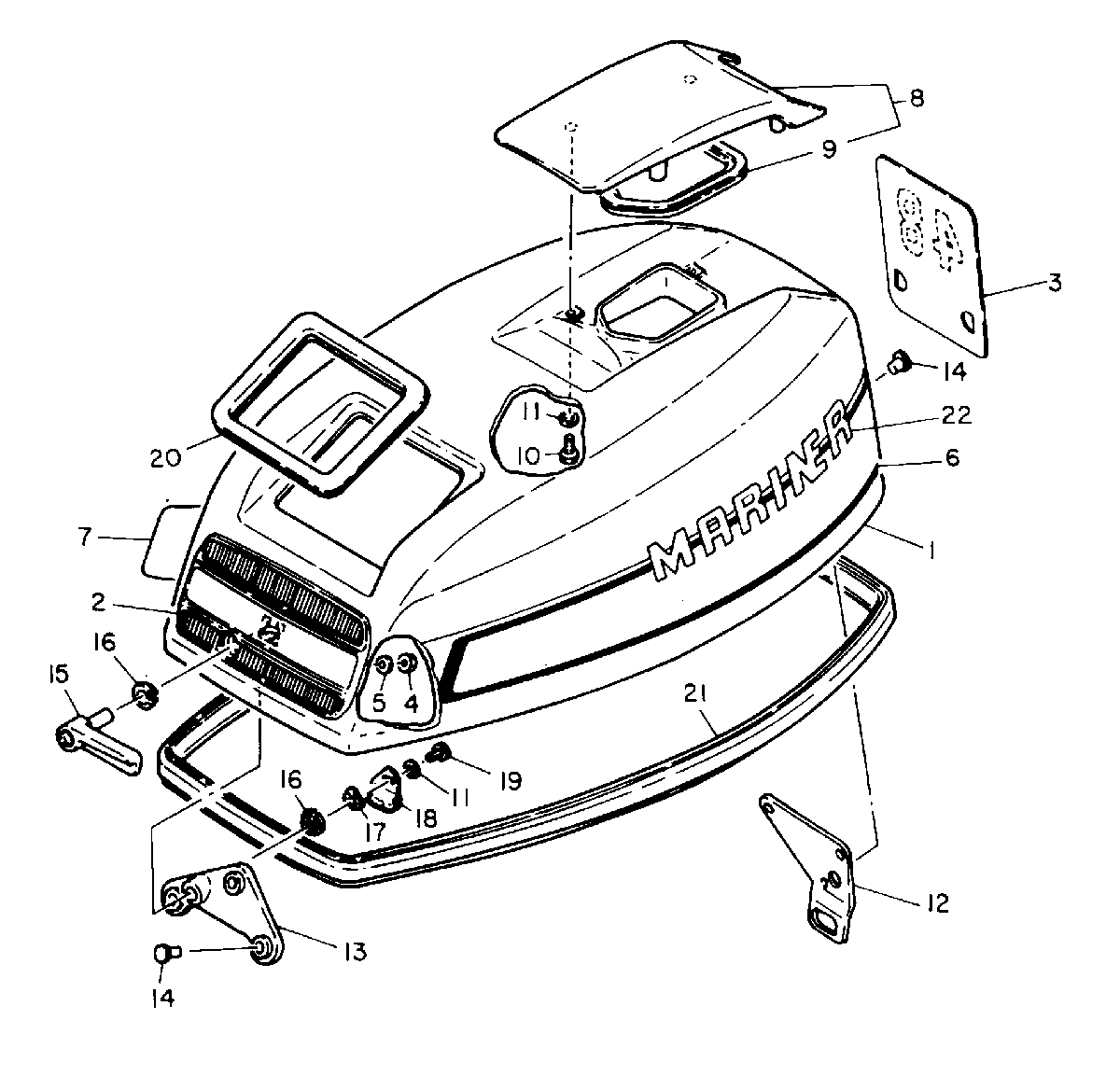

TOP COWLING для Mariner - 48 670-34580 AND BELOW

  • №
    Артикул
    Название
  • 1
    2168-6859M TOP COWLING ASS'Y
    TOP COWLING ASS'Y
  • 2
    81366M APPLIQUE, FRONT
    APPLIQUE, FRONT
  • 3
    82558M DECAL, REAR
    DECAL, REAR
  • 4
    11-82388M NUT, APPLIQUE ATTACHING
    NUT, APPLIQUE ATTACHING
  • 5
    12-82211M LOCKWASHER, APPLIQUE NUT
    LOCKWASHER, APPLIQUE NUT
  • 6
    37-82865M DECAL, TRIM - PORT
    DECAL, TRIM - PORT
  • 7
    37-82865M DECAL, TRIM - STARBOARD
    DECAL, TRIM - STARBOARD
  • 8
    83147M COVER, AIR DUCT
    COVER, AIR DUCT
  • 9
    83146M SEAL
    SEAL
  • 10
    10-826957M BOLT
    BOLT
  • 11
    12-82214M WASHER
    WASHER
  • 12
    83144M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 13
    83145M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 14
    17-82982M RIVET
    RIVET
  • 15
    81379M LEVER, COWL CLAMP
    LEVER, COWL CLAMP
  • 16
    23-81949M BUSHING, CLAMP LEVER
    BUSHING, CLAMP LEVER
  • 17
    13-81869M WASHER, CLAMP LEVER
    WASHER, CLAMP LEVER
  • 18
    81380M CLAMP, COWL
    CLAMP, COWL
  • 19
    10-91772M BOLT, COWL CLAMP ATTACHING
    BOLT, COWL CLAMP ATTACHING
  • 20
    81311M SEAL, TOP COWLING - UPPER
    SEAL, TOP COWLING - UPPER
  • 21
    81361M SEAL, TOP COWL
    SEAL, TOP COWL
  • 22
    37-81114M DECAL, "MARINER" - COWL
    DECAL, "MARINER" - COWL
