CLAMP AND SWIVEL BRACKET для Mariner - 48 670-34580 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    1651-7978M GEAR HOUSING ASS'Y (SHORT SHAFT)
    GEAR HOUSING ASS'Y (SHORT SHAFT)
  • 0-1
    1651-7979M GEAR HOUSING ASS'Y (LONG SHAFT)
    GEAR HOUSING ASS'Y (LONG SHAFT)
  • 1
    1651-7971M GEAR HOUSING
    GEAR HOUSING
  • 2
    81449M GUIDE, SEAL
    GUIDE, SEAL
  • 3
    22-81924M SCREW, DETENT
    SCREW, DETENT
  • 4
    27-81987 GASKET, DETENT SCREW
    GASKET, DETENT SCREW
  • 5
    81445M COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 6
    25-82281M O-RING, COVER TO GEAR HOUSING
    O-RING, COVER TO GEAR HOUSING
  • 7
    26-82257M OIL SEAL, GEAR HOUSING COVER
    OIL SEAL, GEAR HOUSING COVER
  • 8
    10-84368M BOLT, GEAR HOUSING COVER ATTACHING
    BOLT, GEAR HOUSING COVER ATTACHING
  • 9
    12-82214M WASHER, COVER BOLT
    WASHER, COVER BOLT
  • 10
    81408M ROD, SHIFT - LOWER
    ROD, SHIFT - LOWER
  • 11
    53-82334M CIRCLIP, LOWER SHIFT ROD
    CIRCLIP, LOWER SHIFT ROD
  • 12
    81409M CAM, SHIFT
    CAM, SHIFT
  • 13
    45-81678M DRIVESHAFT (SHORT SHAFT)
    DRIVESHAFT (SHORT SHAFT)
  • 13
    45-81679M DRIVESHAFT (LONG SHAFT)
    DRIVESHAFT (LONG SHAFT)
  • 14
    31-82319T BEARING, DRIVESHAFT
    BEARING, DRIVESHAFT
  • 15
    15-81467M SHIM, DRIVESHAFT BEARING (.05MM)
    SHIM, DRIVESHAFT BEARING (.05MM)
  • 15
    15-81468M SHIM, DRIVESHAFT BEARING (.08MM)
    SHIM, DRIVESHAFT BEARING (.08MM)
  • 15
    15-19148002 SHIM, DRIVESHAFT BEARING (.12MM)
    SHIM, DRIVESHAFT BEARING (.12MM)
  • 15
    15-19148004 SHIM, DRIVESHAFT BEARING (.30MM)
    SHIM, DRIVESHAFT BEARING (.30MM)
  • 15
    15-19153M SHIM, DRIVESHAFT BEARING (.50MM)
    SHIM, DRIVESHAFT BEARING (.50MM)
  • 16
    23-81453M SLEEVE, DRIVESHAFT
    SLEEVE, DRIVESHAFT
  • 17
    31-82316T BEARING, NEEDLE - DRIVESHAFT
    BEARING, NEEDLE - DRIVESHAFT
  • 18
    12-81455M THRUST WASHER, DRIVESHAFT
    THRUST WASHER, DRIVESHAFT
  • 19
    11-81772M NUT, DRIVESHAFT
    NUT, DRIVESHAFT
  • 20
    43-81454M GEAR SET
    GEAR SET
  • 21
    15-81456M SHIM, FORWARD GEAR ADJUST (.05MM)
    SHIM, FORWARD GEAR ADJUST (.05MM)
  • 21
    15-81457M SHIM, FORWARD GEAR ADJUST (.08MM)
    SHIM, FORWARD GEAR ADJUST (.08MM)
  • 21
    15-19148003 SHIM, FORWARD GEAR ADJUST (.12MM)
    SHIM, FORWARD GEAR ADJUST (.12MM)
  • 21
    15-19158M SHIM, FORWARD GEAR ADJUST (.30MM)
    SHIM, FORWARD GEAR ADJUST (.30MM)
  • 21
    15-81460M SHIM, FORWARD GEAR ADJUST (.50MM)
    SHIM, FORWARD GEAR ADJUST (.50MM)
  • 22
    31-82320T BEARING, FORWARD GEAR
    BEARING, FORWARD GEAR
  • 23
    52-81473T CLUTCH
    CLUTCH
  • 24
    81474M RING, CROSS PIN
    RING, CROSS PIN
  • 25
    92643M PLUNGER, SHIFT
    PLUNGER, SHIFT
  • 26
    81475M SLIDE, SHIFT
    SLIDE, SHIFT
  • 27
    24-82091M SPRING, SHIFT
    SPRING, SHIFT
  • 28
    44-92644M SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 29
    12-81837M WASHER, REVERSE GEAR
    WASHER, REVERSE GEAR
  • 30
    15-81462M SHIM, REVERSE GEAR ADJUST (.05MM)
    SHIM, REVERSE GEAR ADJUST (.05MM)
  • 30
    15-81463M SHIM, REVERSE GEAR ADJUST (.08MM)
    SHIM, REVERSE GEAR ADJUST (.08MM)
  • 30
    15-19163002 SHIM, REVERSE GEAR ADJUST (.12MM)
    SHIM, REVERSE GEAR ADJUST (.12MM)
  • 30
    15-19163001 SHIM, REVERSE GEAR ADJUST (.30MM)
    SHIM, REVERSE GEAR ADJUST (.30MM)
  • 30
    15-19165M SHIM, REVERSE GEAR ADJUST (.50MM)
    SHIM, REVERSE GEAR ADJUST (.50MM)
  • 31
    12-81461M THRUST WASHER, REVERSE GEAR
    THRUST WASHER, REVERSE GEAR
  • 32
    30-82296T BALL BEARING, REVERSE GEAR
    BALL BEARING, REVERSE GEAR
  • 33
    25-82289M O-RING, BEARING HOUSING
    O-RING, BEARING HOUSING
  • 34
    81446M HOUSING, BEARING
    HOUSING, BEARING
  • 35
    28-81916M KEY, BEARING HOUSING
    KEY, BEARING HOUSING
  • 36
    31-82317M BEARING, NEEDLE - PROPELLER SHAFT
    BEARING, NEEDLE - PROPELLER SHAFT
  • 37
    26-854017 OIL SEAL, PROPELLER SHAFT
    OIL SEAL, PROPELLER SHAFT
  • 38
    14-81877M WASHER, CLAW
    WASHER, CLAW
  • 39
    11-8M0059031 NUT, CLAW WASHER
    NUT, CLAW WASHER
  • 40
    46-81416M BODY, WATER PUMP
    BODY, WATER PUMP
  • 41
    81672M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 42
    83131M INNER PLATE, CARTRIDGE
    INNER PLATE, CARTRIDGE
  • 43
    47-97108M IMPELLER, WATER PUMP
    SERIAL 00002416-09999999
    IMPELLER, WATER PUMP
    SERIAL 00002416-09999999
  • 44
    28-81912M KEY
    SERIAL 00002416-09999999
    KEY
    SERIAL 00002416-09999999

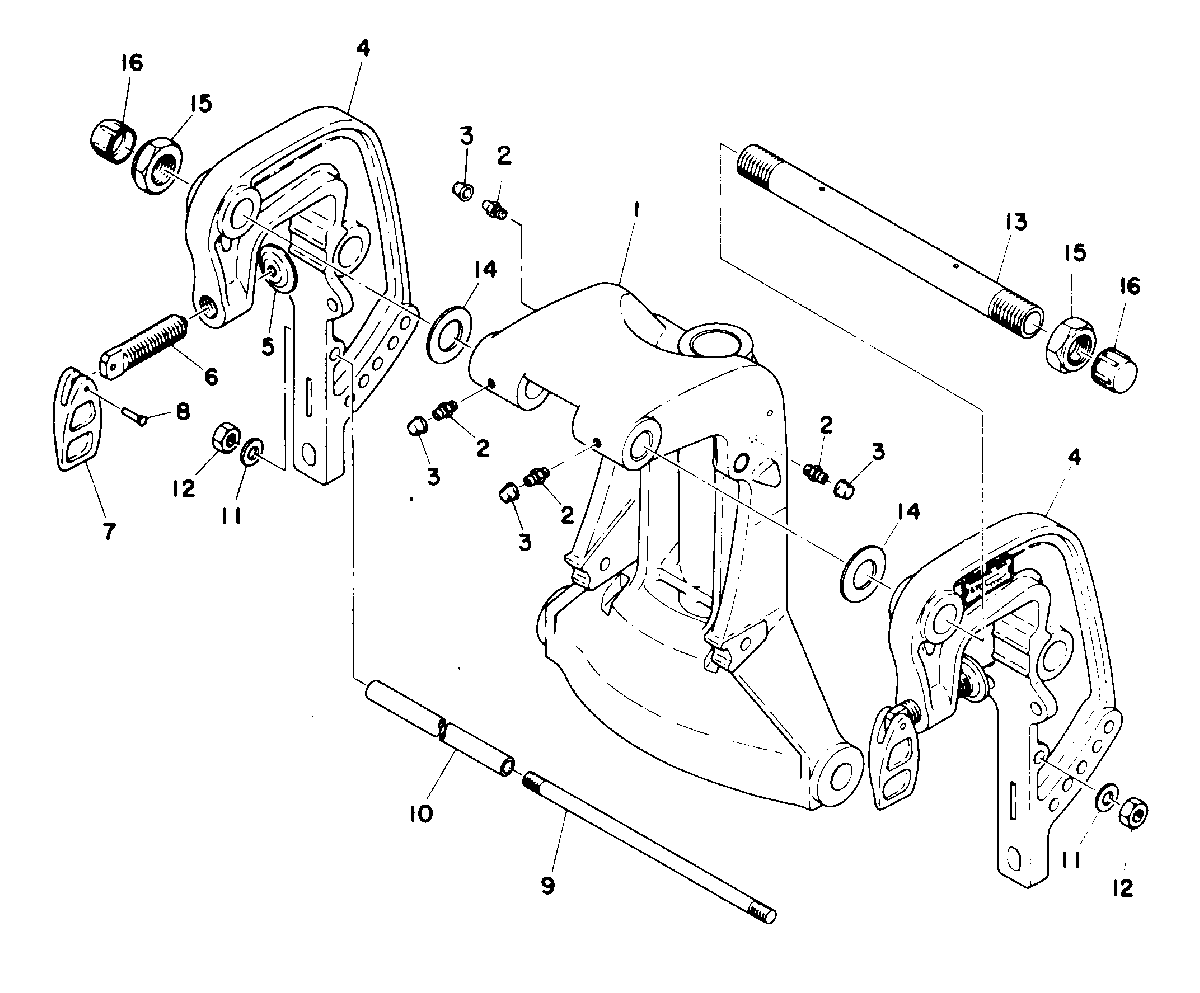

  • 1
    1485-6840M SWIVEL BRACKET (SHORT SHAFT)
    SWIVEL BRACKET (SHORT SHAFT)
  • 1
    1485-6841M SWIVEL BRACKET (LONG SHAFT)
    SWIVEL BRACKET (LONG SHAFT)
  • 2
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 3
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 4
    1484-6839M CLAMP BRACKET
    CLAMP BRACKET
  • 5
    12-80638M PAD, TRANSOM CLAMP SCREW
    PAD, TRANSOM CLAMP SCREW
  • 6
    10-92649M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 7
    11868M HANDLE, TRANSOM CLAMP SCREW
    HANDLE, TRANSOM CLAMP SCREW
  • 8
    17-81889M PIN, TRANSOM CLAMP SCREW
    PIN, TRANSOM CLAMP SCREW
  • 9
    16-81383M STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    23-81981M SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 11
    12-82220M WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
  • 12
    11-82395M NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 13
    10-41312M STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 14
    12-81836M WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
  • 15
    11-879172252 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 16
    811914M CAP, CLAMP BRACKET STUD
    CAP, CLAMP BRACKET STUD
