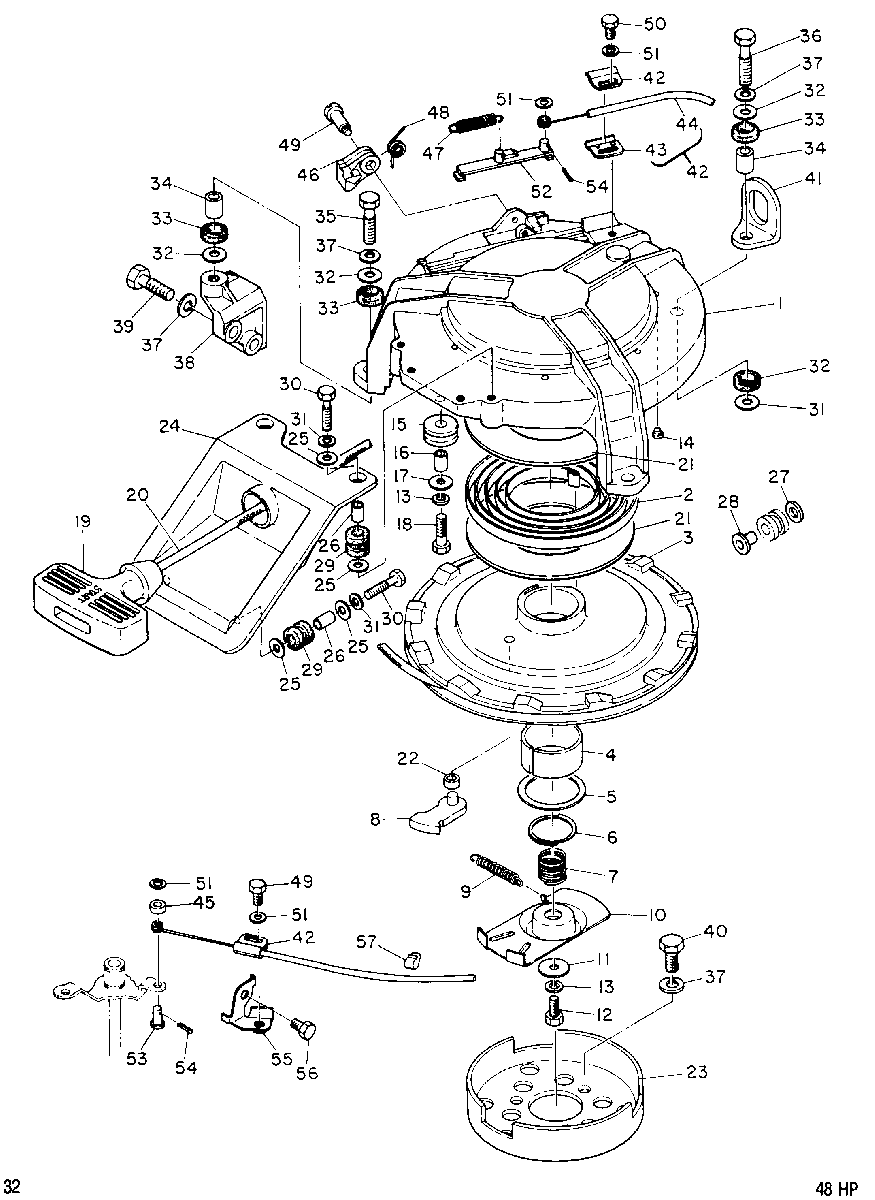

RECOIL STARTER для Mariner - 48 670-34580 AND BELOW
-
№АртикулНазвание
-
0-184448M STARTER ASS'YSTARTER ASS'Y
-
184449M HOUSING, STARTERHOUSING, STARTER
-
224-81295M SPRING, STARTERSPRING, STARTER
-
350-81296M STARTER PULLEYSTARTER PULLEY
-
423-81309M COLLAR, ENGAGEMENT CAMCOLLAR, ENGAGEMENT CAM
-
512-81301M WASHER, ENGAGEMENT CAMWASHER, ENGAGEMENT CAM
-
653-81305M CIRCLIP, ENGAGEMENT CAMCIRCLIP, ENGAGEMENT CAM
-
724-41294M SPRING, ENGAGEMENT CAMSPRING, ENGAGEMENT CAM
-
819136M PAWL, STARTERPAWL, STARTER
-
924-81297M SPRING, ENGAGEMENT CAMSPRING, ENGAGEMENT CAM
-
1041295M CAM, PAWL ENGAGEMENTCAM, PAWL ENGAGEMENT
-
1112-81299M WASHER, ENGAGEMENT CAM BOLTWASHER, ENGAGEMENT CAM BOLT
-
1210-826957M BOLTBOLT
-
1313-82212M LOCKWASHERLOCKWASHER
-
1419-80604M PLUG, STARTER HOUSINGPLUG, STARTER HOUSING
-
1581307M ROLLER, STARTER ROPEROLLER, STARTER ROPE
-
1623-11705M BUSHING, ROLLERBUSHING, ROLLER
-
1713-11706M WASHERWASHER
-
1810-83141M BOLTBOLT
-
19814491A1 HANDLE, STARTERHANDLE, STARTER
-
2050-12066Q10 STARTER ROPESTARTER ROPE
-
2112-83151M WASHERWASHER
-
2223-83150M BUSHINGBUSHING
-
2381300M DRIVE CUP, PAWLDRIVE CUP, PAWL
-
2481310M GUIDE, STARTER ROPEGUIDE, STARTER ROPE
-
2512-82213M WASHER
SERIAL 00002540-09999999WASHER
SERIAL 00002540-09999999 -
2623-81967M COLLAR, GUIDE MOUNT
SERIAL 00002540-09999999COLLAR, GUIDE MOUNT
SERIAL 00002540-09999999 -
2712-82213M WASHER
SERIAL 00002541-09999999WASHER
SERIAL 00002541-09999999 -
2823-804344003 BUSHING
SERIAL 00002541-09999999BUSHING
SERIAL 00002541-09999999 -
2981523M MOUNT, GUIDEMOUNT, GUIDE
-
3010-83285M BOLT, ROPE GUIDE ATTACHINGBOLT, ROPE GUIDE ATTACHING
-
3113-82212M WASHERWASHER
-
3213-81799M WASHER, LIFT BRACKET BOLTWASHER, LIFT BRACKET BOLT
-
3325-81937M GROMMET, LIFT BRACKETGROMMET, LIFT BRACKET
-
3423-81978M COLLAR, LIFT BRACKETCOLLAR, LIFT BRACKET
-
3510-82442M BOLT, STARTER HOUSING ATTACHINGBOLT, STARTER HOUSING ATTACHING
-
3610-84236M BOLT, LIFT BRACKET ATTACHINGBOLT, LIFT BRACKET ATTACHING
-
3713-82215M LOCKWASHERLOCKWASHER
-
3881313M BRACKET, STARTER HOUSINGBRACKET, STARTER HOUSING
-
3910-82441M BOLT, BRACKET ATTACHINGBOLT, BRACKET ATTACHING
-
4010-82439M BOLT, DRIVE CUP ATTACHINGBOLT, DRIVE CUP ATTACHING
-
4141827M HANGER, ENGINEHANGER, ENGINE
