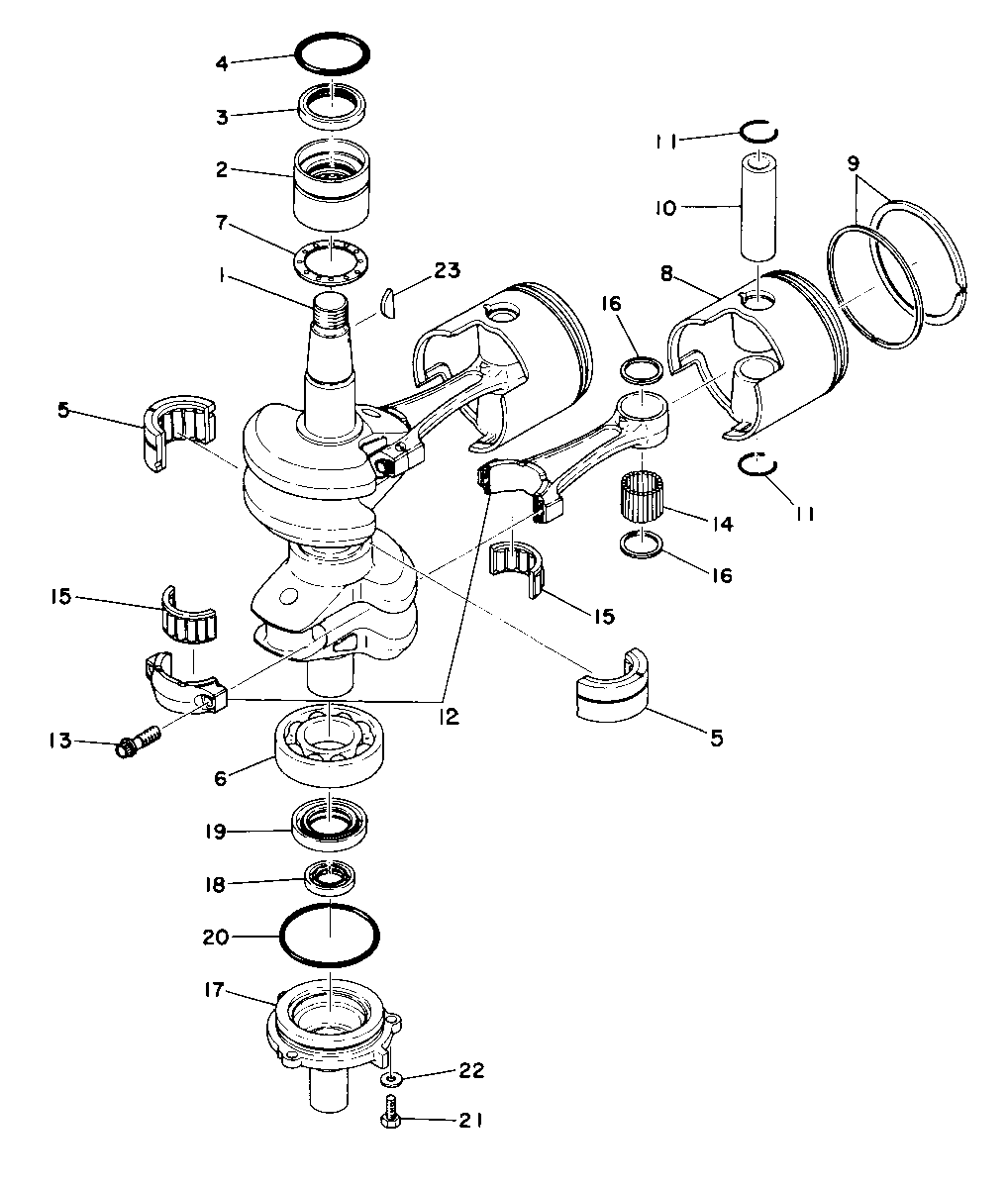

CRANKSHAFT AND PISTON для Mariner - 48 670-34580 AND BELOW

  • №
    Артикул
    Название
  • 1
    463-6825M CRANKSHAFT ASS'Y
    CRANKSHAFT ASS'Y
  • 2
    31-82312T BEARING, NEEDLE
    BEARING, NEEDLE
  • 3
    26-82249M OIL SEAL, CRANKSHAFT - UPPER
    OIL SEAL, CRANKSHAFT - UPPER
  • 4
    25-82276M O-RING, CRANKSHAFT - UPPER
    O-RING, CRANKSHAFT - UPPER
  • 5
    31-97837T BEARING, CENTER MAIN
    BEARING, CENTER MAIN
  • 6
    30-814560T BEARING, CRANKSHAFT - LOWER
    BEARING, CRANKSHAFT - LOWER
  • 7
    15-81259M WASHER, CRANKSHAFT PIN
    WASHER, CRANKSHAFT PIN
  • 8
    761-6826M PISTON(STD) (81.96MM)
    SERIAL 00002440-09999999
    PISTON(STD) (81.96MM)
    SERIAL 00002440-09999999
  • 8
    761-6961M PISTON (STD) (81.97MM)
    SERIAL 00002440-09999999
    PISTON (STD) (81.97MM)
    SERIAL 00002440-09999999
  • 8
    761-8462M PISTON (STD) (81.95MM)
    SERIAL 00002441-09999999
    PISTON (STD) (81.95MM)
    SERIAL 00002441-09999999
  • 8
    761-8462M PISTON (STD) (81.96MM)
    SERIAL 00002441-09999999
    PISTON (STD) (81.96MM)
    SERIAL 00002441-09999999
  • 8
    761-8462M PISTON (STD) (81.97MM)
    SERIAL 00002441-09999999
    PISTON (STD) (81.97MM)
    SERIAL 00002441-09999999
  • 8
    761-6828M PISTON (1ST O.S. - 82.25MM)
    SERIAL 00002440-09999999
    PISTON (1ST O.S. - 82.25MM)
    SERIAL 00002440-09999999
  • 8
    761-6829M PISTON (2ND O.S. - 82.50MM)
    SERIAL 00002440-09999999
    PISTON (2ND O.S. - 82.50MM)
    SERIAL 00002440-09999999
  • 8
    761-8463M PISTON (1ST O.S. - 82.25MM)
    SERIAL 00002441-09999999
    PISTON (1ST O.S. - 82.25MM)
    SERIAL 00002441-09999999
  • 8
    761-8464T PISTON (2ND O.S. - 82.50MM)
    SERIAL 00002441-09999999
    PISTON (2ND O.S. - 82.50MM)
    SERIAL 00002441-09999999
  • 9
    39-81260M PISTON RING SET (STD)
    SERIAL 00002440-09999999
    PISTON RING SET (STD)
    SERIAL 00002440-09999999
  • 9
    39-83195M PISTON RING SET (STD)
    SERIAL 00002441-09999999
    PISTON RING SET (STD)
    SERIAL 00002441-09999999
  • 9
    39-81261M PISTON RING SET (1ST O.S. - 82.25MM)
    SERIAL 00002440-09999999
    PISTON RING SET (1ST O.S. - 82.25MM)
    SERIAL 00002440-09999999
  • 9
    39-81262M PISTON RING SET (2ND O.S. - 82.50MM)
    SERIAL 00002440-09999999
    PISTON RING SET (2ND O.S. - 82.50MM)
    SERIAL 00002440-09999999
  • 9
    39-83196M PISTON RING SET (1ST O.S. - 82.25MM)
    SERIAL 00002441-09999999
    PISTON RING SET (1ST O.S. - 82.25MM)
    SERIAL 00002441-09999999
  • 9
    39-83197T PISTON RING SET (2ND O.S. - 82.50MM)
    SERIAL 00002441-09999999
    PISTON RING SET (2ND O.S. - 82.50MM)
    SERIAL 00002441-09999999
  • 10
    41-81263T PIN, PISTON
    PIN, PISTON
  • 11
    53-81264M CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 12
    629-8401M CONNECTING ROD ASS'Y
    CONNECTING ROD ASS'Y
  • 13
    10-81715M BOLT, ROD CAP
    BOLT, ROD CAP
  • 14
    29-82353M BEARING, NEEDLE - CONNECTING ROD
    BEARING, NEEDLE - CONNECTING ROD
  • 15
    31-97710M BEARING, CONNECTING ROD
    BEARING, CONNECTING ROD
  • 16
    12-81831M RETAINER, DOWEL PIN
    RETAINER, DOWEL PIN
  • 17
    41828M HOUSING, OIL SEAL
    SERIAL 00002540-09999999
    HOUSING, OIL SEAL
    SERIAL 00002540-09999999
  • 17
    41828M HOUSING, OIL SEAL
    SERIAL 00002541-09999999
    HOUSING, OIL SEAL
    SERIAL 00002541-09999999
  • 18
    26-82255M OIL SEAL, CRANKSHAFT - LOWER...
    OIL SEAL, CRANKSHAFT - LOWER...
  • 19
    26-82248M OIL SEAL, CRANKSHAFT - LOWER...
    OIL SEAL, CRANKSHAFT - LOWER...
  • 20
    25-82286M O-RING, OIL SEAL HOUSING...
    O-RING, OIL SEAL HOUSING...
  • 21
    10-84368M BOLT, OIL SEAL ATTACHING...
    BOLT, OIL SEAL ATTACHING...
  • 22
    12-82214M WASHER, HOUSING BOLT...
    WASHER, HOUSING BOLT...
  • 23
    28-81915M KEY, CRANKSHAFT TO FLYWHEEL...
    KEY, CRANKSHAFT TO FLYWHEEL...
