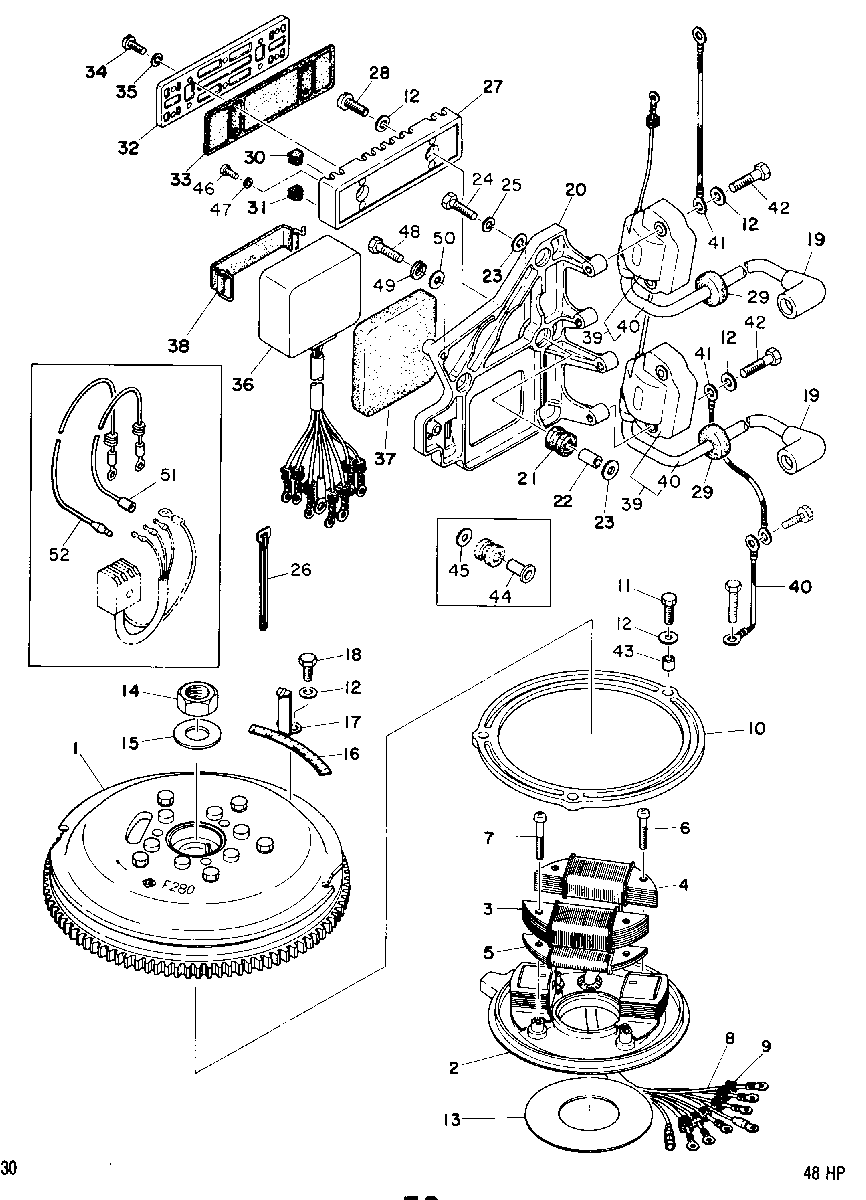

IGNITION SYSTEM для Mariner - 48 670-34580 AND BELOW

  • №
    Артикул
    Название
  • 25
    13-82212M LOCKWASHER, CLAMP BOLT
    LOCKWASHER, CLAMP BOLT
  • 26
    81541M BAND
    BAND
  • 27
    81518M TERMINAL STRIP
    TERMINAL STRIP
  • 28
    10-82980M SCREW, TERMINAL STRIP ATTACHING
    SCREW, TERMINAL STRIP ATTACHING
  • 29
    25-80714M GROMMET, PLUG WIRE
    SERIAL 00002540-09999999
    GROMMET, PLUG WIRE
    SERIAL 00002540-09999999
  • 29
    25-82069M GROMMET, PLUG WIRE
    SERIAL 00002541-09999999
    GROMMET, PLUG WIRE
    SERIAL 00002541-09999999
  • 30
    25-82058M GROMMET, TERMINAL STRIP COVER - UPPER
    SERIAL 00002540-09999999
    GROMMET, TERMINAL STRIP COVER - UPPER
    SERIAL 00002540-09999999
  • 30
    25-82058M GROMMET, TERMINAL STRIP COVER - UPPER
    SERIAL 00002541-09999999
    GROMMET, TERMINAL STRIP COVER - UPPER
    SERIAL 00002541-09999999
  • 31
    25-81517M GROMMET, TERMINAL STRIP COVER - LOWER...
    GROMMET, TERMINAL STRIP COVER - LOWER...
  • 32
    81515M COVER, TERMINAL STRIP
    COVER, TERMINAL STRIP
  • 33
    27-81516M GASKET, TERMINAL STRIP
    GASKET, TERMINAL STRIP
  • 34
    10-80738M SCREW, TERMINAL STRIP COVER ATTACHING
    SCREW, TERMINAL STRIP COVER ATTACHING
  • 35
    13-82206M LOCKWASHER, TERMINAL STRIP COVER SCREW
    LOCKWASHER, TERMINAL STRIP COVER SCREW
  • 36
    83030T SWITCH BOX ASS'Y
    SWITCH BOX ASS'Y
  • 37
    81544M DAMPER, SWITCH BOX.
    DAMPER, SWITCH BOX.
  • 38
    81520M RETAINER, SWITCH BOX.
    RETAINER, SWITCH BOX.
  • 39
    97077M IGNITION COIL ASS'Y
    IGNITION COIL ASS'Y
  • 40
    84-82831M CORD, HIGHTENSION
    CORD, HIGHTENSION
  • 41
    84-81250M GROUND WIRE LEAD
    GROUND WIRE LEAD
  • 42
    10-83285M BOLT, COIL ATTACHING
    BOLT, COIL ATTACHING
  • 43
    23-81971M COLLAR
    COLLAR
  • 44
    23-804344003 BUSHING
    SERIAL 00002541-09999999
    BUSHING
    SERIAL 00002541-09999999
  • 45
    12-83769M WASHER
    SERIAL 00002541-09999999
    WASHER
    SERIAL 00002541-09999999
  • 46
    10-82798M SCREW
    SCREW
  • 47
    12-82847M WASHER
    WASHER
  • 48
    10-82981M SCREW
    SCREW
  • 49
    13-82212M WASHER
    WASHER
  • 50
    12-82214M WASHER
    WASHER
  • 51
    84-82997M WIRE, LEAD 1
    SERIAL 00002541-09999999
    WIRE, LEAD 1
    SERIAL 00002541-09999999
  • 52
    84-82998M WIRE, LEAD 2.
    SERIAL 00002541-09999999
    WIRE, LEAD 2.
    SERIAL 00002541-09999999
