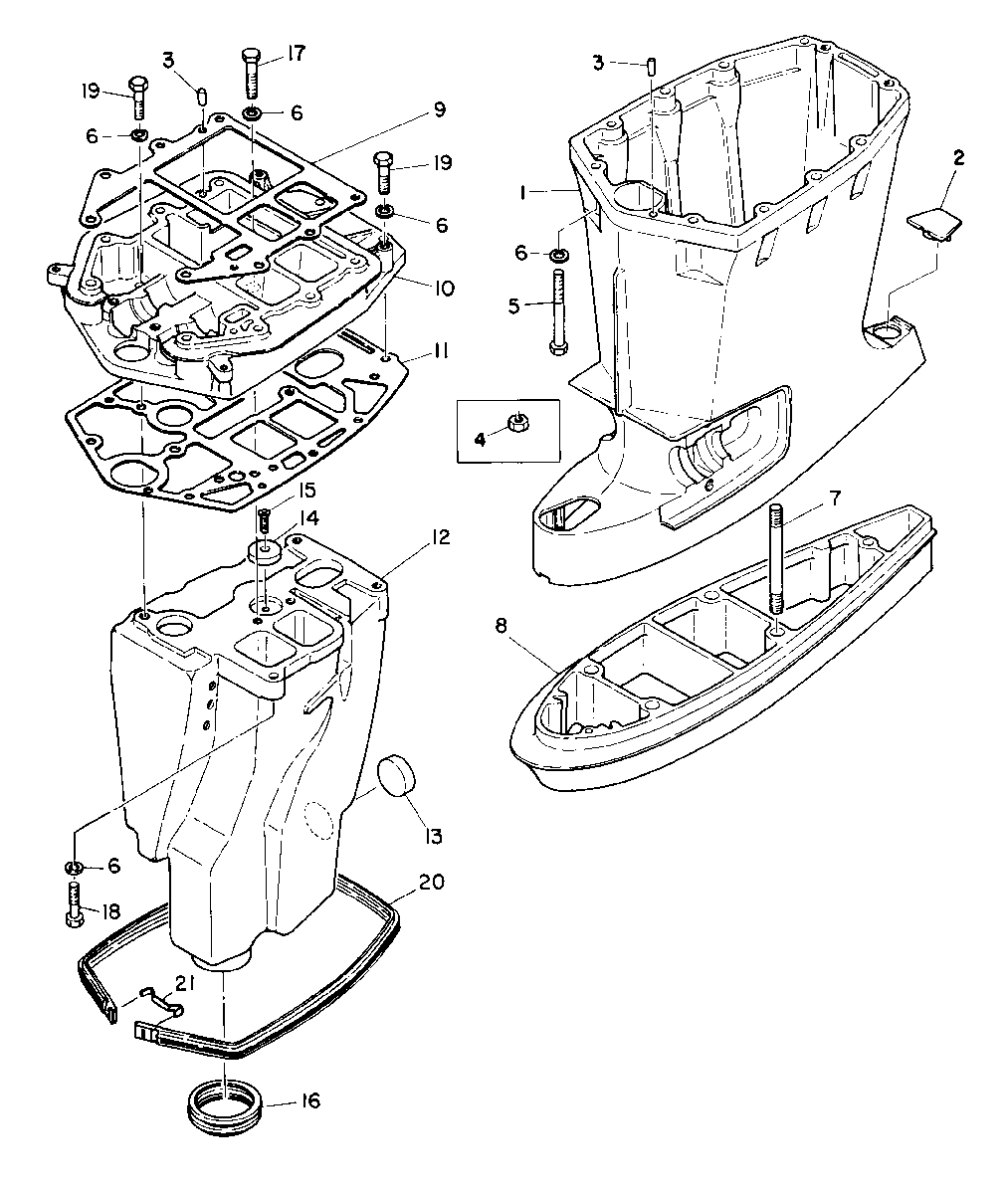

DRIVESHAFT HOUSING для Mariner - 48 670-34580 AND BELOW

  • №
    Артикул
    Название
  • 1
    1587-8615M DRIVESHAFT HOUSING (SHORT SHAFT)
    DRIVESHAFT HOUSING (SHORT SHAFT)
  • 1
    1587-8616M DRIVESHAFT HOUSING (LONG SHAFT)
    DRIVESHAFT HOUSING (LONG SHAFT)
  • 2
    81442M CAP, DRIVESHAFT HOUSING (SHORT SHAFT)
    CAP, DRIVESHAFT HOUSING (SHORT SHAFT)
  • 2
    81442M CAP, DRIVESHAFT HOUSING (LONG SHAFT)
    CAP, DRIVESHAFT HOUSING (LONG SHAFT)
  • 3
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 4
    11-82382M NUT, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00001790-09999999
    NUT, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00001790-09999999
  • 5
    10-82472M BOLT
    SERIAL 00001791-09999999
    BOLT
    SERIAL 00001791-09999999
  • 6
    13-82215M LOCKWASHER
    LOCKWASHER
  • 7
    16-81744M STUD, EXTENSION
    STUD, EXTENSION
  • 8
    82559M EXTENSION
    EXTENSION
  • 9
    27-16717 GASKET, EXHAUST GUIDE - UPPER
    GASKET, EXHAUST GUIDE - UPPER
  • 10
    41849M GUIDE, EXHAUST
    GUIDE, EXHAUST
  • 11
    27-98952M GASKET, EXHAUST GUIDE
    GASKET, EXHAUST GUIDE
  • 12
    1587-6833M DRIVESHAFT HOUSING, INNER (SHORT SHAFT)
    DRIVESHAFT HOUSING, INNER (SHORT SHAFT)
  • 12
    1587-6834M DRIVESHAFT HOUSING, INNER (LONG SHAFT)
    DRIVESHAFT HOUSING, INNER (LONG SHAFT)
  • 13
    19-81922M WELCH PLUG, DRIVESHAFT HOUSING
    WELCH PLUG, DRIVESHAFT HOUSING
  • 14
    43107M ANODE
    ANODE
  • 15
    10-84367M SCREW, ANODE ATTACHING
    SCREW, ANODE ATTACHING
  • 16
    27-81440M SEAL, INNER TO OUTER HOUSING
    SEAL, INNER TO OUTER HOUSING
  • 17
    10-97749M BOLT, GUIDE ATTACHING
    BOLT, GUIDE ATTACHING
  • 18
    10-82442M BOLT, INNER HOUSING ATTACHING
    BOLT, INNER HOUSING ATTACHING
  • 19
    10-95416M BOLT, GUIDE ATTACHING
    BOLT, GUIDE ATTACHING
  • 20
    27-83033M SEAL, RUBBER
    SERIAL 00002541-09999999
    SEAL, RUBBER
    SERIAL 00002541-09999999
  • 21
    83034M HOOK, RUBBER SEAL
    SERIAL 00002541-09999999
    HOOK, RUBBER SEAL
    SERIAL 00002541-09999999
