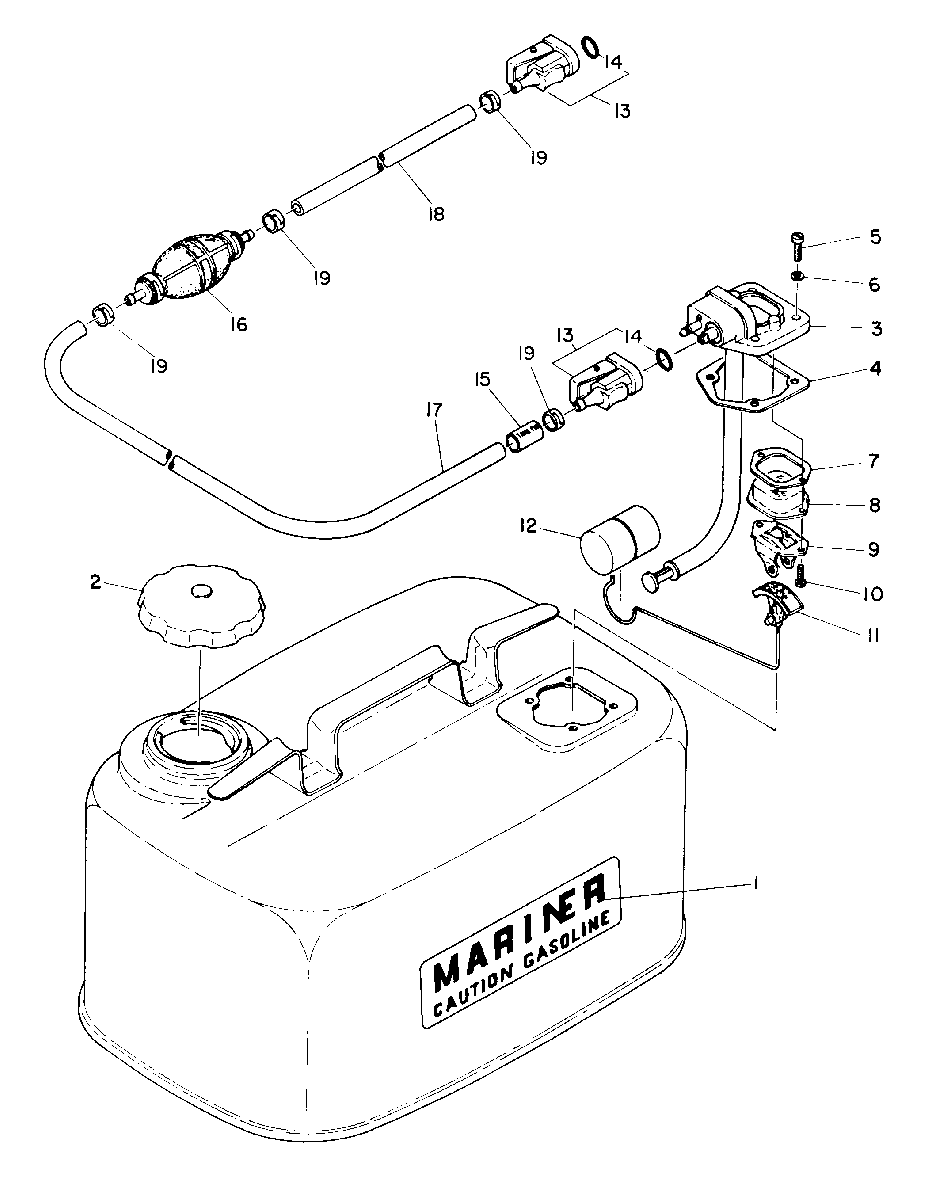

FUEL TANK (INTERNATIONAL) для Mariner - 48 670-34580 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    1252-6836M FUEL TANK ASS'Y
    FUEL TANK ASS'Y
  • 1
    37-82984M DECAL
    DECAL
  • 2
    81694M FUEL TANK CAP
    FUEL TANK CAP
  • 3
    81321M HOUSING, FUEL CONNECTOR
    HOUSING, FUEL CONNECTOR
  • 4
    27-81320M GASKET, HOUSING TO TANK
    GASKET, HOUSING TO TANK
  • 5
    10-83356M SCREW, HOUSING ATTACHING
    SCREW, HOUSING ATTACHING
  • 6
    12-95501M WASHER, HOUSING SCREW
    WASHER, HOUSING SCREW
  • 7
    27-17540M GASKET, HOUSING TO LENS INDICATOR
    GASKET, HOUSING TO LENS INDICATOR
  • 8
    80269M LENS, INDICATOR
    LENS, INDICATOR
  • 9
    80268M SUPPORT, INDICATOR
    SUPPORT, INDICATOR
  • 10
    10-83523M SCREW, SUPPORT ATTACHING
    SCREW, SUPPORT ATTACHING
  • 11
    81318M INDICATOR
    INDICATOR
  • 12
    81319M FLOAT, INDICATOR
    FLOAT, INDICATOR
  • 0-2
    32-877681Q8 FUEL HOSE ASS'Y
    FUEL HOSE ASS'Y
  • 13
    22-14213Q CONNECTOR HOUSING
    CONNECTOR HOUSING
  • 14
    25-82789M O-RING
    O-RING
  • 15
    23-81327M SLEEVE, HOSE
    SLEEVE, HOSE
  • 16
    89396Q01 BULB, PRIMER
    BULB, PRIMER
  • 17
    32-94727M HOSE, CONNECTOR HOUSING TO BULB
    HOSE, CONNECTOR HOUSING TO BULB
  • 18
    32-94727M HOSE, BULB TO CONNECTOR
    HOSE, BULB TO CONNECTOR
  • 19
    54-16725M CLAMP, HOSE
    CLAMP, HOSE
