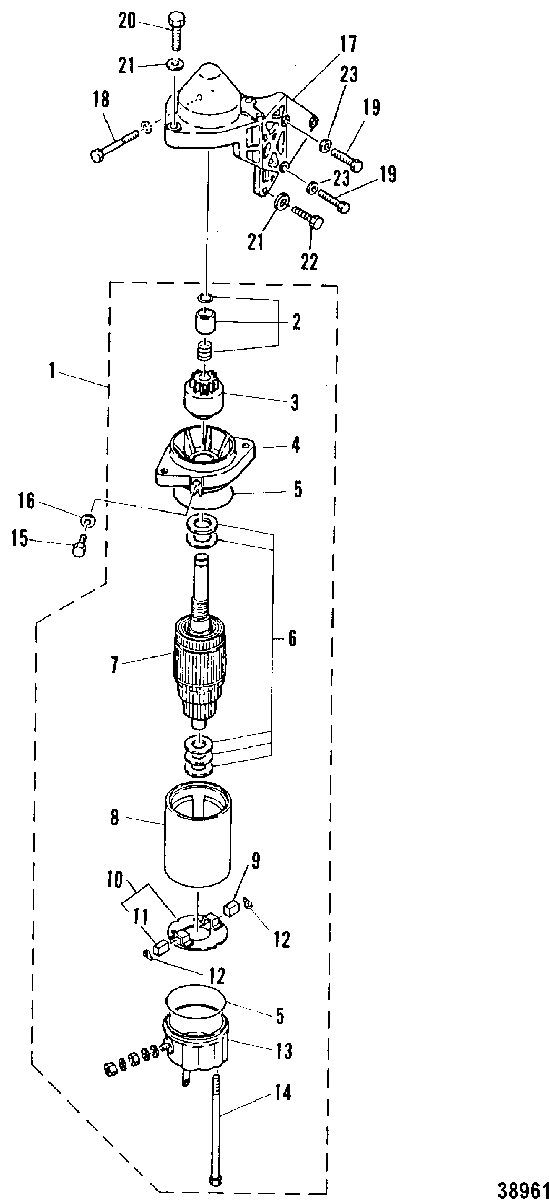

STARTER MOTOR(E-101516/EL-404001 and Up) для Mariner - 30A 689-100251 THRU 105324

  • №
    Артикул
    Название
  • 1
    50-97693M STARTER MOTOR ASSEMBLY
    SN# E-104276/EL-409416 & Up
    STARTER MOTOR ASSEMBLY
    SN# E-104276/EL-409416 & Up
  • 1
    50-97693M STARTER MOTOR ASSEMBLY
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
    STARTER MOTOR ASSEMBLY
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
  • 2
    96360M STOPPER KIT, Pinion
    STOPPER KIT, Pinion
  • 3
    97694T PINION
    PINION
  • 4
    96362M COVER, FRONT
    COVER, FRONT
  • 5
    25-96363M O-RING
    O-RING
  • 6
    12-96364M WASHER KIT
    WASHER KIT
  • 7
    96365M ARMATURE
    ARMATURE
  • 8
    96365M ARMATURE
    ARMATURE
  • 9
    96368M BRUSH, POSITIVE
    BRUSH, POSITIVE
  • 10
    96367M HOLDER, Brush
    HOLDER, Brush
  • 11
    96369M BRUSH, NEGATIVE
    BRUSH, NEGATIVE
  • 12
    24-84927M SPRING, BRUSH
    SPRING, BRUSH
  • 13
    96370M COVER, REAR
    COVER, REAR
  • 14
    10-84929M BOLT
    BOLT
  • 15
    10-82436M BOLT
    SN# E-104276/EL-409416 & Up
    BOLT
    SN# E-104276/EL-409416 & Up
  • 15
    10-96371M BOLT
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
    BOLT
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
  • 16
    12-82217M WASHER
    WASHER
  • 17
    84930M BRACKET, MOTOR MOUNTING
    SN# E-104276/EL-409416 & Up
    BRACKET, MOTOR MOUNTING
    SN# E-104276/EL-409416 & Up
  • 17
    92609M BRACKET, MOTOR MOUNTING
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
    BRACKET, MOTOR MOUNTING
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
  • 18
    10-84931M BOLT
    SN# E-104276/EL-409416 & Up
    BOLT
    SN# E-104276/EL-409416 & Up
  • 18
    10-84931M BOLT
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
    BOLT
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
  • 19
    10-83285M BOLT
    SN# E-104276/EL-409416 & Up
    BOLT
    SN# E-104276/EL-409416 & Up
  • 19
    92657M CAP
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
    CAP
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
  • 20
    10-82441M BOLT
    SN# E-104276/EL-409416 & Up
    BOLT
    SN# E-104276/EL-409416 & Up
  • 20
    10-95416M BOLT
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
    BOLT
    SN# E-101516/EL-404001 THRU E-104275/EL-409415
  • 21
    12-82217M WASHER
    WASHER
  • 22
    10-82439M BOLT
    BOLT
  • 23
    12-82214M WASHER
    SN# E-104276/EL-409416 & Up
    WASHER
    SN# E-104276/EL-409416 & Up
