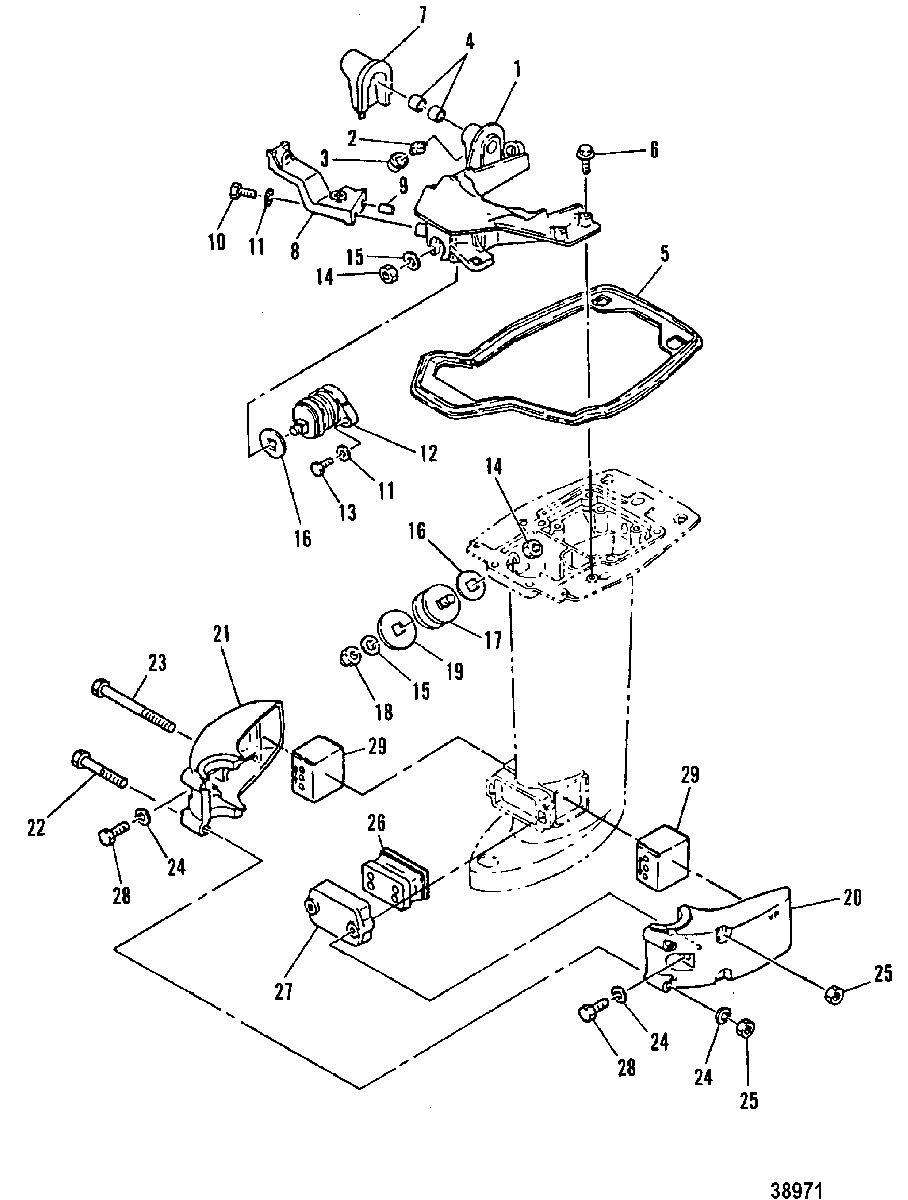

MOUNTING SYSTEM для Mariner - 30A 689-100251 THRU 105324

  • №
    Артикул
    Название
  • 1
    80654M BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 2
    22-82369M FITTING
    FITTING
  • 3
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 4
    23-81930M BUSHING
    BUSHING
  • 5
    26-84838M SEAL, BOTTOM COWL
    SEAL, BOTTOM COWL
  • 6
    10-84839M BOLT
    BOLT
  • 7
    26-84840M SEAL
    SEAL
  • 8
    80657M BRACKET
    BRACKET
  • 9
    17-82364M PIN, Dowel
    PIN, Dowel
  • 10
    10-82423M BOLT
    BOLT
  • 11
    12-82214M WASHER
    WASHER
  • 12
    84841M MOUNT, RUBBER - UPPER FRONT
    MOUNT, RUBBER - UPPER FRONT
  • 13
    10-84058M BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 14
    11-82395M NUT
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    NUT
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 14
    11-82395M NUT
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
    NUT
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
  • 15
    12-82219M WASHER
    WASHER
  • 16
    27-80662M GASKET, MOUNT
    GASKET, MOUNT
  • 17
    8M0121332 MOUNT, RUBBER - UPPER SIDE
    MOUNT, RUBBER - UPPER SIDE
  • 18
    11-82396M NUT
    NUT
  • 19
    27-81612M GASKET, MOUNT
    GASKET, MOUNT
  • 20
    84842M HOUSING, LOWER MOUNT - PORT
    HOUSING, LOWER MOUNT - PORT
  • 21
    84843M HOUSING, LOWER MOUNT - STARBOARD
    HOUSING, LOWER MOUNT - STARBOARD
  • 22
    10-84844M BOLT
    BOLT
  • 23
    10-41893M BOLT
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    BOLT
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • 23
    10-84845M BOLT
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    BOLT
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 24
    12-82217M WASHER
    WASHER
  • 25
    11-82382M NUT
    NUT
  • 26
    84846M MOUNT, RUBBER - LOWER FRONT
    MOUNT, RUBBER - LOWER FRONT
  • 27
    84847M COVER
    COVER
  • 28
    10-43106M BOLT
    BOLT
  • 29
    84848M MOUNT, RUBBER - LOWER SIDE
    MOUNT, RUBBER - LOWER SIDE
