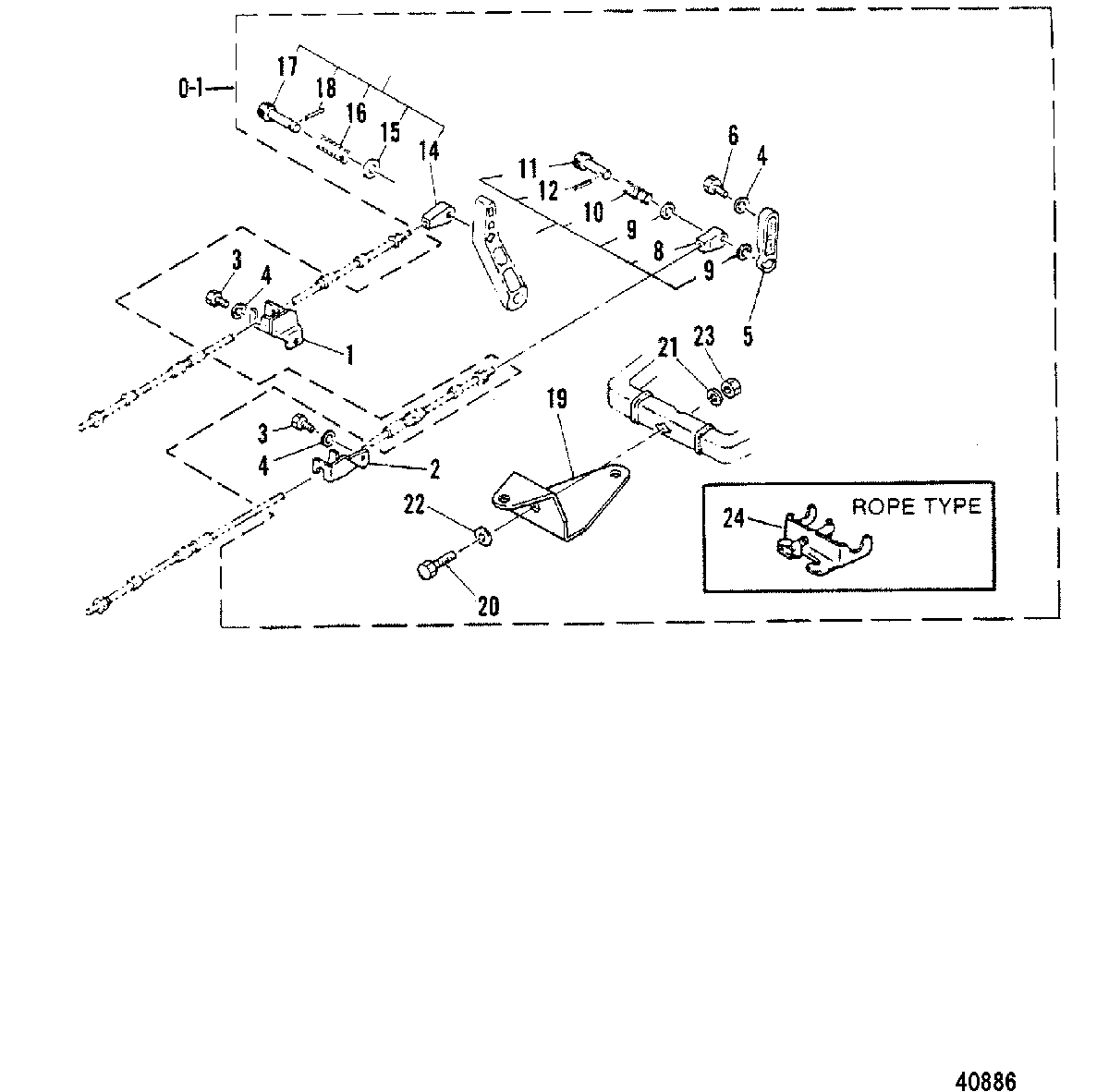

REMOTE CONTROL ATTACHING KIT для Mariner - 30A 689-100251 THRU 105324
-
№АртикулНазвание
-
0-143991A1 ATTACHING KIT
SN# M-007186/ML-308701/E-101516/EL-404001 & UpATTACHING KIT
SN# M-007186/ML-308701/E-101516/EL-404001 & Up -
0-18M0116998 ATTACHING KIT
SN# M-007185/ML-308700/E-101515/EL-404000 & BelowATTACHING KIT
SN# M-007185/ML-308700/E-101515/EL-404000 & Below -
184221M BRACKET, GEAR SHIFTBRACKET, GEAR SHIFT
-
283717M BRACKET, THROTTLEBRACKET, THROTTLE
-
310-826957M BOLTBOLT
-
412-82214M WASHERWASHER
-
584222M LEVER, ThrottleLEVER, Throttle
-
610-91772M BOLTBOLT
-
783933M END, Cable, THROTTLEEND, Cable, THROTTLE
-
883934M END, CableEND, Cable
-
912-82216M WASHERWASHER
-
1024-83725M SPRINGSPRING
-
1117-814499M HOOKHOOK
-
1217-82146M PIN, ROLLPIN, ROLL
-
1383719M END, Cable, SHIFTEND, Cable, SHIFT
-
1483720M END, CableEND, Cable
-
1512-82216M WASHERWASHER
-
1624-83721M SPRINGSPRING
-
1717-814500M HOOKHOOK
-
1817-82146M PIN, ROLLPIN, ROLL
-
1991635M BRACKET, STEERING
SN# M-007186/ML-308701/E-101516/EL-404001 & UpBRACKET, STEERING
SN# M-007186/ML-308701/E-101516/EL-404001 & Up -
1911670T BRACKET, STEERING
SN# M-007185/ML-308700/E-101515/EL-404000 & BelowBRACKET, STEERING
SN# M-007185/ML-308700/E-101515/EL-404000 & Below -
2010-91636M BOLTBOLT
-
2113-82218M LOCKWASHERLOCKWASHER
-
2212-82220M WASHERWASHER
-
2311-81785M LOCKNUT
SN# M-010646/ML-311476/E-102356/EL-405456 & UpLOCKNUT
SN# M-010646/ML-311476/E-102356/EL-405456 & Up -
2311-82395M NUT
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowNUT
SN# M-010645/ML-311475/E-102355/EL-405455 & Below
