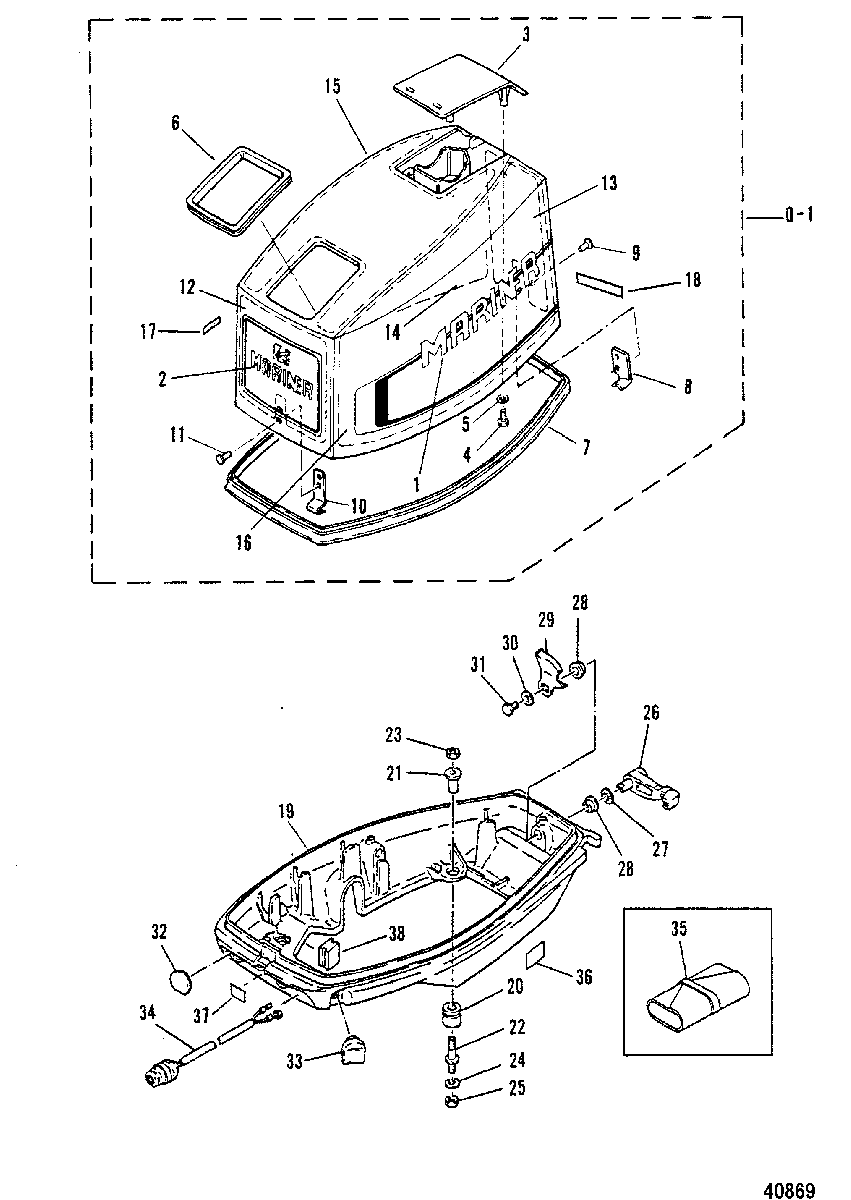

COWLING для Mariner - 30A 689-100251 THRU 105324

  • №
    Артикул
    Название
  • 0-1
    2168-811158M TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 1
    37-95674M DECAL SET, SIDE AND REAR
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    DECAL SET, SIDE AND REAR
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • 1
    37-95674M DECAL SET, SIDE AND REAR
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    DECAL SET, SIDE AND REAR
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 2
    37-95675M DECAL, FRONT
    DECAL, FRONT
  • 3
    95676M MOLDING, AIR DUCT
    MOLDING, AIR DUCT
  • 4
    10-91772M BOLT
    BOLT
  • 5
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 6
    84900M SEAL, RUBBER
    SEAL, RUBBER
  • 7
    84901M SEAL, COWL
    SEAL, COWL
  • 8
    42433M HOOK, REAR
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    HOOK, REAR
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • 8
    84902M HOOK, REAR
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    HOOK, REAR
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 9
    17-84903M RIVET
    RIVET
  • 10
    811160M HOOK, FRONT
    HOOK, FRONT
  • 11
    17-83140M RIVET
    RIVET
  • 12
    84323M SOUND BLANKET, FRONT
    SOUND BLANKET, FRONT
  • 13
    84323M SOUND BLANKET, REAR
    SOUND BLANKET, REAR
  • 14
    83125M SOUND BLANKET, STARBOARD
    SOUND BLANKET, STARBOARD
  • 15
    83232M SOUND BLANKET, TOP
    SOUND BLANKET, TOP
  • 16
    83125M SOUND BLANKET, PORT
    SOUND BLANKET, PORT
  • 17
    37-81202M DECAL, Shift Indicator
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    DECAL, Shift Indicator
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 18
    37-95547M DECAL, 30E MODEL
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    DECAL, 30E MODEL
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 19
    2168-9349M BOTTOM COWL
    BOTTOM COWL
  • 20
    25-84910M GROMMET
    GROMMET
  • 21
    23-84911M COLLAR
    COLLAR
  • 22
    16-95505M STUD
    STUD
  • 23
    11-82383M NUT
    NUT
  • 24
    12-82217M WASHER
    WASHER
  • 25
    11-82383M NUT
    NUT
  • 26
    84913M LEVER, COWL CLAMP
    LEVER, COWL CLAMP
  • 27
    13-81869M WASHER, WAVE
    WASHER, WAVE
  • 28
    23-81949M BUSHING
    BUSHING
  • 29
    54-84914M CLAMP
    CLAMP
  • 30
    12-81794M WASHER
    WASHER
  • 31
    10-84088M BOLT
    BOLT
  • 32
    25-83988M GROMMET
    GROMMET
  • 33
    25-826981M GROMMET
    GROMMET
  • 34
    87-93102M SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 35
    91-803581 TOOL KIT
    TOOL KIT
  • 36
    37-42434M DECAL, HP
    DECAL, HP
  • 37
    37-95570M DECAL
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    DECAL
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 38
    25-83728M GROMMET
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    GROMMET
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
