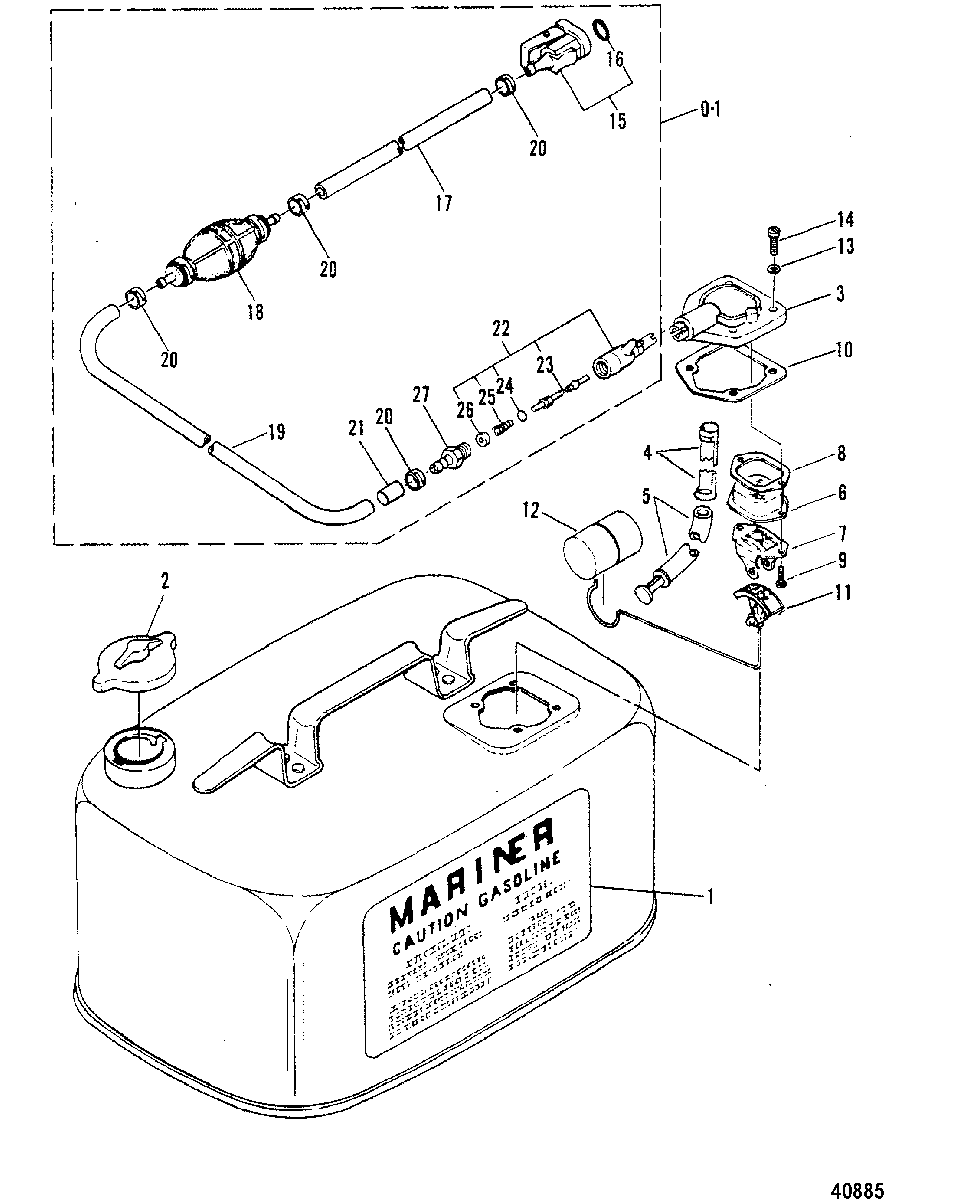

FUEL TANK(M-019155/ML-318599/E-104325/EL-409500 для Mariner - 30A 689-100251 THRU 105324
-
№АртикулНазвание
-
137-82984M DECAL, SIDEDECAL, SIDE
-
236-18962M CAP, Fuel TankCAP, Fuel Tank
-
383618M METER ASSEMBLY, FuelMETER ASSEMBLY, Fuel
-
454-83764M CLAMP, PICKUP HOSECLAMP, PICKUP HOSE
-
532-94727M HOSE, PICKUPHOSE, PICKUP
-
680269M LENS, INDICATORLENS, INDICATOR
-
780268M BRACKET, INDICATORBRACKET, INDICATOR
-
827-17540M GASKET, HOUSING TO LENS INDICATORGASKET, HOUSING TO LENS INDICATOR
-
910-83523M SCREWSCREW
-
1027-81320M GASKET, HOUSING TO TANKGASKET, HOUSING TO TANK
-
1181318M INDICATOR, FUEL LEVELINDICATOR, FUEL LEVEL
-
1281319M FLOAT, INDICATORFLOAT, INDICATOR
-
1312-95501M WASHER, HOUSING SCREWWASHER, HOUSING SCREW
-
1410-82496M SCREW, HOUSING ATTACHINGSCREW, HOUSING ATTACHING
-
0-132-877681Q8 LINE ASSEMBLY, FuelLINE ASSEMBLY, Fuel
-
1522-14213Q HOUSING ASSEMBLY, ENGINE ENDHOUSING ASSEMBLY, ENGINE END
-
1625-82789M O-RINGO-RING
-
1732-94727M HOSE, CONNECTOR HOUSING TO BULBHOSE, CONNECTOR HOUSING TO BULB
-
1889396Q01 PRIMER BULBPRIMER BULB
-
1932-94727M HOSE, BULB TO CONNECTORHOSE, BULB TO CONNECTOR
-
2054-16725M CLAMP, HOSECLAMP, HOSE
-
2123-81327M COLLARCOLLAR
-
2230185Q3 BAYONET BODY ASSEMBLYBAYONET BODY ASSEMBLY
-
2330185Q3 STEM, BAYONET BODYSTEM, BAYONET BODY
-
2425-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
2524-30189 SPRING, BAYONET BODY STEMSPRING, BAYONET BODY STEM
-
2630188 WASHER, CAPWASHER, CAP
-
2722-63187 FITTING, Barb (.250-18)FITTING, Barb (.250-18)
