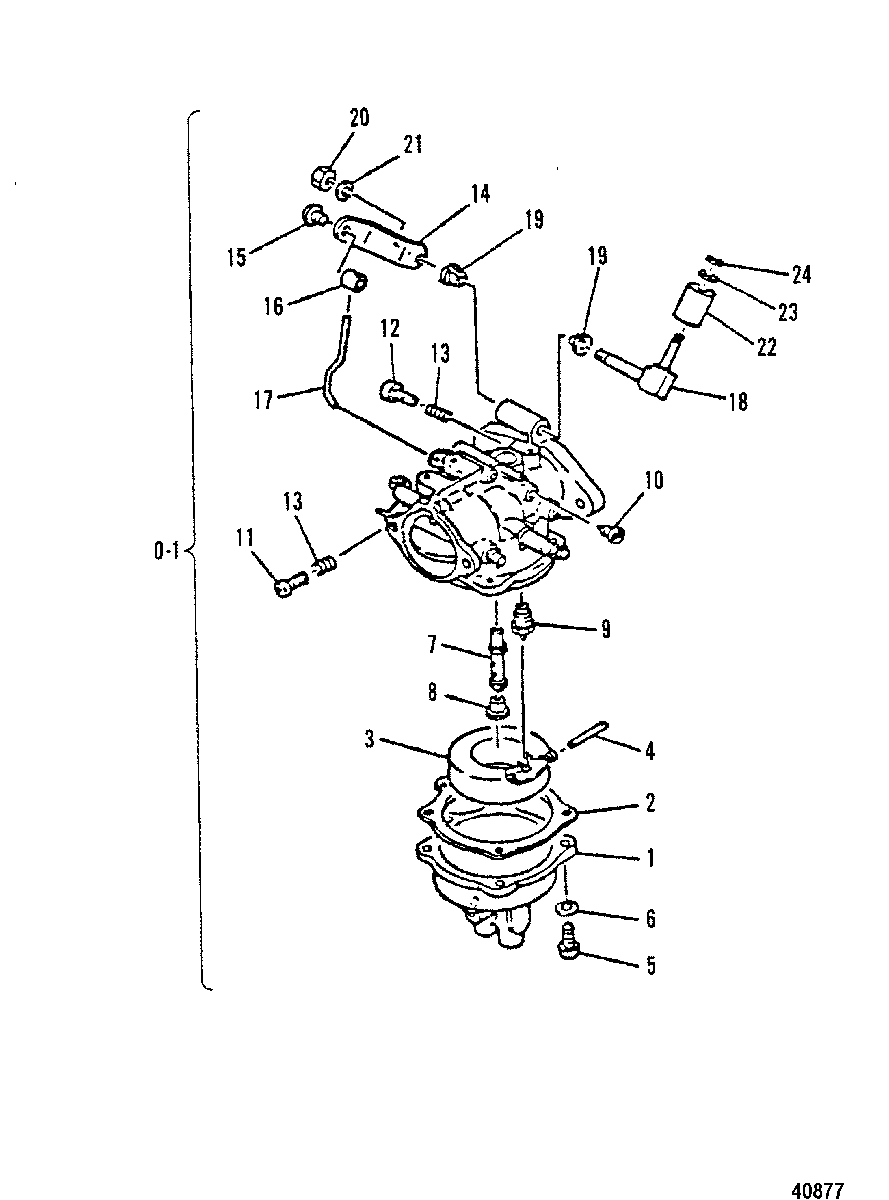

CARBURETOR для Mariner - 30A 689-100251 THRU 105324

  • №
    Артикул
    Название
  • 0-1
    1383-7841M CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 1
    84764M FLOAT BOWL
    FLOAT BOWL
  • 2
    27-80590M GASKET, FLOAT BOWL
    GASKET, FLOAT BOWL
  • 3
    80591M FLOAT
    FLOAT
  • 4
    17-11794M NUT
    NUT
  • 5
    10-82515M SCREW
    SCREW
  • 6
    13-82206M LOCKWASHER
    LOCKWASHER
  • 7
    84766M NOZZLE
    NOZZLE
  • 8
    84767M JET, MAIN (#135)
    JET, MAIN (#135)
  • 9
    80593M VALVE/SEAT KIT, Inlet
    VALVE/SEAT KIT, Inlet
  • 10
    95550M JET, PILOT (#54)
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    JET, PILOT (#54)
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 10
    95550M JET, PILOT (#54)
    SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820/ML-318386/E-104275/EL-409415
    JET, PILOT (#54)
    SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820/ML-318386/E-104275/EL-409415
  • 10
    80578M JET, PILOT (#60)
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    JET, PILOT (#60)
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 11
    10-83509M SCREW, IDLE SPEED
    SCREW, IDLE SPEED
  • 12
    10-80573M SCREW, IDLE MIXTURE
    SCREW, IDLE MIXTURE
  • 13
    24-814460M SPRING
    SPRING
  • 14
    84768M LEVER, Throttle Rod
    LEVER, Throttle Rod
  • 15
    10-80091M SCREW
    SCREW
  • 16
    84770M RETAINER, THROTTLE ROD
    RETAINER, THROTTLE ROD
  • 17
    84771M ROD, THROTTLE
    ROD, THROTTLE
  • 18
    811037M ARM, Throttle
    ARM, Throttle
  • 19
    23-81941M BUSHING
    BUSHING
  • 20
    11-83763M NUT
    NUT
  • 21
    13-82186M WASHER
    WASHER
  • 22
    23-84454M BUSHING, THROTTLE ARM
    BUSHING, THROTTLE ARM
  • 23
    12-82209M WASHER
    WASHER
  • 24
    53-82328M RING, Snap
    RING, Snap
  • -
    811038M REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
  • -
    27-96658M GASKET SET, POWERHEAD
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    GASKET SET, POWERHEAD
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • -
    27-84744M GASKET SET, POWERHEAD
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    GASKET SET, POWERHEAD
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
