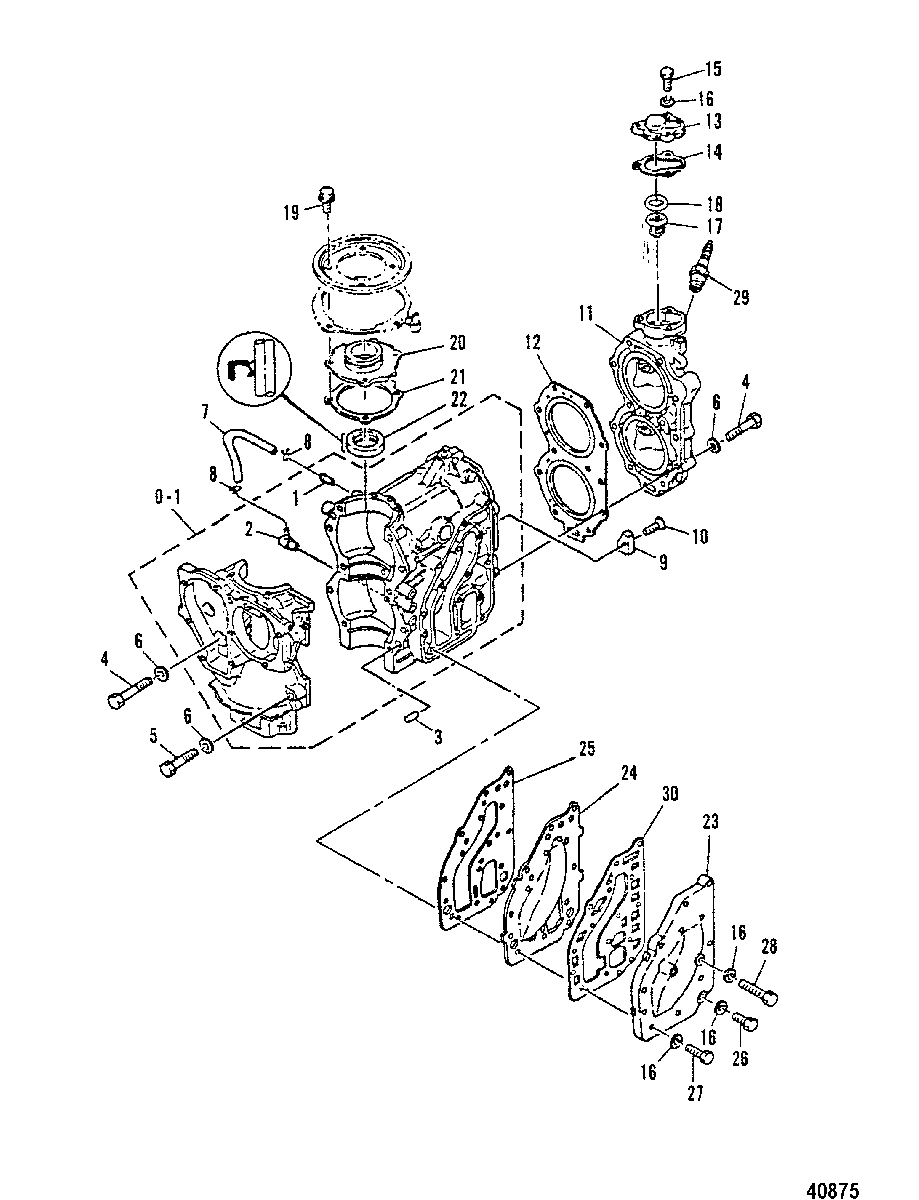

CRANKCASE AND CYLINDER HEAD для Mariner - 30A 689-100251 THRU 105324

  • №
    Артикул
    Название
  • 0-1
    870-9371M CRANKCASE ASSEMBLY
    CRANKCASE ASSEMBLY
  • 1
    22-80122M FITTING, DRAIN
    FITTING, DRAIN
  • 2
    21-80727M CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    17-82364M PIN, Dowel
    PIN, Dowel
  • 4
    10-41885M BOLT
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    BOLT
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • 4
    10-82406M BOLT
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    BOLT
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 5
    10-8M0101617 BOLT, (M8 x 55)
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    BOLT, (M8 x 55)
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • 5
    10-82408M BOLT
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    BOLT
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 6
    12-80564M WASHER
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    WASHER
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 7
    32-811045M HOSE
    HOSE
  • 8
    54-82046M CLAMP, HOSE
    CLAMP, HOSE
  • 9
    97-84732M ANODE
    ANODE
  • 10
    10-95209M SCREW
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    SCREW
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 10
    10-95209M SCREW
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
    SCREW
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
  • 11
    968-7194M CYLINDER HEAD
    CYLINDER HEAD
  • 12
    27-19138 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 13
    81030M COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 14
    27-81031 GASKET, COVER
    GASKET, COVER
  • 15
    10-84058M BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 16
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 17
    99080M THERMOSTAT
    THERMOSTAT
  • 18
    12-81835M WASHER
    WASHER
  • 19
    10-84735M BOLT
    BOLT
  • 20
    84736M HOUSING, UPPER OIL SEAL
    HOUSING, UPPER OIL SEAL
  • 21
    27-84737M GASKET, OIL SEAL HOUSING
    GASKET, OIL SEAL HOUSING
  • 22
    26-811021M SEAL, Oil, UPPER
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    SEAL, Oil, UPPER
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • 22
    26-84738M SEAL, Oil, UPPER
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    SEAL, Oil, UPPER
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • 23
    95680M COVER, Outer Exhaust
    COVER, Outer Exhaust
  • 24
    95681M COVER, Inner Exhaust
    COVER, Inner Exhaust
  • 25
    27-84741M GASKET, EXHAUST COVER
    GASKET, EXHAUST COVER
  • 26
    10-82405M BOLT
    BOLT
  • 27
    10-83285M BOLT
    BOLT
  • 28
    10-84931M BOLT
    BOLT
  • 29
    33-8M0114739 SPARK PLUG (NGK B-7HS)
    SPARK PLUG (NGK B-7HS)
  • 30
    27-96656M GASKET
    GASKET
  • -
    95678M POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • -
    84743M POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • -
    27-96658M GASKET SET, POWERHEAD
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    GASKET SET, POWERHEAD
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • -
    27-84744M GASKET SET, POWERHEAD
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    GASKET SET, POWERHEAD
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
