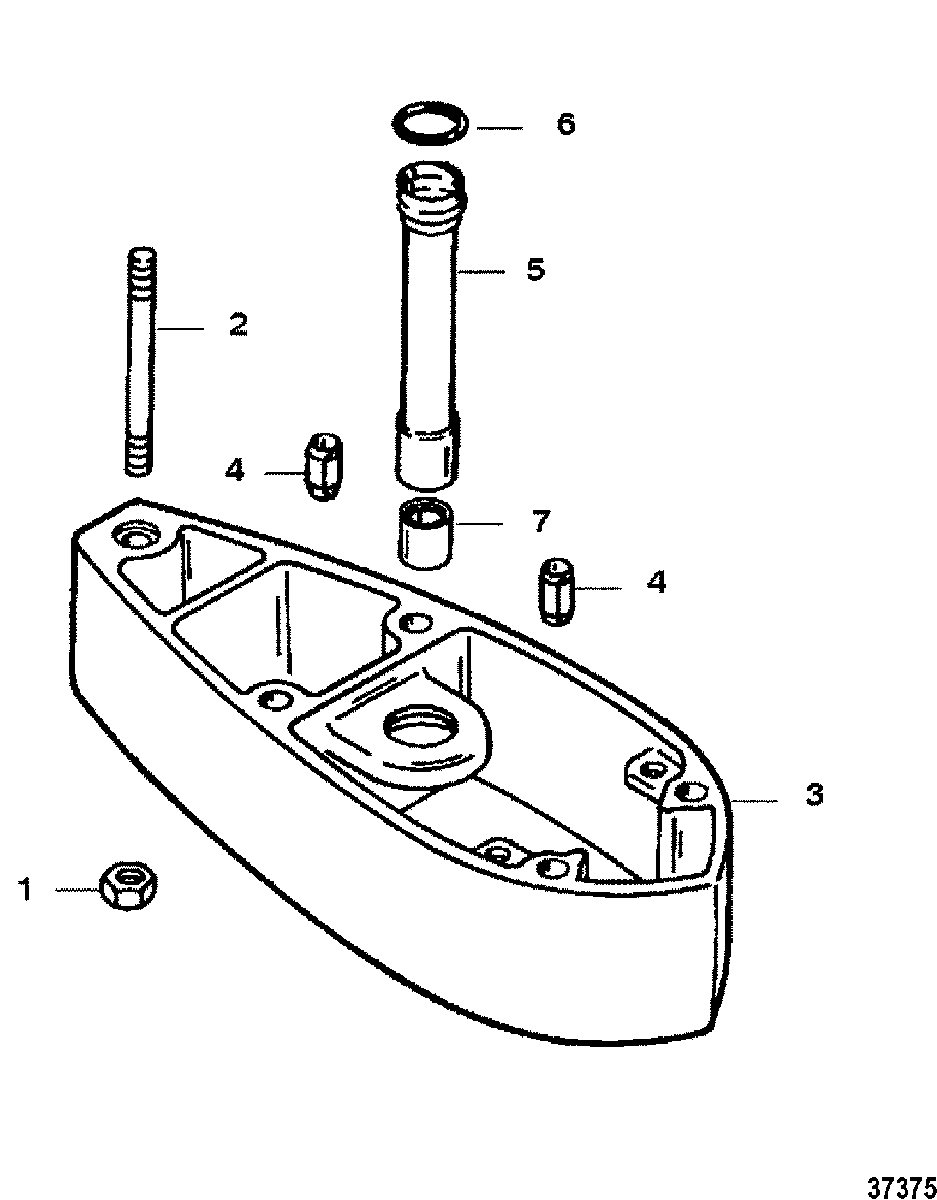

X-LONG COMPONENTS для Mariner - 30 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
111-40140 NUT, (M10)NUT, (M10)
-
216-8168665 STUD, (M10 x 130)STUD, (M10 x 130)
-
3824072A1 SPACER, Driveshaft Housing Extension
(BLACK)SPACER, Driveshaft Housing Extension
(BLACK) -
3824072A2 SPACER, Driveshaft Housing Extension
(GRAY)SPACER, Driveshaft Housing Extension
(GRAY) -
417-821327 PIN, DowelPIN, Dowel
-
5824082A1 TUBE ASSEMBLY, Water - ExtensionTUBE ASSEMBLY, Water - Extension
-
625-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
726-824084 SEALSEAL
-
-27-822420A94 GASKET SETGASKET SET
-
-823547A2 SEAL KITSEAL KIT
