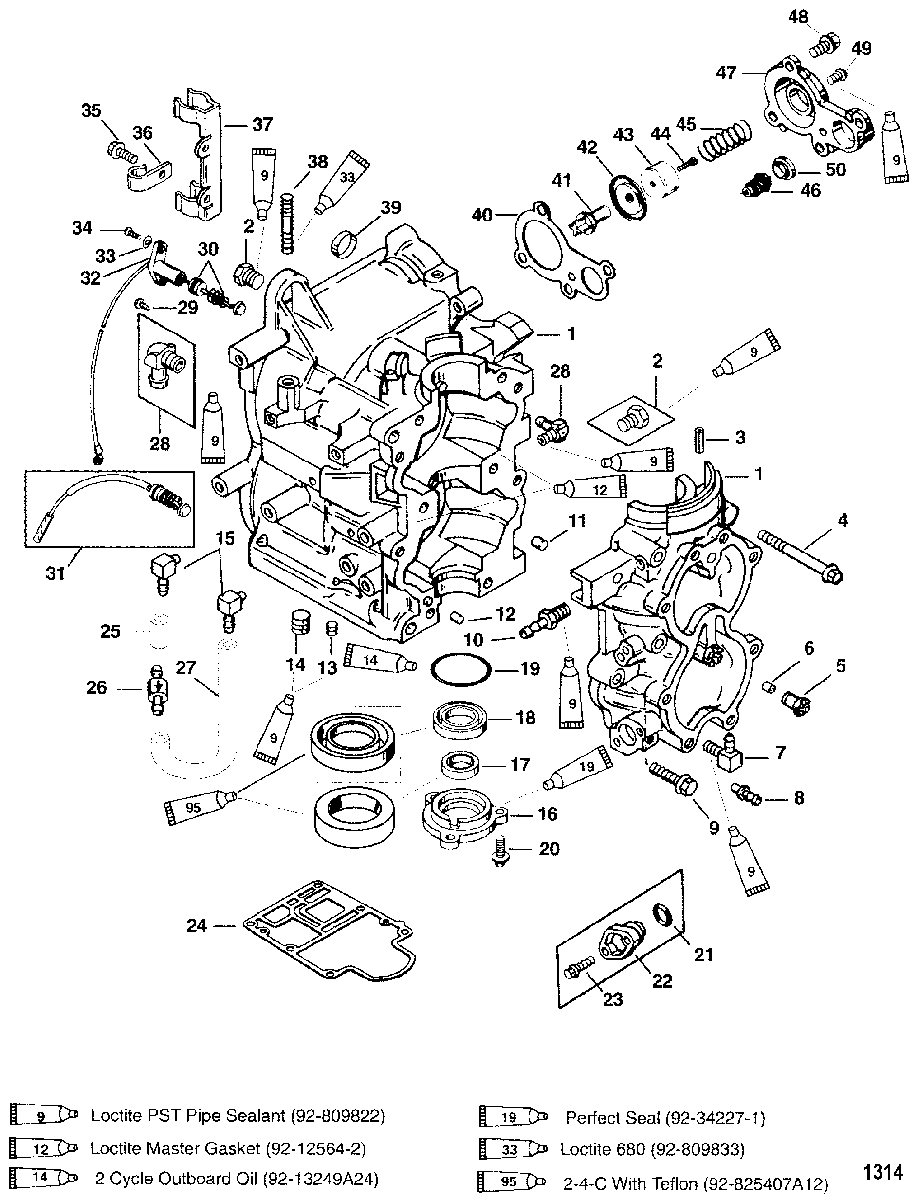

CYLINDER BLOCK(CONTINUED) для Mariner - 30 (2 CYL.) 0G055314 THRU 0G760299

  • №
    Артикул
    Название
  • 21
    25-48462 O-RING, (.614 x .070) (INCLUDED WITH REF #1)
    MANUAL
    O-RING, (.614 x .070) (INCLUDED WITH REF #1)
    MANUAL
  • 22
    8129962 COVER
    MANUAL
    COVER
    MANUAL
  • 23
    10-40011108 SCREW, (M5 x 20) Stainless Steel (HEX WASHER HEAD)
    MANUAL
    SCREW, (M5 x 20) Stainless Steel (HEX WASHER HEAD)
    MANUAL
  • 24
    27-8M0000822 GASKET (INCLUDED W/ REF #1)
    GASKET (INCLUDED W/ REF #1)
  • 25
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 1-1/2 IN.)
    TUBING, (20.00 Feet Bulk) (Cut to 1-1/2 IN.)
  • 26
    21-149126 CHECK VALVE (DOUBLE END)
    CHECK VALVE (DOUBLE END)
  • 27
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 5-1/2 IN.)
    TUBING, (20.00 Feet Bulk) (Cut to 5-1/2 IN.)
  • 28
    22-996642 ELBOW (1/8-MALE)
    ELBOW (1/8-MALE)
  • 29
    10-878609 SCREW, (#10-16 x .600) (SELF TAP)
    SCREW, (#10-16 x .600) (SELF TAP)
  • 30
    787992 SENDER, Temperature
    (DESIGN I)
    SENDER, Temperature
    (DESIGN I)
  • 31
    787994 SENDER
    (DESIGN II)
    SENDER
    (DESIGN II)
  • 32
    889733 RETAINER
    RETAINER
  • 33
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 34
    10-878609 SCREW, (#10-16 x .600) (SELF TAP)
    SCREW, (#10-16 x .600) (SELF TAP)
  • 35
    10-878609 SCREW, (#10-16 x .600) (QTY. OF 4 ON ELECTRIC)
    SCREW, (#10-16 x .600) (QTY. OF 4 ON ELECTRIC)
  • 36
    54-816311T TIE STRAP, (8.00 Inches)
    ELECTRIC
    TIE STRAP, (8.00 Inches)
    ELECTRIC
  • 37
    8261151 CLAMP
    ELECTRIC
    CLAMP
    ELECTRIC
  • 38
    16-8161949 STUD (M6 X 1 X 44 DOUBLE END)
    STUD (M6 X 1 X 44 DOUBLE END)
  • 39
    NSS NOT SOLD SEPARATE, PLATE
    NOT SOLD SEPARATE, PLATE
  • 40
    27-8128672 GASKET
    (INCLUDED WITH REF #1)
    GASKET
    (INCLUDED WITH REF #1)
  • 41
    8128821 POPPET
    POPPET
  • 42
    812887002 DIAPHRAGM
    DIAPHRAGM
  • 43
    12-94182 WASHER (SPECIAL)
    WASHER (SPECIAL)
  • 44
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 45
    24-47968 SPRING
    SN# USA 0G590000/BEL 9973100 & Up
    SPRING
    SN# USA 0G590000/BEL 9973100 & Up
  • 45
    24-90392 SPRING
    SN# USA 0G58999/BEL 9973099 & Up
    SPRING
    SN# USA 0G58999/BEL 9973099 & Up
  • 46
    895338 THERMOSTAT, 54A°C (130A°F)
    THERMOSTAT, 54A°C (130A°F)
  • 46
    14586 THERMOSTAT (120 DEGREES)
    THERMOSTAT (120 DEGREES)
  • 47
    8M0036859 COVER
    COVER
  • 48
    10-40011149 SCREW, (M8 x 25) Stainless Steel (INCL. W/ REF #1)
    SCREW, (M8 x 25) Stainless Steel (INCL. W/ REF #1)
  • 49
    10-12896 SCREW, (#8-18 x .310) (SELF TAP)
    (INTERNATIONAL)
    SCREW, (#8-18 x .310) (SELF TAP)
    (INTERNATIONAL)
  • 50
    27-62386001 GASKET (INCLUDED W/ REF #1)
    GASKET (INCLUDED W/ REF #1)
  • -
    27-822420A94 GASKET SET
    GASKET SET
  • -
    808569T02 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
