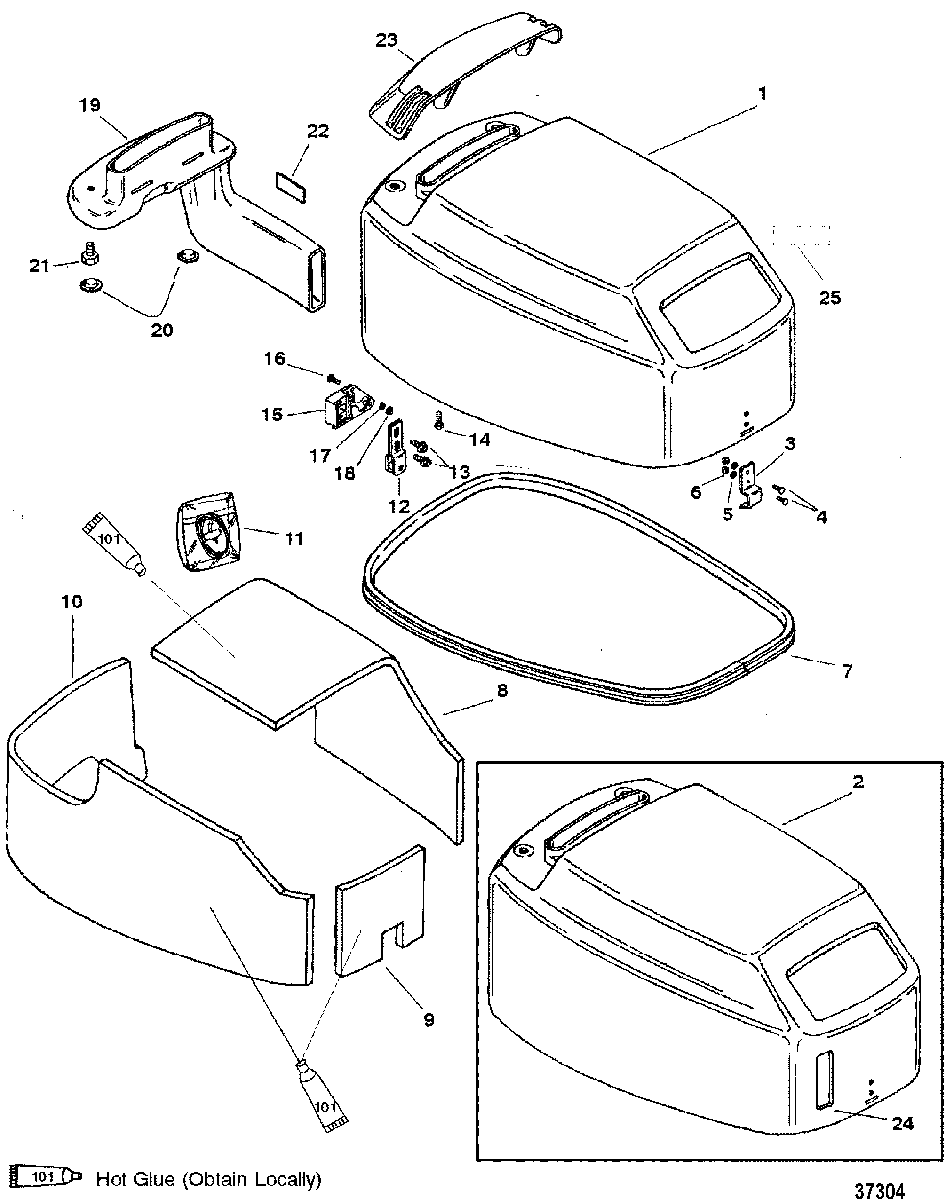

TOP COWL для Mariner - 30 (2 CYL.) 0G055314 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    4011-821528T5 TOP COWL ASSEMBLY
    (BLACK) MANUAL
    TOP COWL ASSEMBLY
    (BLACK) MANUAL
  • 1
    4011-821528T11 TOP COWL ASSEMBLY
    (SILVER) MANUAL
    TOP COWL ASSEMBLY
    (SILVER) MANUAL
  • 2
    4011-821528T7 TOP COWL ASSEMBLY
    (BLACK) ELECTRIC
    TOP COWL ASSEMBLY
    (BLACK) ELECTRIC
  • 2
    4011-821528T8 TOP COWL ASSEMBLY
    (SILVER) ELECTRIC
    TOP COWL ASSEMBLY
    (SILVER) ELECTRIC
  • 3
    825742F1 LATCH
    (BLACK)
    LATCH
    (BLACK)
  • 3
    825742F2 LATCH
    (GRAY)
    LATCH
    (GRAY)
  • 3
    825742F1 LATCH
    (SILVER)
    LATCH
    (SILVER)
  • 4
    10-8231871 SCREW, (M4 x 14.5)
    SCREW, (M4 x 14.5)
  • 5
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 6
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 7
    8M0043406 SEAL, Cowl
    SEAL, Cowl
  • 8
    821530A02 SOUND BLANKET KIT, (Top/Side)(Hot Glue Adhesive)
    SOUND BLANKET KIT, (Top/Side)(Hot Glue Adhesive)
  • 9
    NSS NOT SOLD SEPARATE, SOUND BLANKET (FRONT)
    NOT SOLD SEPARATE, SOUND BLANKET (FRONT)
  • 10
    NSS NOT SOLD SEPARATE, SOUND BLANKET (SIDE/REAR)
    NOT SOLD SEPARATE, SOUND BLANKET (SIDE/REAR)
  • 11
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start
    ROPE AND HANDLE KIT, Manual/Emergency Start
  • 12
    893763 BRACKET ASSEMBLY, Latch Roller
    BRACKET ASSEMBLY, Latch Roller
  • 13
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 14
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 15
    8M0038412 BRACKET
    BRACKET
  • 16
    10-8231871 SCREW, (M4 x 14.5)
    SCREW, (M4 x 14.5)
  • 17
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 18
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 19
    NSS NOT SOLD SEPARATE, DUCT-AIR INLNET
    NOT SOLD SEPARATE, DUCT-AIR INLNET
  • 20
    19-815784 CAP
    CAP
  • 21
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 22
    NSS NOT SOLD SEPARATE, TAPE (DOUBLE SIDED)
    NOT SOLD SEPARATE, TAPE (DOUBLE SIDED)
  • 23
    100-8M0053822 SHIELD, Air Inlet
    (BLACK)
    SHIELD, Air Inlet
    (BLACK)
  • 23
    821529T3 SHIELD, Air Inlet
    (GRAY)
    SHIELD, Air Inlet
    (GRAY)
  • 23
    821529T3 SHIELD, Air Inlet
    (SILVER)
    SHIELD, Air Inlet
    (SILVER)
  • 24
    NSS NOT SOLD SEPARATE, WINDOW-OIL SITE GAUGE
    NOT SOLD SEPARATE, WINDOW-OIL SITE GAUGE
  • 25
    37-855577A6 DECAL, EPA Label Information (INSIDE TOP COWL)
    (1998) (SEE NOTE)
    DECAL, EPA Label Information (INSIDE TOP COWL)
    (1998) (SEE NOTE)
