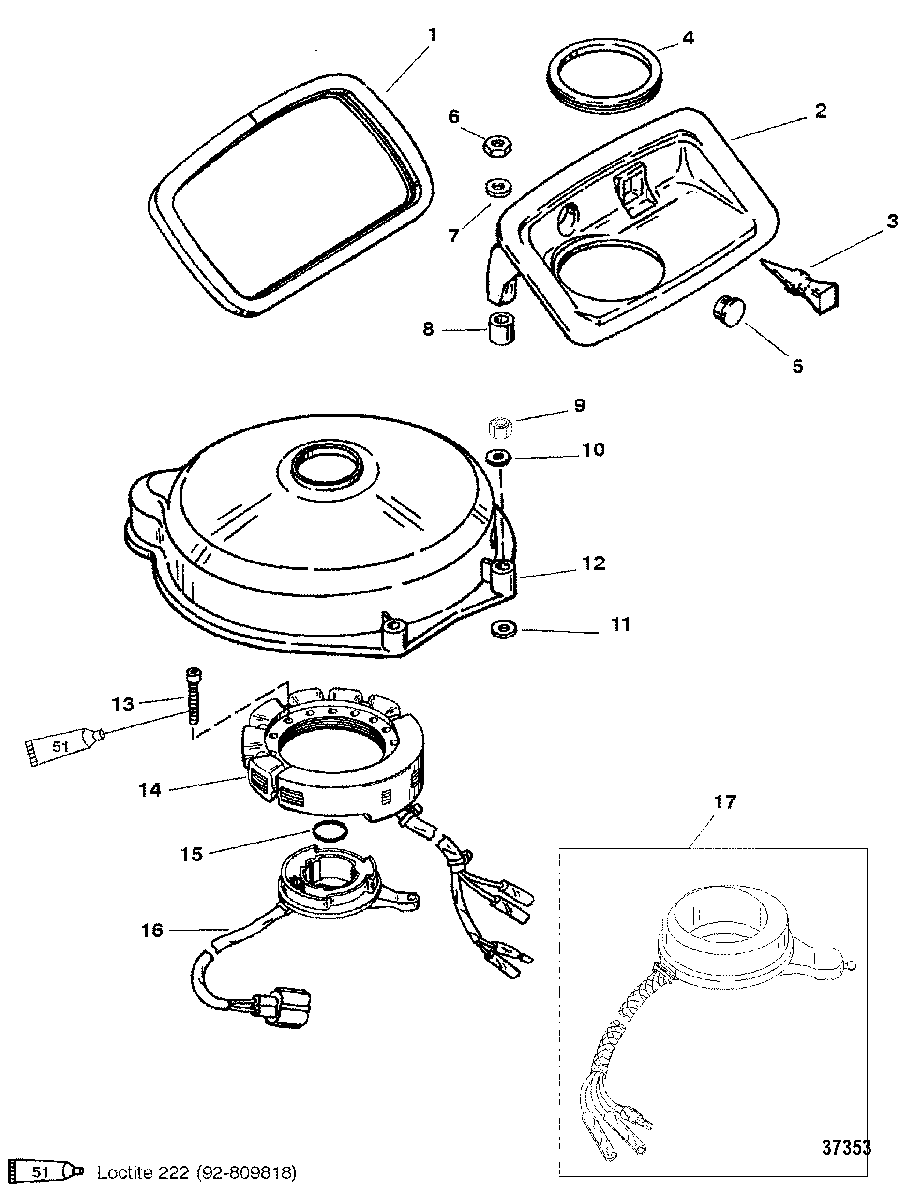

STATOR/TRIGGER(ELECTRIC MODELS) для Mariner - 30 (2 CYL.) 0G055314 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    8M0043416 SEAL (USE WHERE APPLICABLE)
    SEAL (USE WHERE APPLICABLE)
  • 2
    821788A1 REST (OIL INJECTION)
    I.D. OF REST ROPE HOLE IS 1/4 IN.
    REST (OIL INJECTION)
    I.D. OF REST ROPE HOLE IS 1/4 IN.
  • 3
    19-822513 PLUG, Starter Handle
    I.D. OF REST ROPE HOLE IS 1/4 IN.
    PLUG, Starter Handle
    I.D. OF REST ROPE HOLE IS 1/4 IN.
  • 2
    821788A1 REST KIT
    I.D. OF REST ROPE HOLE IS 1/3 IN.
    REST KIT
    I.D. OF REST ROPE HOLE IS 1/3 IN.
  • 3
    19-822513002 PLUG
    I.D. OF REST ROPE HOLE IS 1/3 IN.
    PLUG
    I.D. OF REST ROPE HOLE IS 1/3 IN.
  • 4
    823771001 GROMMET
    GROMMET
  • 5
    19-822464 PLUG
    PLUG
  • 6
    11-401196 NUT, (M6)
    USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"
    NUT, (M6)
    USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"
  • 7
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"
    WASHER, (.255 x .620 x .030) Stainless Steel
    USE WITH STUD - REF. #6 ON "INDUCTION MANIFOLD"
  • 8
    23-822392 SPACER
    SPACER
  • 9
    11-401366 NUT, (M6)
    NUT, (M6)
  • 10
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 11
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    WASHER, (.187 x .500 x .062) Neoprene
  • 12
    812777T1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 13
    10-4013930 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 14
    398-832075A21 IGNITION STATOR KIT
    IGNITION STATOR KIT
  • 15
    25-62457 O-RING
    SN# USA 0G589999, BEL 9973099 & Below
    O-RING
    SN# USA 0G589999, BEL 9973099 & Below
  • 16
    99021A14 TRIGGER
    TRIGGER
  • 17
    853960T TRIGGER
    SN# USA 0G590000, BEL 9973100 & Up
    TRIGGER
    SN# USA 0G590000, BEL 9973100 & Up
  • -
    27-822420A94 GASKET SET
    GASKET SET
