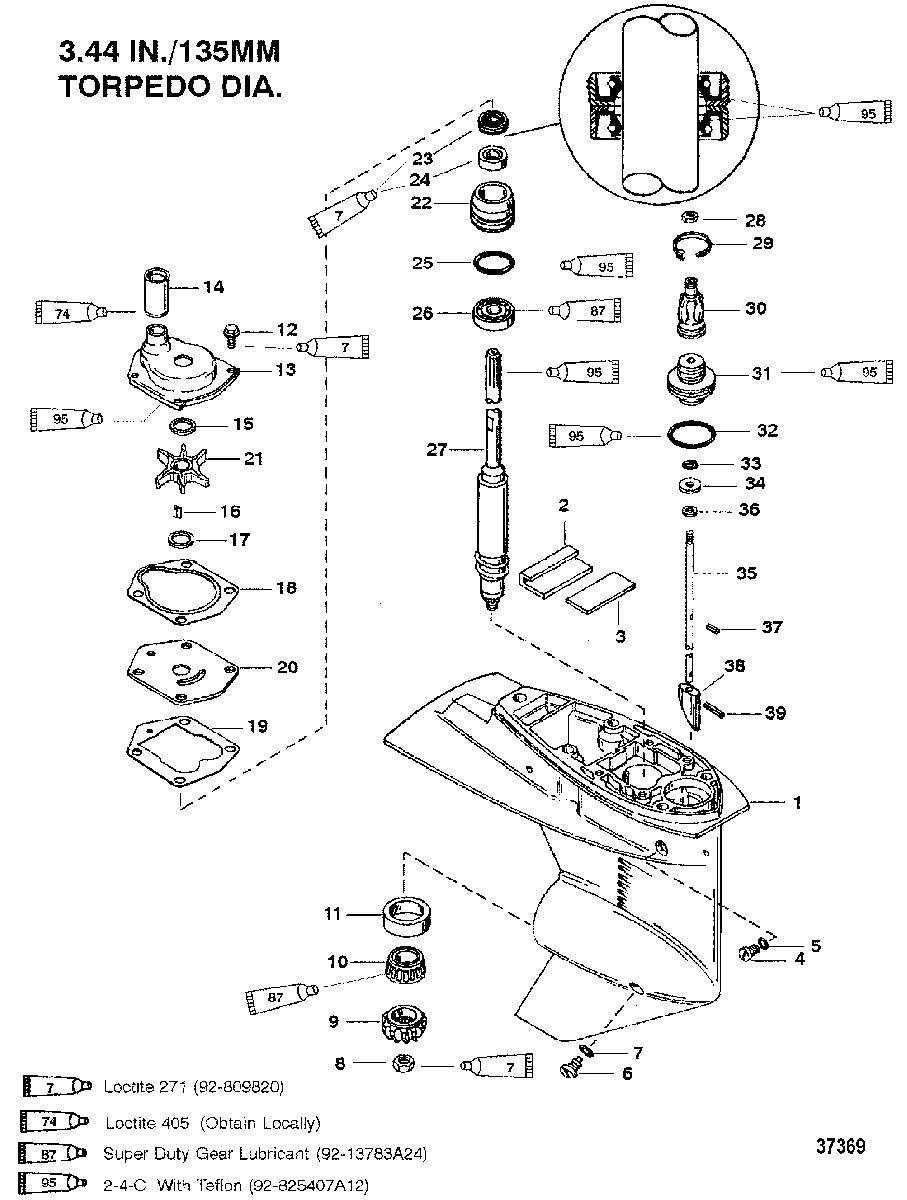

GEAR HOUSING(DRIVESHAFT)(2.00:1 GEAR RATIO) для Mariner - 30 (2 CYL.) 0G055314 THRU 0G760299
-
№АртикулНазвание
-
-1682-821306T8 GEAR HOUSING ASSEMBLY
(SHORT-BLACK)GEAR HOUSING ASSEMBLY
(SHORT-BLACK) -
-1682-821306T6 GEAR HOUSING ASSEMBLY
(LONG-BLACK)GEAR HOUSING ASSEMBLY
(LONG-BLACK) -
-1682-821306A10 GEAR HOUSING ASSEMBLY
(X-LONG-BLACK)GEAR HOUSING ASSEMBLY
(X-LONG-BLACK) -
-1682-821306T9 GEAR HOUSING ASSEMBLY
(SHORT-GRAY)GEAR HOUSING ASSEMBLY
(SHORT-GRAY) -
-1682-821306T7 GEAR HOUSING ASSEMBLY
(LONG-GRAY)GEAR HOUSING ASSEMBLY
(LONG-GRAY) -
-1682-821306A11 GEAR HOUSING ASSEMBLY
(X-LONG-GRAY)GEAR HOUSING ASSEMBLY
(X-LONG-GRAY) -
11682-821306T12 GEAR HOUSING ASSEMBLY
(BASIC-BLACK)GEAR HOUSING ASSEMBLY
(BASIC-BLACK) -
11682-821306T12 GEAR HOUSING ASSEMBLY
(BASIC-GRAY)GEAR HOUSING ASSEMBLY
(BASIC-GRAY) -
2818226A1 SEAL/PLATE KITSEAL/PLATE KIT
-
3NSS NOT SOLD SEPARATE, PLATE (PART OF REF #2)NOT SOLD SEPARATE, PLATE (PART OF REF #2)
-
410-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
512-191833 WASHER, FiberWASHER, Fiber
-
622-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
712-191833 WASHER, FiberWASHER, Fiber
-
811-55910 NUT, (.437-20)NUT, (.437-20)
-
943-821326T1 GEAR, Pinion - 13 TeethGEAR, Pinion - 13 Teeth
-
1031-821321A2 BEARING ASSEMBLYBEARING ASSEMBLY
-
11NSS NOT SOLD SEPARATE, CUP (PART OF REF #10)NOT SOLD SEPARATE, CUP (PART OF REF #10)
-
1210-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1346-821351A3 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
148235471 SEAL
(SHORT/LONG)SEAL
(SHORT/LONG) -
1512-866451 WASHERWASHER
-
1628-8M0032838 KEYKEY
-
1712-866451 WASHERWASHER
-
1827-822189 GASKET, Upper Water PumpGASKET, Upper Water Pump
-
1927-822217 GASKET, Lower Water PumpGASKET, Lower Water Pump
-
208213542 FACE PLATEFACE PLATE
-
2147-8508910 IMPELLERIMPELLER
-
2246-821307A2 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2326-821309 SEALSEAL
-
2426-821310 SEALSEAL
-
2525-821308 O-RING, (1.421 x .139)O-RING, (1.421 x .139)
-
2630-821311 BEARING, BallBEARING, Ball
-
2745-822466A1 DRIVESHAFT
(SHORT)DRIVESHAFT
(SHORT) -
2745-822159T1 DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
2745-822552A1 DRIVESHAFT
(X-LONG)DRIVESHAFT
(X-LONG) -
2811-400212 NUT, (M6) Stainless Steel
(INCLUDED WITH REF #35)NUT, (M6) Stainless Steel
(INCLUDED WITH REF #35) -
2954-8M0064024 TIE STRAPTIE STRAP
-
30822158 BOOTBOOT
-
31821827 RETAINERRETAINER
-
3225-26855 O-RING, (1.609 x .139)O-RING, (1.609 x .139)
-
3325-85594 O-RING, (.239 x .174)O-RING, (.239 x .174)
-
3412-814803 WASHERWASHER
-
35822453A1 SHIFT SHAFT
(SHORT)SHIFT SHAFT
(SHORT) -
35821319A1 SHIFT SHAFT
(LONG)SHIFT SHAFT
(LONG) -
35822543A1 SHIFT SHAFT
(X-LONG)SHIFT SHAFT
(X-LONG) -
3612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3717-85593 PIN, (.078 x .437)PIN, (.078 x .437)
-
388213161 CAM, ShiftCAM, Shift
-
3917-822369 PIN, (.125 x .625)PIN, (.125 x .625)
-
-27-822420A94 GASKET SETGASKET SET
-
-823547A2 SEAL KITSEAL KIT
-
-821354A2 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
