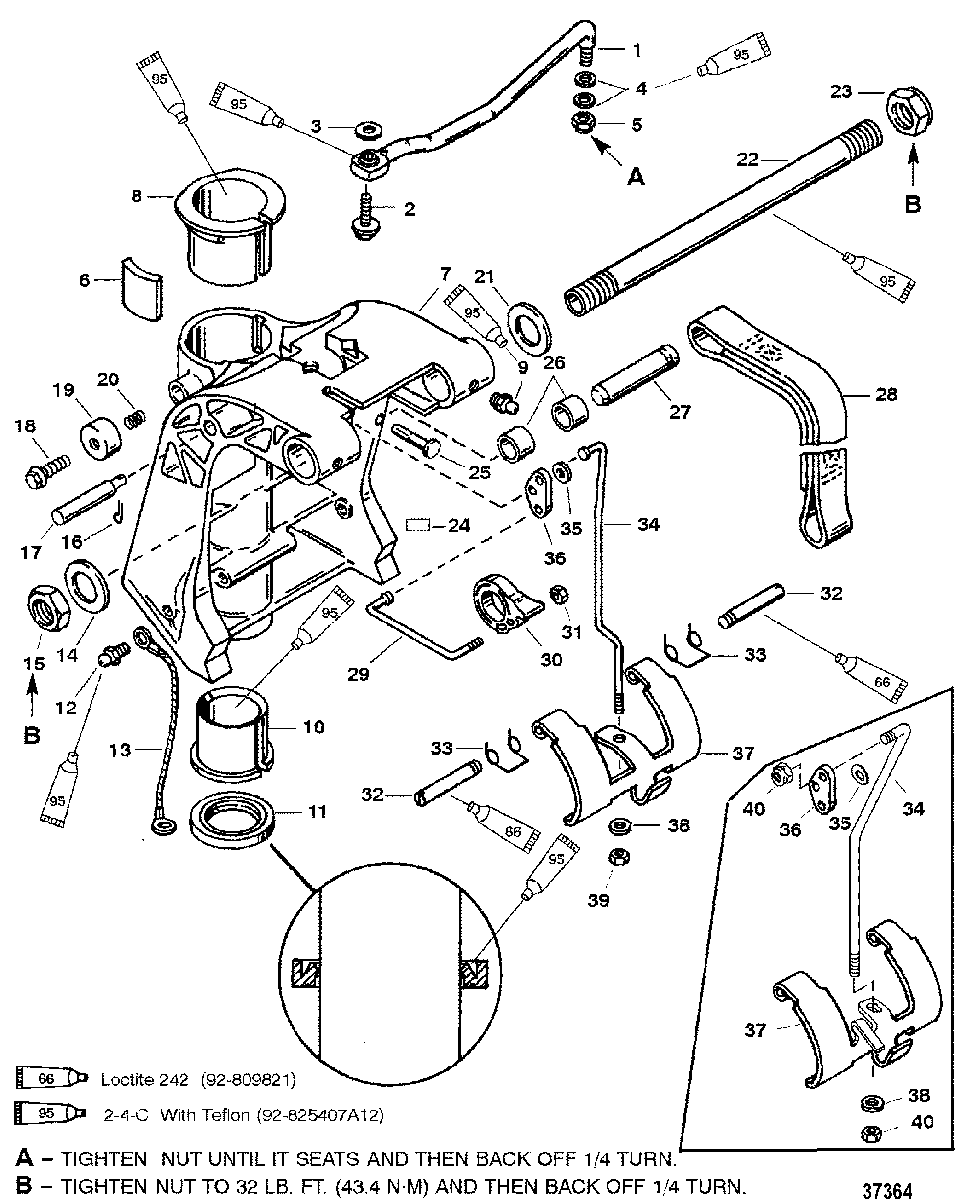

SWIVEL BRACKET для Mariner - 30 (2 CYL.) 0G055314 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    19608A14 LINK ROD
    LINK ROD
  • 2
    10-823919 SCREW, (.375-24 x 1.500)
    SCREW, (.375-24 x 1.500)
  • 3
    12-8M0109680 WASHER, (.390 x .546 x .12)
    WASHER, (.390 x .546 x .12)
  • 4
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 5
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 6
    822397 PUCK (NON HANDLE MODELS)
    PUCK (NON HANDLE MODELS)
  • 7
    3410-827402T5 SWIVEL BRACKET ASSEMBLY
    (BLACK)
    SWIVEL BRACKET ASSEMBLY
    (BLACK)
  • 7
    3410-827402T5 SWIVEL BRACKET ASSEMBLY
    (GRAY)
    SWIVEL BRACKET ASSEMBLY
    (GRAY)
  • 8
    23-8217711 BUSHING (UPPER)
    BUSHING (UPPER)
  • 9
    22-74036 FITTING, Grease
    FITTING, Grease
  • 10
    23-821777 BUSHING (LOWER)
    BUSHING (LOWER)
  • 11
    26-822404 SEAL
    SEAL
  • 12
    22-74036 FITTING, Grease
    FITTING, Grease
  • 13
    88238A11 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 14
    12-19619 WASHER
    WASHER
  • 15
    11-826164 NUT, (.875-14)
    NUT, (.875-14)
  • 16
    18-26811 COTTER PIN
    COTTER PIN
  • 17
    821799002 PIN, Pivot
    PIN, Pivot
  • 18
    10-4008910 SCREW, (M8 x 10) Stainless Steel
    (HANDLE)
    SCREW, (M8 x 10) Stainless Steel
    (HANDLE)
  • 18
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    NON HANDLE
    SCREW, (M8 x 25) Stainless Steel
    NON HANDLE
  • 19
    822005 BOOT, Rubber
    NON HANDLE
    BOOT, Rubber
    NON HANDLE
  • 20
    24-821784 SPRING
    NON HANDLE
    SPRING
    NON HANDLE
  • 21
    12-19619 WASHER
    WASHER
  • 22
    8M0041938 TILT TUBE
    TILT TUBE
  • 23
    11-826164 NUT, (.875-14)
    NUT, (.875-14)
  • 24
    37-8237011 DECAL, Co-Pilot
    DECAL, Co-Pilot
  • 25
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 26
    23-823507 BUSHING
    BUSHING
  • 27
    17-822480 PIN, Pivot (UPPER)
    PIN, Pivot (UPPER)
  • 28
    8217751 STRAP (NON POWER TRIM)
    STRAP (NON POWER TRIM)
  • 29
    821800 LINK (UPPER)
    LINK (UPPER)
  • 30
    8217981 LEVER
    LEVER
  • 31
    11-F1669 NUT, (#6-32)
    NUT, (#6-32)
  • 32
    826578 PIN
    PIN
  • 33
    24-F366300 SPRING
    SPRING
  • 34
    821805A1 LINK
    1/8 IN. DIA. LINK ROD
    LINK
    1/8 IN. DIA. LINK ROD
  • 35
    12-71055 WASHER
    1/8 IN. DIA. LINK ROD
    WASHER
    1/8 IN. DIA. LINK ROD
  • 36
    821805A1 ARM ASSEMBLY, Reverse Lock
    1/8 IN. DIA. LINK ROD
    ARM ASSEMBLY, Reverse Lock
    1/8 IN. DIA. LINK ROD
  • 37
    821805A1 LOCK, Reverse
    1/8 IN. DIA. LINK ROD
    LOCK, Reverse
    1/8 IN. DIA. LINK ROD
  • 38
    12-27882 WASHER
    1/8 IN. DIA. LINK ROD
    WASHER
    1/8 IN. DIA. LINK ROD
  • 39
    11-F1669 NUT, (#6-32)
    1/8 IN. DIA. LINK ROD
    NUT, (#6-32)
    1/8 IN. DIA. LINK ROD
  • 34
    8M0026107 LINK
    3/16 IN. DIA. LINK ROD
    LINK
    3/16 IN. DIA. LINK ROD
  • 35
    12-71055 WASHER
    3/16 IN. DIA. LINK ROD
    WASHER
    3/16 IN. DIA. LINK ROD
  • 36
    825181003 ARM
    3/16 IN. DIA. LINK ROD
    ARM
    3/16 IN. DIA. LINK ROD
  • 37
    8289861 LOCK, Reverse
    3/16 IN. DIA. LINK ROD
    LOCK, Reverse
    3/16 IN. DIA. LINK ROD
  • 38
    12-27882 WASHER (USE WHERE APPLICABLE)
    3/16 IN. DIA. LINK ROD
    WASHER (USE WHERE APPLICABLE)
    3/16 IN. DIA. LINK ROD
  • 40
    11-826709106 NUT, (#10-32)
    3/16 IN. DIA. LINK ROD
    NUT, (#10-32)
    3/16 IN. DIA. LINK ROD
