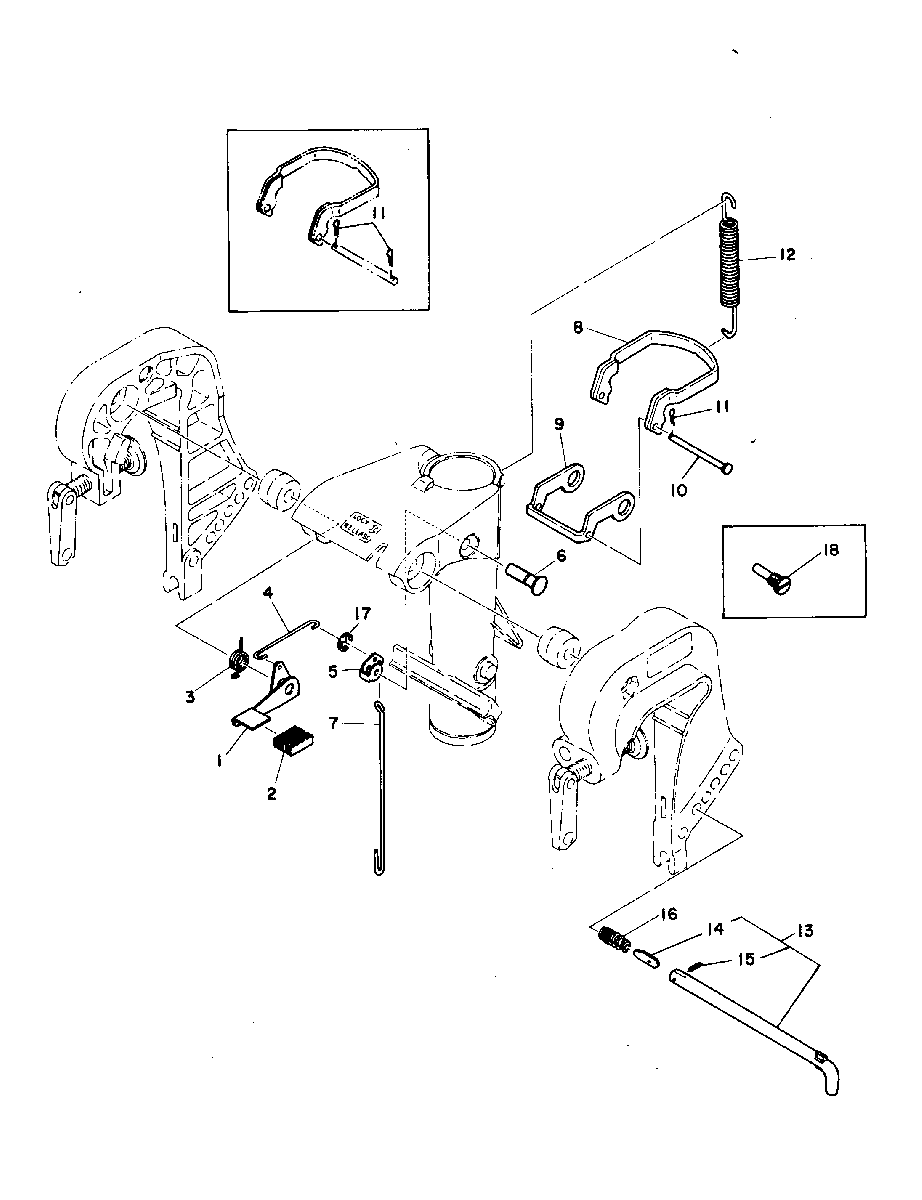

REVERSE LOCK для Mariner - 28 664-25800 AND BELOW

  • №
    Артикул
    Название
  • 1
    80646M LEVER, LOCK/RELEASE
    LEVER, LOCK/RELEASE
  • 2
    80647M COVER, LEVER
    COVER, LEVER
  • 3
    24-82109M SPRING, TENSION
    SPRING, TENSION
  • 4
    80644M LINK, REVERSE LOCK LEVER
    LINK, REVERSE LOCK LEVER
  • 5
    80648M CAM, TILT
    CAM, TILT
  • 6
    17-81895M PIN
    SERIAL 00000000-00001726
    PIN
    SERIAL 00000000-00001726
  • 7
    80645M ROD, REVERSE LOCK LEVER
    ROD, REVERSE LOCK LEVER
  • 8
    84837M HOOK, REVERSE LOCK-REAR
    HOOK, REVERSE LOCK-REAR
  • 9
    80643M HOOK, REVERSE LOCK-FRONT
    HOOK, REVERSE LOCK-FRONT
  • 10
    17-81882M PIN, WITH HOLE
    PIN, WITH HOLE
  • 11
    18-82125M PIN, REVERSE LOCK SHAFT
    SERIAL 00000000-00001725
    PIN, REVERSE LOCK SHAFT
    SERIAL 00000000-00001725
  • 11
    18-82125M PIN, REVERSE LOCK SHAFT
    SERIAL 00001726-09999999
    PIN, REVERSE LOCK SHAFT
    SERIAL 00001726-09999999
  • 12
    24-19110M SPRING, REVERSE LOCK
    SPRING, REVERSE LOCK
  • 13
    17-94569M TILT LOCK PIN ASS'Y
    SERIAL 00000000-00003675
    TILT LOCK PIN ASS'Y
    SERIAL 00000000-00003675
  • 13
    17-94569M TILT LOCK PIN ASS'Y
    SERIAL 00003676-09999999
    TILT LOCK PIN ASS'Y
    SERIAL 00003676-09999999
  • 14
    81149M STOPPER, PLATE
    SERIAL 00000000-00025695
    STOPPER, PLATE
    SERIAL 00000000-00025695
  • 14
    82857M STOPPER, PLATE
    SERIAL 00003676-09999999
    STOPPER, PLATE
    SERIAL 00003676-09999999
  • 15
    17-82144M PIN
    PIN
  • 16
    24-82100M SPRING, TILT LOCK PIN
    SPRING, TILT LOCK PIN
  • 17
    53-82330M CIRCLIP
    SERIAL 00001726-09999999
    CIRCLIP
    SERIAL 00001726-09999999
  • 18
    10-82697M SCREW, CAM PIVOT
    SERIAL 00000000-00001725
    SCREW, CAM PIVOT
    SERIAL 00000000-00001725
