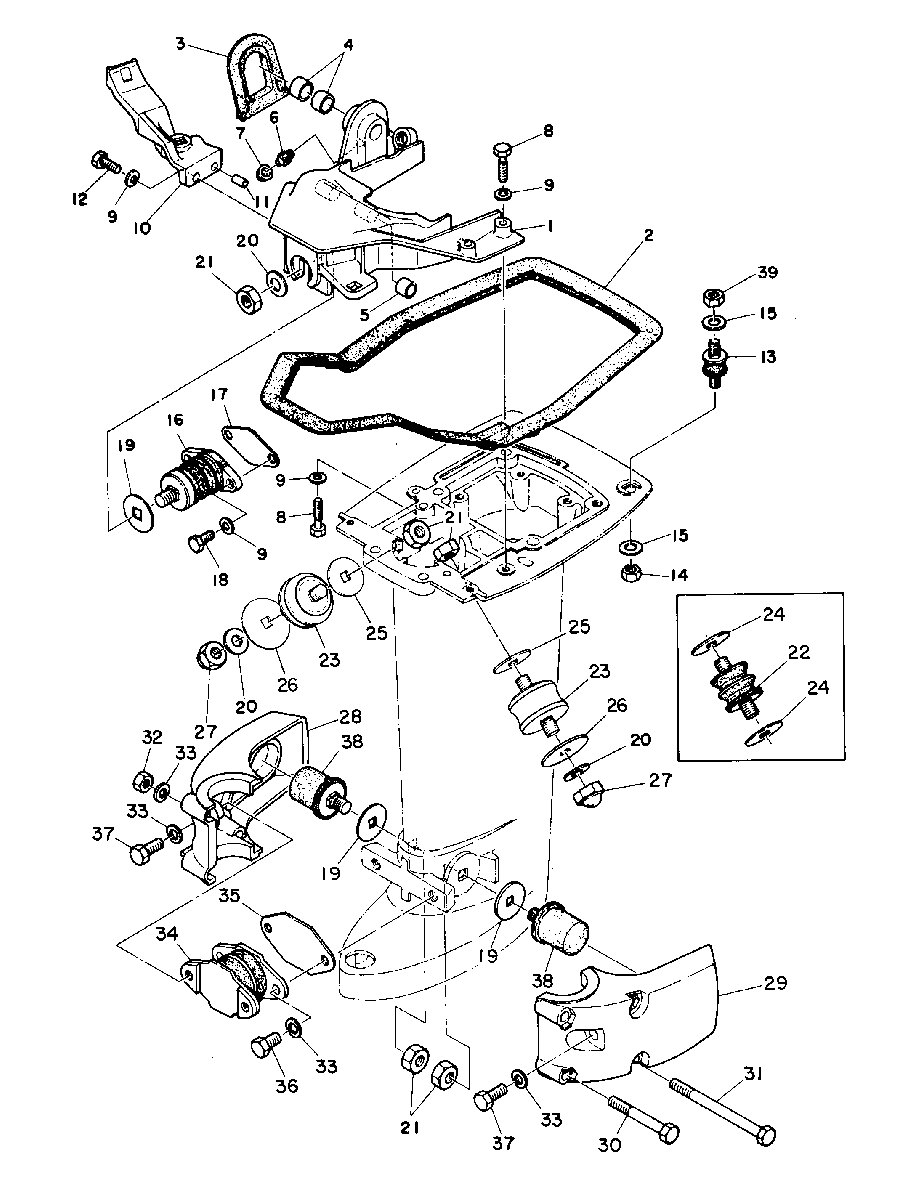

MOUNTING SYSTEM для Mariner - 28 664-25800 AND BELOW

  • №
    Артикул
    Название
  • 1
    80654M BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 2
    26-84838M GASKET, BOTTOM BOWL
    GASKET, BOTTOM BOWL
  • 3
    25-80637M SEAL, SHIFT BRACKET
    SEAL, SHIFT BRACKET
  • 4
    23-81930M BUSHING, SHIFT ROD LEVER
    BUSHING, SHIFT ROD LEVER
  • 5
    23-81929M BUSHING, MOUNT
    SERIAL 00000000-00004605
    BUSHING, MOUNT
    SERIAL 00000000-00004605
  • 5
    23-83309M BUSHING, MOUNT
    SERIAL 00004606-09999999
    BUSHING, MOUNT
    SERIAL 00004606-09999999
  • 6
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 7
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 8
    10-82405M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 9
    13-82212M LOCK WASHER
    LOCK WASHER
  • 10
    80657M BRACKET, CABLE ANCHOR
    BRACKET, CABLE ANCHOR
  • 11
    17-82364M PIN, DOWEL-ANCHOR BRACKET
    PIN, DOWEL-ANCHOR BRACKET
  • 12
    10-82423M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 13
    80656M MOUNT, RUBBER-UPPER
    MOUNT, RUBBER-UPPER
  • 14
    11-82383M NUT, MOUNT ATTACHING
    NUT, MOUNT ATTACHING
  • 15
    12-82217M WASHER, MOUNT NUT
    WASHER, MOUNT NUT
  • 16
    81608M MOUNT, RUBBER-UPPER FRONT
    MOUNT, RUBBER-UPPER FRONT
  • 17
    27-80663M GASKET, MOUNT
    GASKET, MOUNT
  • 18
    10-84368M BOLT, MOUNT ATTACHING
    BOLT, MOUNT ATTACHING
  • 19
    27-80662M WASHER, MOUNT
    WASHER, MOUNT
  • 20
    12-82219M WASHER
    WASHER
  • 21
    11-82395M NUT
    NUT
  • 22
    80660M MOUNT, RUBBER-LOWER SIDE
    SERIAL 00000000-00001725
    MOUNT, RUBBER-LOWER SIDE
    SERIAL 00000000-00001725
  • 23
    8M0121332 MOUNT, RUBBER-LOWER SIDE
    SERIAL 00001726-09999999
    MOUNT, RUBBER-LOWER SIDE
    SERIAL 00001726-09999999
  • 24
    27-80662M WASHER, MOUNT
    SERIAL 00000000-00001725
    WASHER, MOUNT
    SERIAL 00000000-00001725
  • 25
    27-80662M WASHER, MOUNT
    SERIAL 00001726-09999999
    WASHER, MOUNT
    SERIAL 00001726-09999999
  • 26
    27-81612M WASHER, MOUNT
    SERIAL 00001726-09999999
    WASHER, MOUNT
    SERIAL 00001726-09999999
  • 27
    11-82396M NUT, MOUNT ATTACHING
    NUT, MOUNT ATTACHING
  • 28
    81609M HOUSING, LOWER MOUNT-STARBOARD
    HOUSING, LOWER MOUNT-STARBOARD
  • 29
    81610M HOUSING, LOWER MOUNT PORT
    HOUSING, LOWER MOUNT PORT
  • 30
    10-43103M BOLT, HOUSING ATTACHING
    BOLT, HOUSING ATTACHING
  • 31
    10-84845M BOLT, HOUSING ATTACHING
    BOLT, HOUSING ATTACHING
  • 32
    11-82382M NUT, HOUSING ATTACHING BOLT
    NUT, HOUSING ATTACHING BOLT
  • 33
    13-82215M LOCK WASHER, HOUSING BOLT
    LOCK WASHER, HOUSING BOLT
  • 34
    80661M MOUNT, RUBBER-LOWER FRONT
    MOUNT, RUBBER-LOWER FRONT
  • 35
    27-80664M GASKET, RUBBER MOUNT
    GASKET, RUBBER MOUNT
  • 36
    10-95546M BOLT
    BOLT
  • 37
    10-95206M BOLT, HOUSING ATTACHING
    BOLT, HOUSING ATTACHING
  • 38
    81611M MOUNT, RUBBER-HOUSING
    MOUNT, RUBBER-HOUSING
  • 39
    11-82383M NUT -
    SERIAL 00000000-00004605
    NUT -
    SERIAL 00000000-00004605
  • 39
    11-82383M NUT
    SERIAL 00004606-09999999
    NUT
    SERIAL 00004606-09999999
