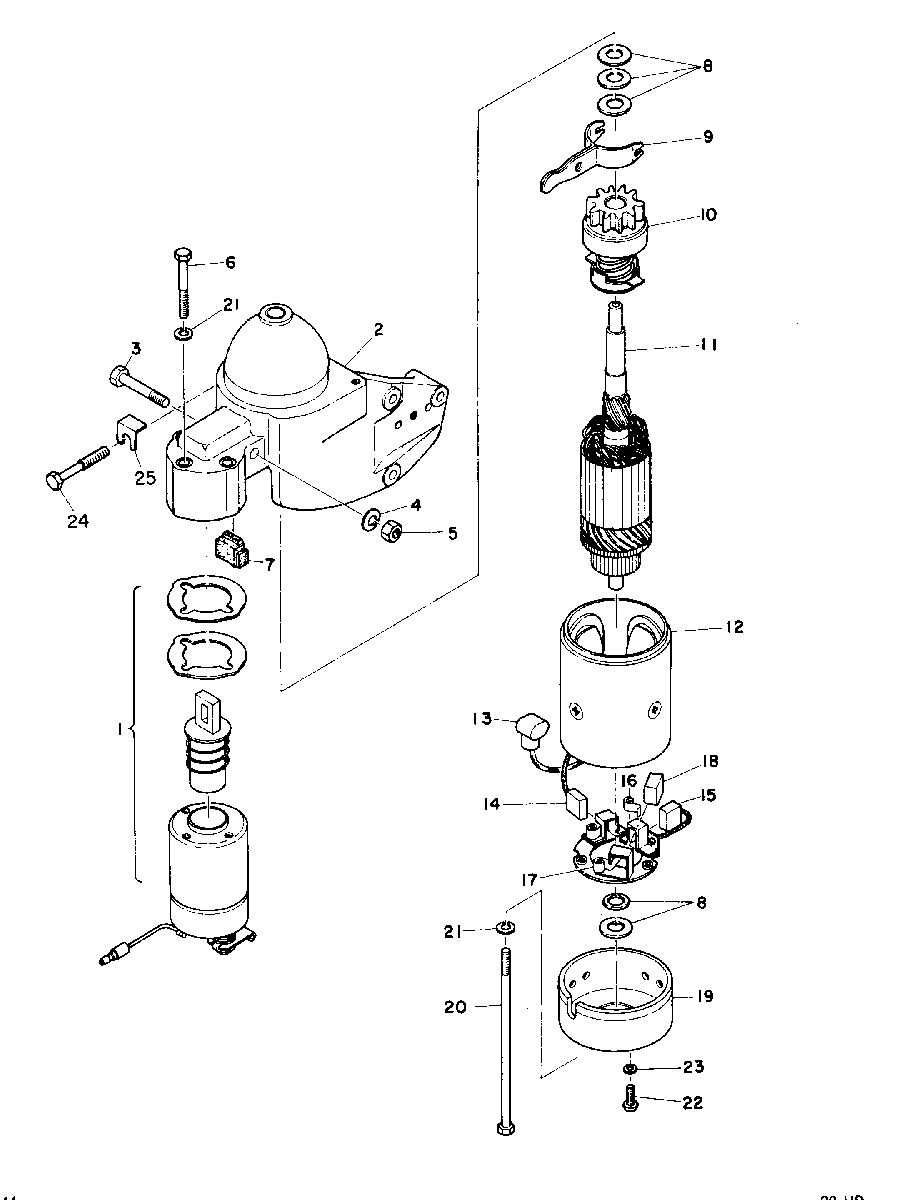

ELECTRIC STARTER MOTOR для Mariner - 28 664-25800 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    50-80691M STARTER MOTOR ASS'Y
    STARTER MOTOR ASS'Y
  • 1
    80709M SOLENOID ASS'Y STARTER MOTOR
    SOLENOID ASS'Y STARTER MOTOR
  • 2
    80703M COVER, DRIVE END
    COVER, DRIVE END
  • 3
    10-80701M BOLT, SOLENOID LEVER
    BOLT, SOLENOID LEVER
  • 4
    13-82212M LOCK WASHER, LEVER BOLT
    LOCK WASHER, LEVER BOLT
  • 5
    11-82389M NUT, LEVER BOLT
    NUT, LEVER BOLT
  • 6
    10-80706M BOLT, SOLENOID ATTACHING
    BOLT, SOLENOID ATTACHING
  • 7
    25-80702M DAMPENER, SOLENOID
    DAMPENER, SOLENOID
  • 8
    12-80692M WASHER KIT
    WASHER KIT
  • 9
    80705M LEVER, SOLENOID
    LEVER, SOLENOID
  • 10
    43-80704M PINION, STARTER
    PINION, STARTER
  • 11
    80707M ARMATURE ASS'Y
    ARMATURE ASS'Y
  • 12
    80693M FRAME AND FIELD ASS'Y
    FRAME AND FIELD ASS'Y
  • 13
    80710M CAP, FIELD LEAD
    CAP, FIELD LEAD
  • 14
    80694M BRUSH, FIELD LEAD
    BRUSH, FIELD LEAD
  • 15
    80695M BRUSH, BRUSH PLATE LEAD
    BRUSH, BRUSH PLATE LEAD
  • 16
    24-80696M SPRING, BRUSH
    SPRING, BRUSH
  • 17
    24-80697M SPRING, BRUSH PLATE
    SPRING, BRUSH PLATE
  • 18
    12-80700M PIECE, FRICTION
    PIECE, FRICTION
  • 19
    80698M COVER, COMMUTATOR LEAD
    COVER, COMMUTATOR LEAD
  • 20
    10-80699M THRUBOLT, COVER ATTACHING
    THRUBOLT, COVER ATTACHING
  • 21
    13-82186M LOCK WASHER
    LOCK WASHER
  • 22
    10-82515M SCREW, DRIVE PLATE ATTACHING
    SCREW, DRIVE PLATE ATTACHING
  • 23
    13-82206M LOCK WASHER, DRIVER PLATE SCREW
    LOCK WASHER, DRIVER PLATE SCREW
  • 24
    10-827043M BOLT, STARTER ATTACHING
    BOLT, STARTER ATTACHING
  • 25
    15-80712M SHIM, STARTER ATTACHING BOLT
    SHIM, STARTER ATTACHING BOLT
