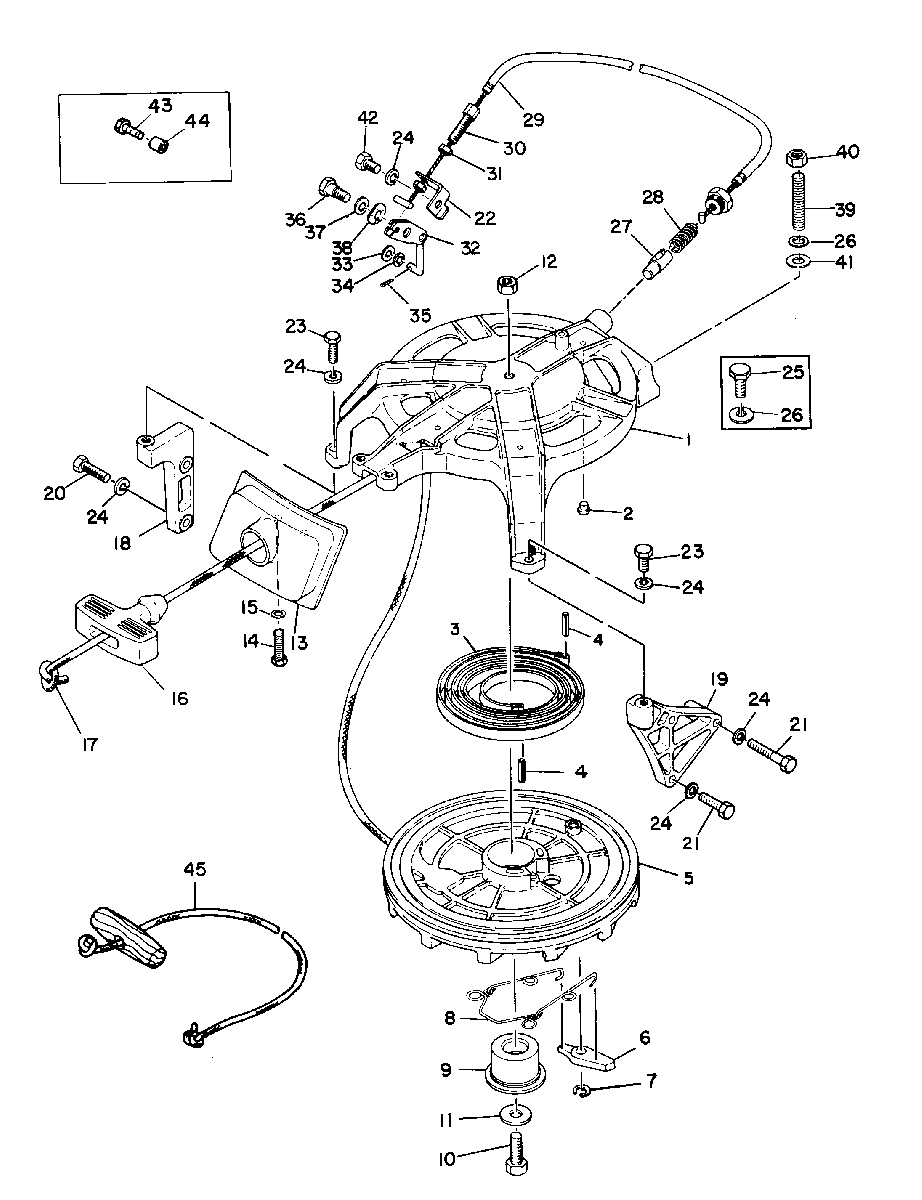

RECOIL STARTER для Mariner - 28 664-25800 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    50-83211M STARTER ASS'Y
    SERIAL 00000000-00004605
    STARTER ASS'Y
    SERIAL 00000000-00004605
  • 0-1
    50-83211M STARTER ASS'Y
    SERIAL 00004606-09999999
    STARTER ASS'Y
    SERIAL 00004606-09999999
  • 1
    2169-6960M HOUSING, STARTER
    SERIAL 00000000-00004605
    HOUSING, STARTER
    SERIAL 00000000-00004605
  • 1
    2169-6960M HOUSING, STARTER
    SERIAL 00004606-09999999
    HOUSING, STARTER
    SERIAL 00004606-09999999
  • 2
    19-80604M PLUG, STARTER HOUSING
    PLUG, STARTER HOUSING
  • 3
    24-82115M SPRING, STARTER
    SPRING, STARTER
  • 4
    17-82157M PIN, STARTER SPRING
    PIN, STARTER SPRING
  • 5
    50-81105M STARTER SHEAVE
    STARTER SHEAVE
  • 6
    80599M PAWL, STARTER
    PAWL, STARTER
  • 7
    53-82331M CIRCLIP, STARTER PAWL
    CIRCLIP, STARTER PAWL
  • 8
    24-81103M SPRING, PAWL
    SPRING, PAWL
  • 9
    80598M SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 10
    10-84342M BOLT, SHEAVE SHAFT
    BOLT, SHEAVE SHAFT
  • 11
    12-81801M WASHER, SHEAVE SHAFT BOLT
    WASHER, SHEAVE SHAFT BOLT
  • 12
    11-82382M NUT, SHEAVE SHAFT BOLT
    NUT, SHEAVE SHAFT BOLT
  • 13
    80600M GUIDE, STARTER ROPE
    GUIDE, STARTER ROPE
  • 14
    10-826957M BOLT, GUIDE ATTACHING
    BOLT, GUIDE ATTACHING
  • 15
    13-82212M LOCK WASHER
    LOCK WASHER
  • 16
    814491A1 HANDLE, STARTER
    HANDLE, STARTER
  • 17
    50-12066Q10 STARTER ROPE
    STARTER ROPE
  • 18
    80602M BRACKET, STARTER HSG. (STARBOARD)
    BRACKET, STARTER HSG. (STARBOARD)
  • 19
    80603M BRACKET, STARTER HSG. (PORT MANUAL)
    BRACKET, STARTER HSG. (PORT MANUAL)
  • 20
    10-83285M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 21
    10-827043M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 22
    81109M BRACKET, STARTER LOCKOUT
    BRACKET, STARTER LOCKOUT
  • 23
    10-84058M BOLT, HOUSING ATTACHING-FRONT
    BOLT, HOUSING ATTACHING-FRONT
  • 24
    13-82212M LOCK WASHER, FRONT HOUSING BOLT
    LOCK WASHER, FRONT HOUSING BOLT
  • 25
    10-82439M BOLT, HOUSING ATTACHING-REAR
    SERIAL 00000000-00001725
    BOLT, HOUSING ATTACHING-REAR
    SERIAL 00000000-00001725
  • 26
    13-82215M LOCK WASHER, REAR HOUSING BOLT
    LOCK WASHER, REAR HOUSING BOLT
  • 27
    81106M PLUNGER, STARTER LOCKOUT
    PLUNGER, STARTER LOCKOUT
  • 28
    24-82079M SPRING, STARTER LOCKOUT
    SPRING, STARTER LOCKOUT
  • 29
    81108M CABLE, STARTER LOCKOUT
    CABLE, STARTER LOCKOUT
  • 30
    10-815139M BOLT, CABLE ADJUSTING
    BOLT, CABLE ADJUSTING
  • 31
    11-82389M NUT, JAM-ADJUSTING BOLT
    NUT, JAM-ADJUSTING BOLT
  • 32
    81107M LINK, STARTER LOCKOUT
    LINK, STARTER LOCKOUT
  • 33
    12-82211M WASHER, LINK
    WASHER, LINK
  • 34
    13-81865M WASHER, WAVE-LINK
    WASHER, WAVE-LINK
  • 35
    18-16189 PIN, LINK
    SERIAL 00000000-00004605
    PIN, LINK
    SERIAL 00000000-00004605
  • 35
    18-82125M PIN, LINK
    SERIAL 00004606-09999999
    PIN, LINK
    SERIAL 00004606-09999999
  • 36
    10-81712M BOLT, LINK ATTACHING
    SERIAL 00000000-00004605
    BOLT, LINK ATTACHING
    SERIAL 00000000-00004605
  • 37
    12-82214M WASHER, LINK BOLT
    WASHER, LINK BOLT
  • 38
    13-81867M WASHER, WAVE-LINK BOLT
    WASHER, WAVE-LINK BOLT
  • 39
    16-81741M BOLT, STUD
    SERIAL 26-04605-09999999
    BOLT, STUD
    SERIAL 26-04605-09999999
  • 39
    16-83317M BOLT, STUD
    SERIAL 00004606-09999999
    BOLT, STUD
    SERIAL 00004606-09999999
  • 40
    11-82382M NUT
    SERIAL 00001726-09999999
    NUT
    SERIAL 00001726-09999999
  • 41
    12-82216M WASHER
    SERIAL 00001726-09999999
    WASHER
    SERIAL 00001726-09999999
  • 42
    10-91772M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 43
    10-84058M BOLT
    SERIAL 00004606-09999999
    BOLT
    SERIAL 00004606-09999999
  • 44
    23-82929M COLLAR
    SERIAL 00004606-09999999
    COLLAR
    SERIAL 00004606-09999999
  • 45
    47341A11 EMERGENCY STARTER ROPE
    EMERGENCY STARTER ROPE
