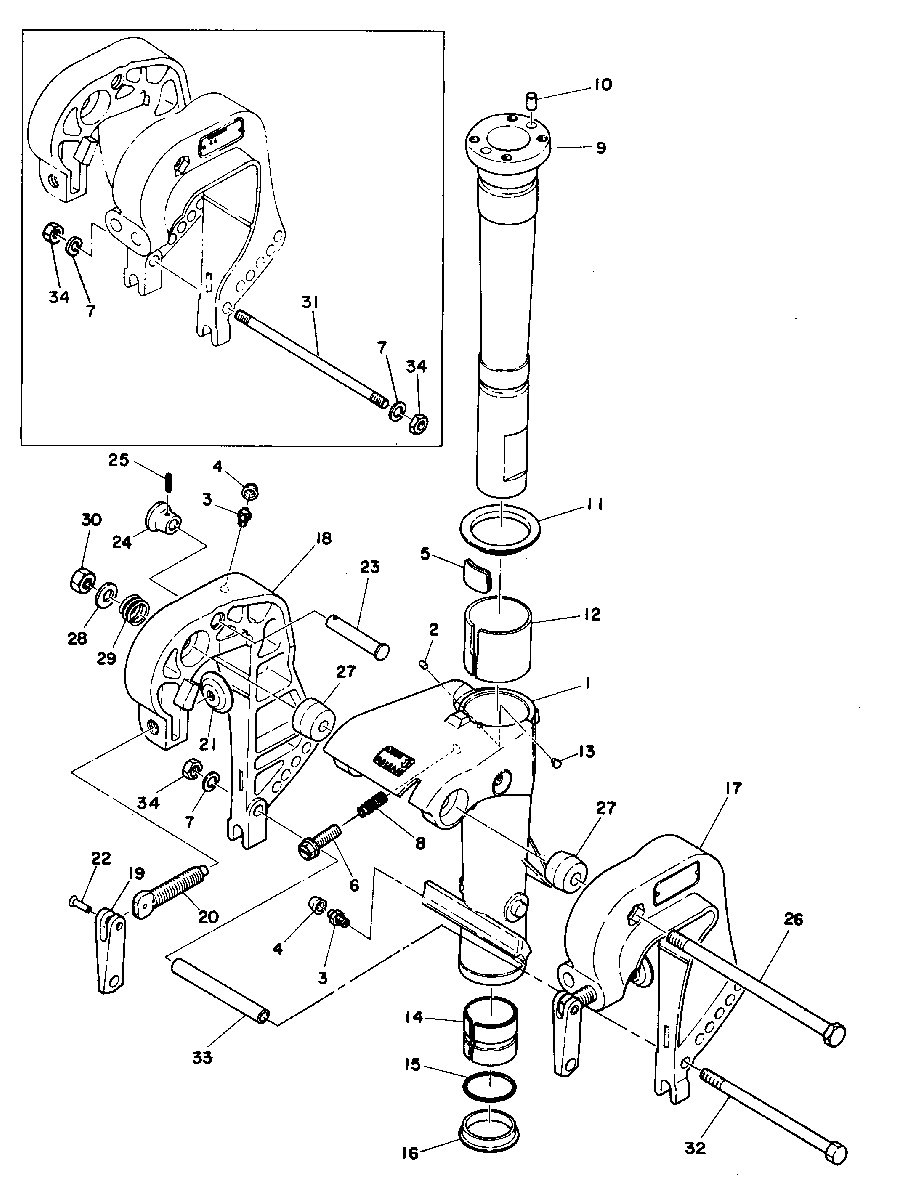

CLAMP AND SWIVEL BRACKET для Mariner - 28 664-25800 AND BELOW
-
№АртикулНазвание
-
11485-6866M SWIVEL BRACKET
SERIAL 00000000-00001725SWIVEL BRACKET
SERIAL 00000000-00001725 -
11485-6796M SWIVEL BRACKET
SERIAL 00000000-00001725SWIVEL BRACKET
SERIAL 00000000-00001725 -
222-81917M PLUGPLUG
-
322-82369M FITTING, PIVOT SHAFT BUSHING, GREASEFITTING, PIVOT SHAFT BUSHING, GREASE
-
481439M CAP, GREASE FITTINGCAP, GREASE FITTING
-
580633M PLATE, FRICTIONPLATE, FRICTION
-
610-81754M SCREW, FRICTION PLATE ADJUSTINGSCREW, FRICTION PLATE ADJUSTING
-
713-82215M LOCK WASHER, CLAMP BRACKET STUD
SERIAL 00000000-00004605LOCK WASHER, CLAMP BRACKET STUD
SERIAL 00000000-00004605 -
713-82215M LOCK WASHER
SERIAL 00004606-09999999LOCK WASHER
SERIAL 00004606-09999999 -
824-82088M SPRING, FRICTION PLATE SCREWSPRING, FRICTION PLATE SCREW
-
984833M SHAFT, STEERING PIVOTSHAFT, STEERING PIVOT
-
1017-82368M PIN, DOWEL-PIVOT SHAFTPIN, DOWEL-PIVOT SHAFT
-
1112-81873M COLLAR, THRUST & PIVOT SHAFTCOLLAR, THRUST & PIVOT SHAFT
-
1223-81963M BUSHING, PIVOT SHAFT-UPPER
SERIAL 00000000-00001725BUSHING, PIVOT SHAFT-UPPER
SERIAL 00000000-00001725 -
1223-81964M BUSHING, PIVOT SHAFT-UPPER
SERIAL 00001726-09999999BUSHING, PIVOT SHAFT-UPPER
SERIAL 00001726-09999999 -
1317-81887M PIN, PIVOT SHAFT BUSHINGPIN, PIVOT SHAFT BUSHING
-
1423-81959M BUSHING, PIVOT SHAFT-LOWERBUSHING, PIVOT SHAFT-LOWER
-
1525-82274M O-RING, PIVOT SHAFT BUSHINGO-RING, PIVOT SHAFT BUSHING
-
1623-81961M COLLAR, THRUST-PIVOT SHAFTCOLLAR, THRUST-PIVOT SHAFT
-
171484-6794M CLAMP BRACKET, PORTCLAMP BRACKET, PORT
-
181484-6795M CLAMP BRACKET, STARBOARDCLAMP BRACKET, STARBOARD
-
19809959M HANDLE, TRANSOM CLAMP SCREWHANDLE, TRANSOM CLAMP SCREW
-
2010-81756M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
2112-80638M PAD, TRANSOM CLAMP SCREWPAD, TRANSOM CLAMP SCREW
-
2217-81888M PIN, TRANSOM CLAMP SCREWPIN, TRANSOM CLAMP SCREW
-
2317-81150M SHAFT, TILT STOPSHAFT, TILT STOP
-
2495426M KNOB, TILT STOP SHAFTKNOB, TILT STOP SHAFT
-
2517-82148M PIN, TILT STOP KNOBPIN, TILT STOP KNOB
-
2610-81146M BOLT, CLAMP BRACKETBOLT, CLAMP BRACKET
-
2780639M MOUNT, RUBBER CLAMP BRACKETMOUNT, RUBBER CLAMP BRACKET
-
2812-81806M WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
2924-82101M SPRING, CLAMP BRACKET BOLTSPRING, CLAMP BRACKET BOLT
-
3011-82395M NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
3116-81738M STUD, CLAMP BRACKET
SERIAL 00000000-00004605STUD, CLAMP BRACKET
SERIAL 00000000-00004605 -
3210-82924M BOLT, CALMP BRACKET
SERIAL 00004606-09999999BOLT, CALMP BRACKET
SERIAL 00004606-09999999 -
3323-19108M SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
3411-82382M NUT, CLAMP BRACKET STUD
SERIAL 00000000-00004605NUT, CLAMP BRACKET STUD
SERIAL 00000000-00004605 -
3411-82382M NUT
SERIAL 00004606-09999999NUT
SERIAL 00004606-09999999
