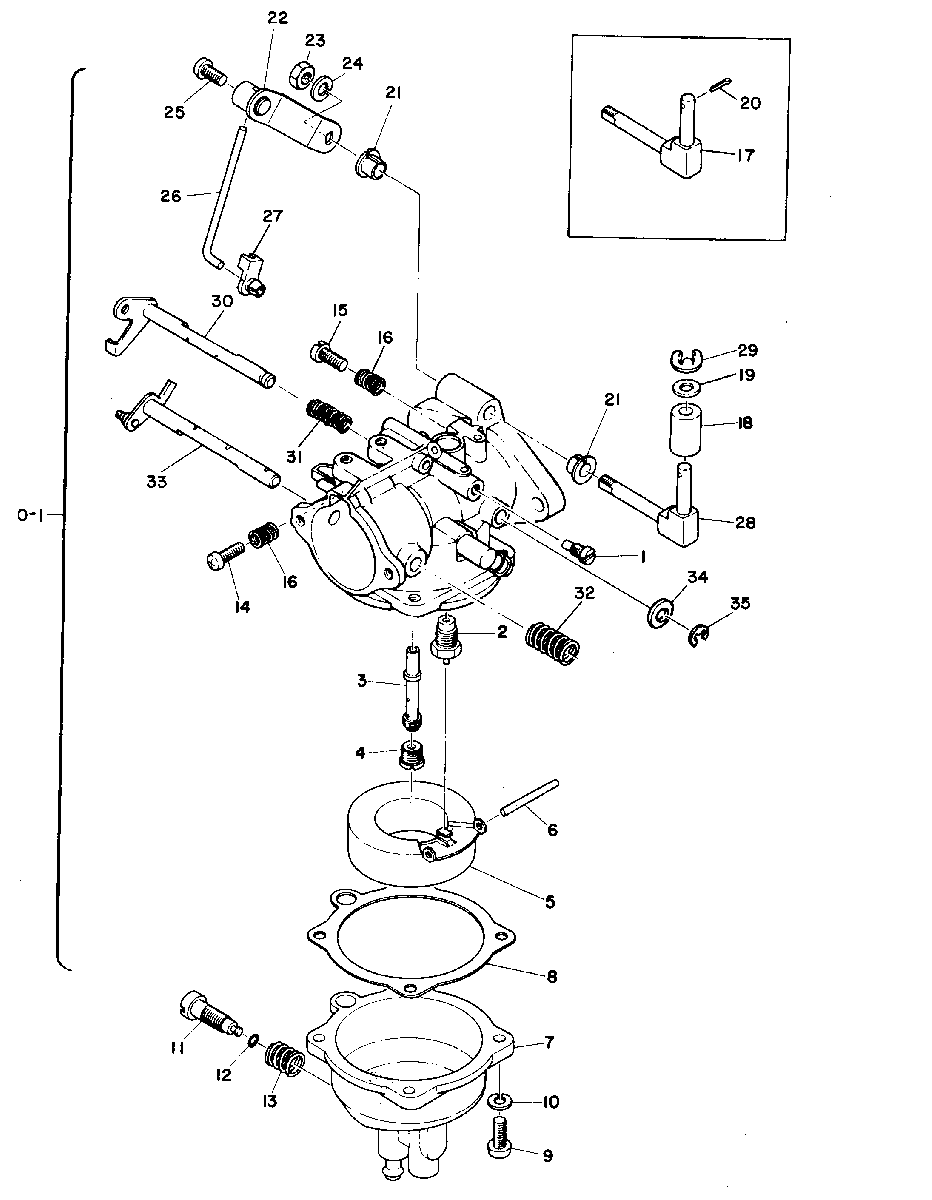

CARBURETOR для Mariner - 28 664-25800 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    1383-6850M CARBURETOR ASS'Y
    SERIAL 00000000-00005305
    CARBURETOR ASS'Y
    SERIAL 00000000-00005305
  • 0-1
    1383-6959M CARBURETOR ASS'Y
    SERIAL 00005306-09999999
    CARBURETOR ASS'Y
    SERIAL 00005306-09999999
  • 1
    80578M JET, LOW SPEED (#60)
    JET, LOW SPEED (#60)
  • 2
    80593M INLET VALVE & SEAT
    INLET VALVE & SEAT
  • 3
    80576M NOZZLE, MAIN
    NOZZLE, MAIN
  • 4
    80582M JET, MAIN (#140)
    JET, MAIN (#140)
  • 5
    80591M FLOAT
    FLOAT
  • 6
    17-80592M PIN, FLOAT
    PIN, FLOAT
  • 7
    14234M FLOAT BOWL
    SERIAL 00000000-00005305
    FLOAT BOWL
    SERIAL 00000000-00005305
  • 7
    83200M FLOAT BOWL .
    SERIAL 00005306-09999999
    FLOAT BOWL .
    SERIAL 00005306-09999999
  • 8
    27-80590M GASKET, FLOAT BOWL
    GASKET, FLOAT BOWL
  • 9
    10-82515M SCREW, BOWL ATTACHING
    SCREW, BOWL ATTACHING
  • 10
    13-82206M LOCK WASHER, BOWL ATTACHING SCREW
    LOCK WASHER, BOWL ATTACHING SCREW
  • 11
    10-80349M VALVE, DRAIN .
    SERIAL 00000000-00005305
    VALVE, DRAIN .
    SERIAL 00000000-00005305
  • 12
    25-80350M 0-RING, DRAIN VALVE .
    SERIAL 00000000-00005305
    0-RING, DRAIN VALVE .
    SERIAL 00000000-00005305
  • 13
    24-80331M SPRING, DRAIN VALVE .
    SERIAL 00000000-00005305
    SPRING, DRAIN VALVE .
    SERIAL 00000000-00005305
  • 14
    10-83509M SCREW, IDLE SPEED
    SCREW, IDLE SPEED
  • 15
    10-80573M SCREW, IDLE MIXTURE
    SCREW, IDLE MIXTURE
  • 16
    24-80575M SPRING, IDLE SCREW
    SPRING, IDLE SCREW
  • 17
    80623M SHAFT, THROTTLE .
    SERIAL 00000000-00004605
    SHAFT, THROTTLE .
    SERIAL 00000000-00004605
  • 18
    23-80220M BUSHING, THROTTLE SHAFT
    BUSHING, THROTTLE SHAFT
  • 19
    12-82209M WASHER, THROTTLE SHAFT
    WASHER, THROTTLE SHAFT
  • 20
    18-16189 PIN, THROTTLE SHAFT .
    SERIAL 00000000-00004605
    PIN, THROTTLE SHAFT .
    SERIAL 00000000-00004605
  • 21
    23-81941M BUSHING, THROTTLE SHAFT
    BUSHING, THROTTLE SHAFT
  • 22
    80622M LEVER, THROTTLE
    LEVER, THROTTLE
  • 23
    11-83763M NUT, THROTTLE LEVER TO SHAFT
    NUT, THROTTLE LEVER TO SHAFT
  • 24
    13-82186M LOCK WASHER, LEVER NUT
    LOCK WASHER, LEVER NUT
  • 25
    10-83112M SET SCREW, THROTTLE LEVER
    SET SCREW, THROTTLE LEVER
  • 26
    81119M LINK ROD, THROTTLE LEVER .
    SERIAL 00000000-00004605
    LINK ROD, THROTTLE LEVER .
    SERIAL 00000000-00004605
  • 26
    83160M LINK ROD, THROTTLE LEVER
    SERIAL 0L_38146-0Z999999
    LINK ROD, THROTTLE LEVER
    SERIAL 0L_38146-0Z999999
  • 27
    16333 SWIVEL, THROTTLE
    SWIVEL, THROTTLE
  • 28
    811037M SHAFT, THROTTLE
    SERIAL 00004606-09999999
    SHAFT, THROTTLE
    SERIAL 00004606-09999999
  • 29
    53-82328M CIRCLIP
    SERIAL 00005606-09999999
    CIRCLIP
    SERIAL 00005606-09999999
  • 30
    83201M LEVER THROTTLE .
    SERIAL 00004606-09999999
    LEVER THROTTLE .
    SERIAL 00004606-09999999
  • 31
    24-80574M SPRING, THROTTLE VALVE
    SERIAL 00004606-09999999
    SPRING, THROTTLE VALVE
    SERIAL 00004606-09999999
  • 32
    24-83202M SPRING, CHOKE LEVER .
    SERIAL 00004606-09999999
    SPRING, CHOKE LEVER .
    SERIAL 00004606-09999999
  • 33
    83203M CHOKE LEVER COMP .
    SERIAL 00004606-09999999
    CHOKE LEVER COMP .
    SERIAL 00004606-09999999
  • 34
    12-84401M WASHER
    SERIAL 00004606-09999999
    WASHER
    SERIAL 00004606-09999999
  • 35
    53-83205M CIRCLIP .
    SERIAL 00004606-09999999
    CIRCLIP .
    SERIAL 00004606-09999999
