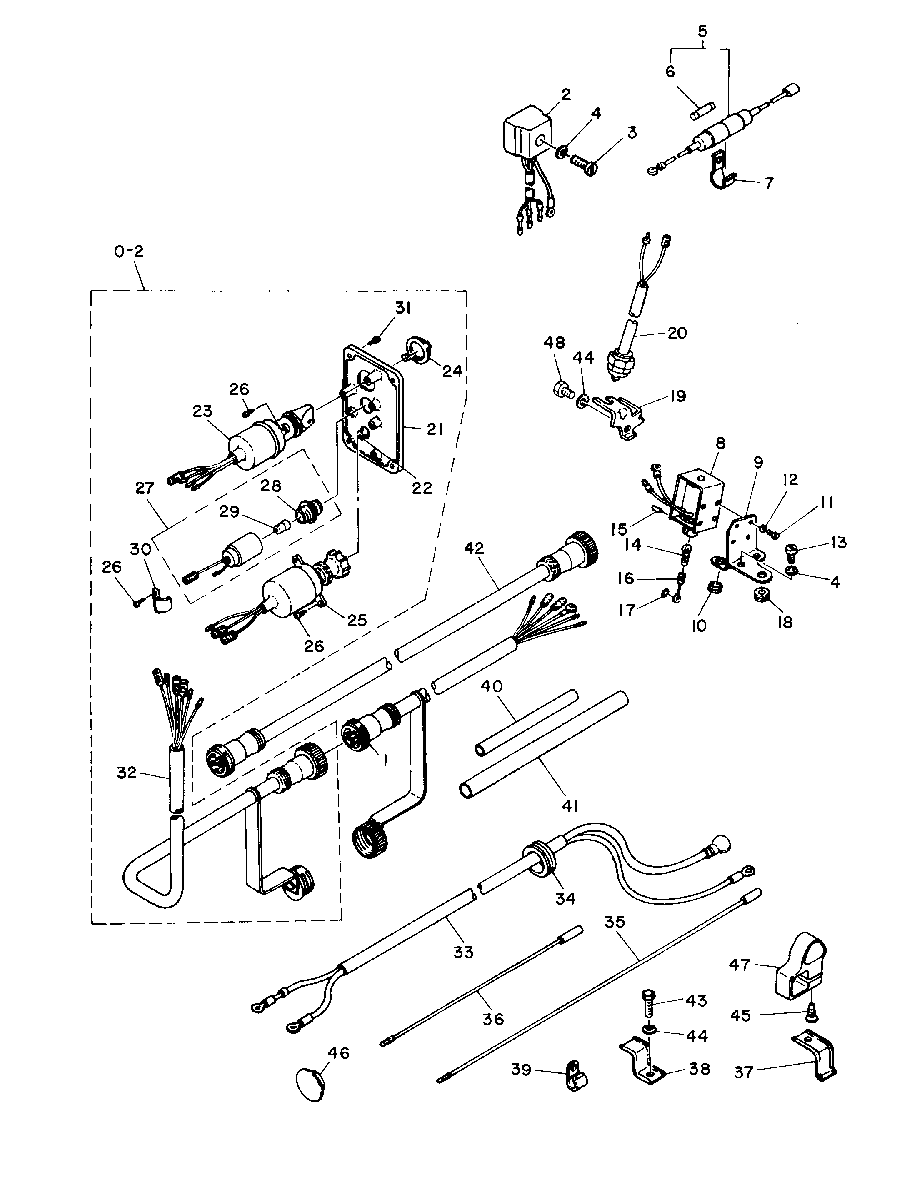

ELECTRIC START COMPONENTS для Mariner - 28 664-25800 AND BELOW

  • №
    Артикул
    Название
  • 1
    84-81664M WIRE HARNESS ASS'Y, ENGINE
    WIRE HARNESS ASS'Y, ENGINE
  • 2
    8M0091976 RECTIFIER
    RECTIFIER
  • 3
    10-83108M SCREW, RECTIFIER ATTACHING
    SCREW, RECTIFIER ATTACHING
  • 4
    13-82186M LOCK WASHER. RECTIFIER SCREW
    LOCK WASHER. RECTIFIER SCREW
  • 5
    88-81655M FUSE HOLDER ASS"Y
    FUSE HOLDER ASS"Y
  • 6
    88-81522M FUSE
    FUSE
  • 7
    54-82036M CLAMP, FUSE HOLDER
    CLAMP, FUSE HOLDER
  • 8
    89-81665M SOLENOID ASS'Y CHOKE
    SOLENOID ASS'Y CHOKE
  • 9
    81666M BRACKET, SOLENOID
    BRACKET, SOLENOID
  • 10
    25-80726M GROMMET, SOLENOID BRACKET
    GROMMET, SOLENOID BRACKET
  • 11
    10-813484M SCREW, SOLENOID ATTACHING
    SCREW, SOLENOID ATTACHING
  • 12
    13-82191M LOCK WASHER, SOLENOID SCREW
    LOCK WASHER, SOLENOID SCREW
  • 13
    10-82491M SCREW, SOLENOID BRACKET ATTACHING
    SCREW, SOLENOID BRACKET ATTACHING
  • 14
    81553M HOOK, SOLENOID PULL WIRE
    HOOK, SOLENOID PULL WIRE
  • 15
    17-82145M PIN, SOLENOID HOOK
    PIN, SOLENOID HOOK
  • 16
    24-81667M WIRE, SOLENOID PULL
    WIRE, SOLENOID PULL
  • 17
    25-82258M O-RING, PULL WIRE
    O-RING, PULL WIRE
  • 18
    25-82060M GROMMET
    GROMMET
  • 19
    81110M BRACKET, NEUTRAL START SWITCH
    BRACKET, NEUTRAL START SWITCH
  • 20
    87-81168M NEUTRAL START SWITCH ASS'Y
    NEUTRAL START SWITCH ASS'Y
  • 0-2
    83303M SWITCH PANEL ASS'Y
    SERIAL 00000000-00025000
    SWITCH PANEL ASS'Y
    SERIAL 00000000-00025000
  • 0-2
    83303M SWITCH PANEL ASS'Y
    SERIAL 00025801-09999999
    SWITCH PANEL ASS'Y
    SERIAL 00025801-09999999
  • 21
    81170M PANEL, SWITCH
    PANEL, SWITCH
  • 22
    37-83058M DECAL, SWITCH PANEL
    SERIAL 00000000-00025800
    DECAL, SWITCH PANEL
    SERIAL 00000000-00025800
  • 22
    37-83058M DECAL, SWITCH PANEL
    SERIAL 00025801-09999999
    DECAL, SWITCH PANEL
    SERIAL 00025801-09999999
  • 23
    87-80716M KEY SWITCH ASS'Y
    KEY SWITCH ASS'Y
  • 24
    80721M CAP, SWITCH KEY
    CAP, SWITCH KEY
  • 25
    87-80715M IGNITION SWITCH ASS'Y
    IGNITION SWITCH ASS'Y
  • 26
    10-84272M SCREW, HARNESS ATTACHING
    SCREW, HARNESS ATTACHING
  • 27
    80725M CHOKE LAMP ASS'Y
    CHOKE LAMP ASS'Y
  • 28
    80724M LENS, CHOKE LAMP
    LENS, CHOKE LAMP
  • 29
    88-80007M BULB, CHOKE LAMP )12V-3W)
    BULB, CHOKE LAMP )12V-3W)
  • 30
    54-80722M CLAMP, WIRE HARNESS
    CLAMP, WIRE HARNESS
  • 31
    10-80719M SCREW, PANEL ATTACHING
    SCREW, PANEL ATTACHING
  • 32
    84-80720M WIRE HARNESS ASS'Y SWITCH PANEL
    WIRE HARNESS ASS'Y SWITCH PANEL
  • 33
    84-81654M LEAD WIRE ASS'Y CHOKE SOLENOID
    LEAD WIRE ASS'Y CHOKE SOLENOID
  • 34
    25-81590M GROMMET, LEAD WIRE
    GROMMET, LEAD WIRE
  • 35
    84-81660M WIRE, LEAD
    WIRE, LEAD
  • 36
    84-81661M WIRE, LEAD
    WIRE, LEAD
  • 37
    82044M CLAMP
    CLAMP
  • 38
    54-82035M CLAMP
    CLAMP
  • 39
    54-96348M CLAMP
    CLAMP
  • 40
    32-82032M HOSE, WIRE HARNESS
    HOSE, WIRE HARNESS
  • 41
    32-82031M HOSE, WIRE HARNESS
    HOSE, WIRE HARNESS
  • 42
    84-81171M EXTENSION, WIRE HARNESS OPTIONAL
    EXTENSION, WIRE HARNESS OPTIONAL
  • 43
    10-826957M BOLT
    BOLT
  • 44
    13-82212M LOCK WASHER
    LOCK WASHER
  • 45
    10-81759M TAP SCREW, CLAMP
    TAP SCREW, CLAMP
  • 46
    82066M GROMMET, BOTTOM COWL
    GROMMET, BOTTOM COWL
  • 47
    82039M CLAMP
    CLAMP
  • 47
    82039M CLAMP
    CLAMP
  • 48
    10-91772M BOLT
    BOLT
