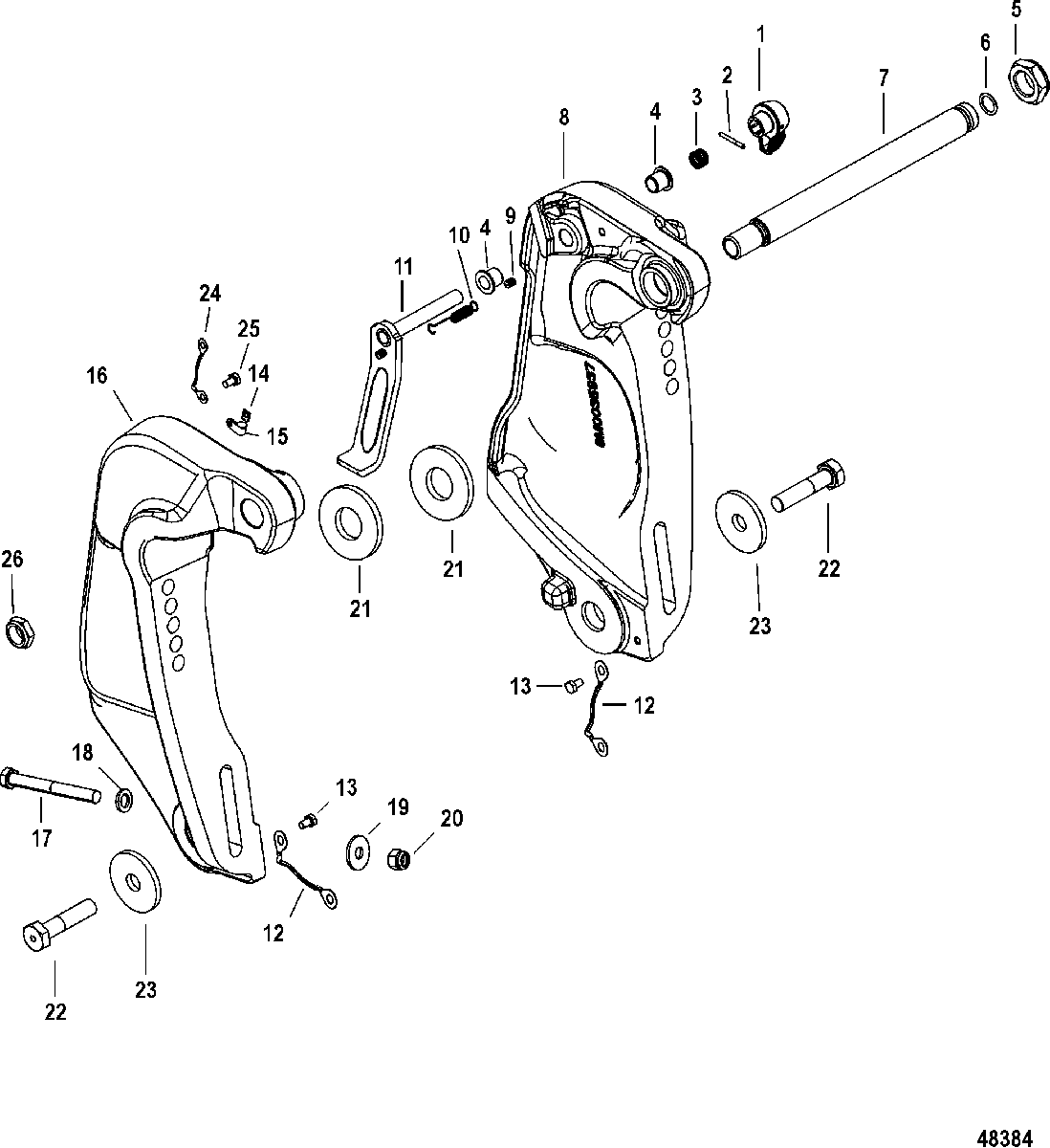

Transom Bracket для Mariner - 150 (4-Stroke) 1B905505 & Up

  • №
    Артикул
    Название
  • 1
    8M0007470 KNOB
    KNOB
  • 2
    17-8M0021914 PIN , (.125 x 30 mm)
    PIN , (.125 x 30 mm)
  • 3
    24-830900 SPRING, Compression
    SPRING, Compression
  • 4
    23-8M0054598 BEARING, Tilt Lock .05 inch ID FLG
    BEARING, Tilt Lock .05 inch ID FLG
  • 5
    11-826135 NUT, (1.00-14) Nylon Insert
    NUT, (1.00-14) Nylon Insert
  • 6
    25-45711 O-RING, (.612 x .103)
    O-RING, (.612 x .103)
  • 7
    826125A1 TILT TUBE
    TILT TUBE
  • 8
    1400-8M0057721 TRANSOM BRACKET, Port, Painted
    TRANSOM BRACKET, Port, Painted
  • 9
    17-893709 PIN
    PIN
  • 10
    24-830899 SPRING, Tension
    SPRING, Tension
  • 11
    8M0088801 LEVER ASSY, Tilt Lock
    LEVER ASSY, Tilt Lock
  • 12
    8M0062746 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 13
    10-4000325 SCREW, (M6 x 8)
    SCREW, (M6 x 8)
  • 14
    12-8M0084612 C-WASHER
    C-WASHER
  • 15
    54-8M0051768 CLAMP, Cable .375
    CLAMP, Cable .375
  • 16
    1400-8M0061365 BRACKET, Transom STBD, paint
    BRACKET, Transom STBD, paint
  • 17
    10-8M0071543 SCREW, (.500-20 x 5.00 HX HD)
    SCREW, (.500-20 x 5.00 HX HD)
  • 18
    12-54012 WASHER, (.530 x .870 x .105) Stainless Steel
    WASHER, (.530 x .870 x .105) Stainless Steel
  • 19
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 20
    11-82671117 NUT, (.500-20)
    NUT, (.500-20)
  • 21
    12-8M0057591 WASHER, Thrust
    WASHER, Thrust
  • 22
    10-8M0041013 SCREW, M8X1.25 HEX HD
    SCREW, M8X1.25 HEX HD
  • 23
    12-8M0054606 WASHER, Flat 31.69 OD X 9.01 ID X 3.048 THK
    WASHER, Flat 31.69 OD X 9.01 ID X 3.048 THK
  • 24
    8M0050046 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 25
    10-4010610 SCREW, (M6 x 10) Stainless Steel
    SCREW, (M6 x 10) Stainless Steel
  • 26
    11-826164 NUT, (.875-14)
    NUT, (.875-14)
  • 27
    8M0072610 TILT LOCK LEVER KIT-F150, (L) (XL) (CXL)
    TILT LOCK LEVER KIT-F150, (L) (XL) (CXL)
  • 28
    23-8M0054598 BEARING, Tilt Lock .05 inch ID FLG
    BEARING, Tilt Lock .05 inch ID FLG
  • 29
    17-8M0021914 PIN , (.125 x 30 mm)
    PIN , (.125 x 30 mm)
  • 30
    8M0007470 KNOB
    KNOB
  • 31
    8M0059532 TRIM LIMIT MODULE
    TRIM LIMIT MODULE
  • 32
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 33
    13541 PLUG, Male
    PLUG, Male
  • 34
    23-8M0059091 BEARING, Tilt pin 26.38IDX42LG
    BEARING, Tilt pin 26.38IDX42LG
